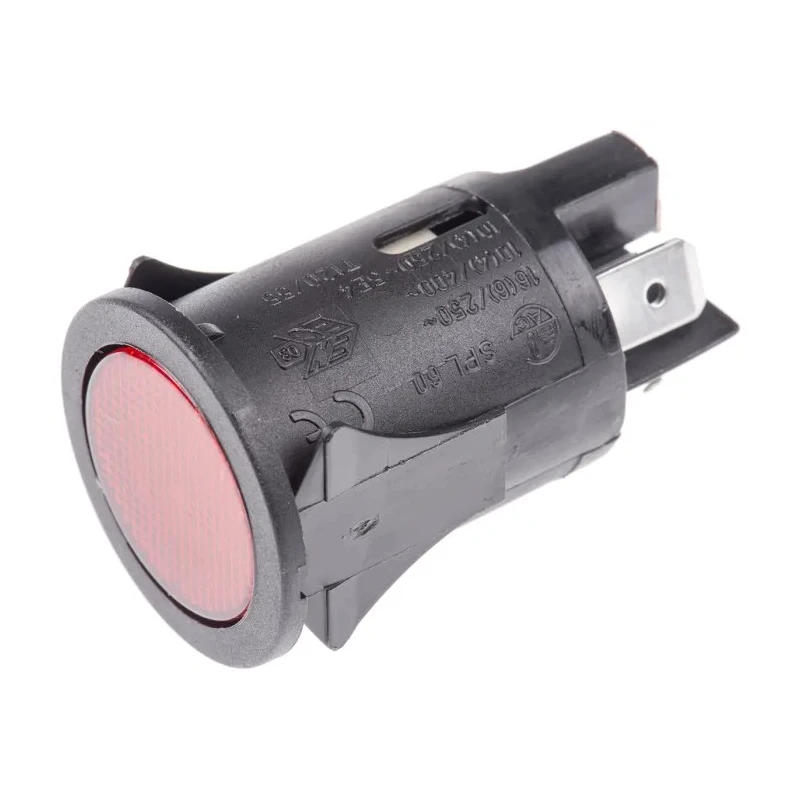

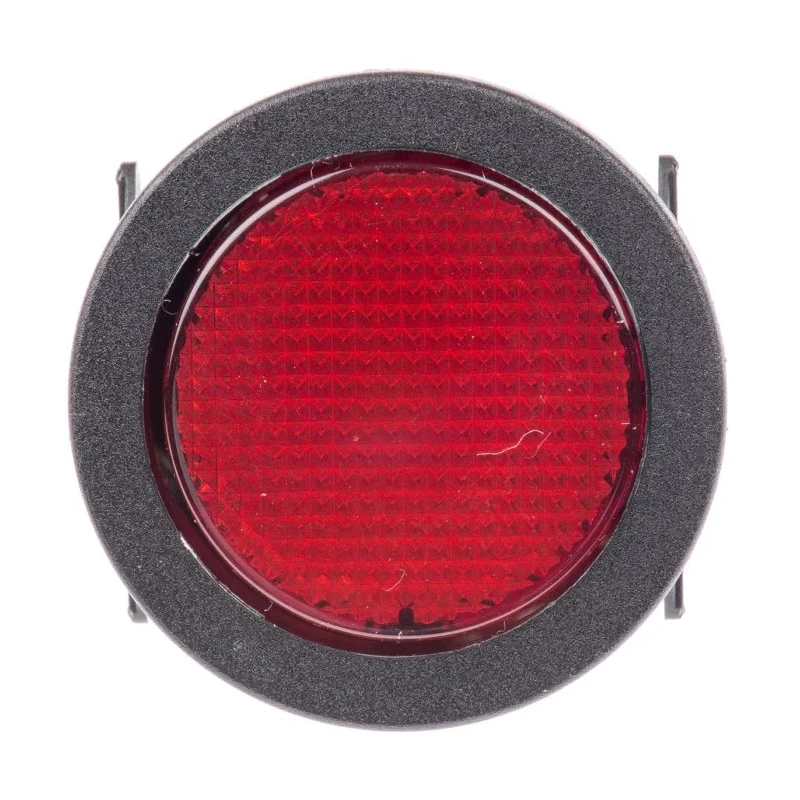

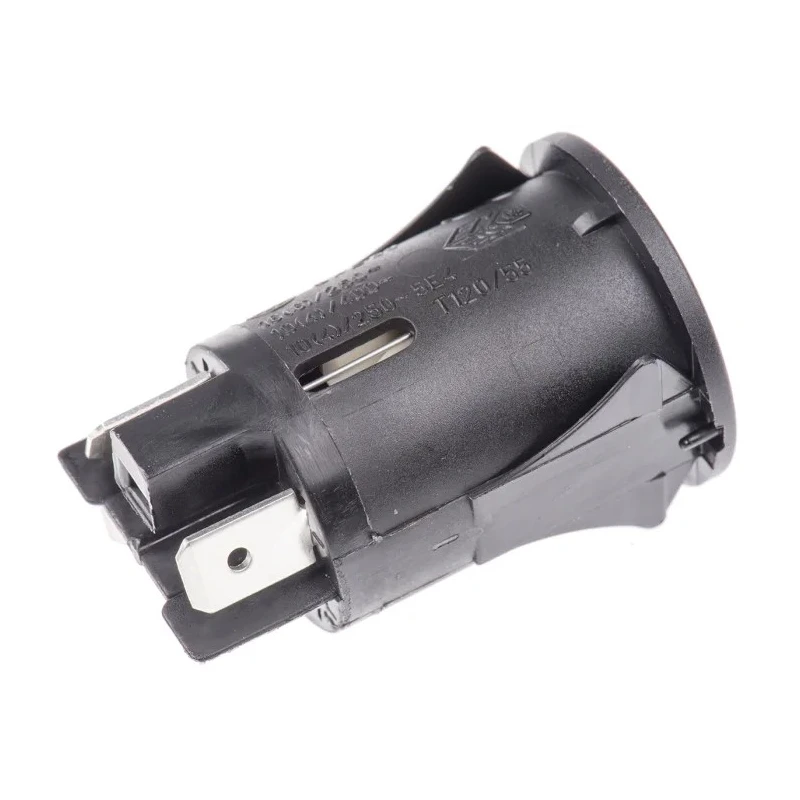

RS PRO Illuminated Push Button Switch Latching Panel Mount DPST Red LED IP40 IP67 250 V AC 528-7842

RS PRO 528-7842 Illuminated Push Button Switch is a latching type switch designed for panel mounting applications requiring a 25 mm cutout. This push button switch includes a dual pole single throw (DPST) contact configuration with a red LED indicator for visual feedback and is rated for 250 V AC operation. Its construction from self-extinguishing thermoplastic material rated UL94V-2 ensures safety and durability.

The switch operates with a mechanical life exceeding 105 operations and supports a maximum contact current rating of 16A at 250 V AC (approved to 10A at 250 V). The design allows mounting on panels up to 4.5 mm thick and has a depth behind the panel of 34 mm, making it suitable for various industrial and electrical applications.

Featuring IP40 and IP67 ratings, this switch offers protection against intrusion of solid objects and water, making it reliable for automation, electrical panels, HVAC control systems, and manufacturing equipment. Its red LED illumination enhances operator awareness during system operation and status indication.

Compliant with CSA and UL standards, the RS PRO 528-7842 offers assured safety and quality for rigorous electrical and industrial use cases. The push button actuator style is button-shaped and flush illuminated providing a sleek, functional operator interface.

This push button switch features a latching operation suitable for secure switching applications. It has a panel cutout size of 25 mm and mounts directly to the panel. The switch is illuminated with a red LED for clear visual indication.

It is rated for a contact current of 16A at 250 V AC and supports a switch configuration of On-Off. Complies with CSA and UL safety standards ensuring reliable performance. The switch body is constructed from self-extinguishing thermoplastic UL94V-2 material.

Designed to withstand operating temperatures up to 120°C for demanding environments. Offers mechanical life exceeding 105 operations ensuring durability and longevity. Protection ratings cover IP40 and IP67, providing resistance against dust and water ingress.

This illuminated push button switch is ideal for industrial automation, manufacturing machines, electrical distribution panels, and HVAC control systems. Its robust construction and certified quality support commercial and industrial environments requiring reliable operator switch functions.
