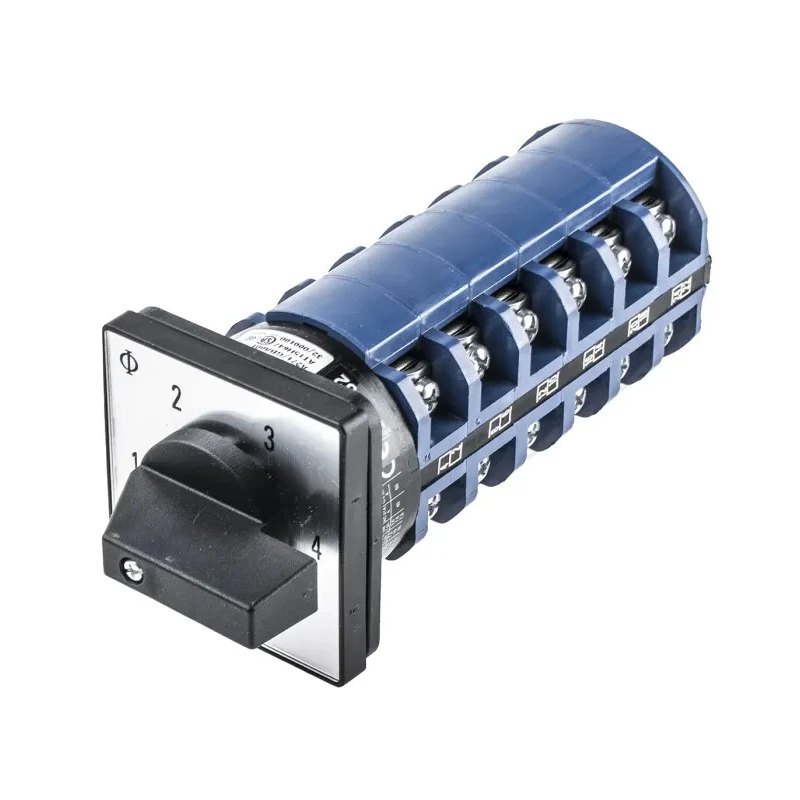

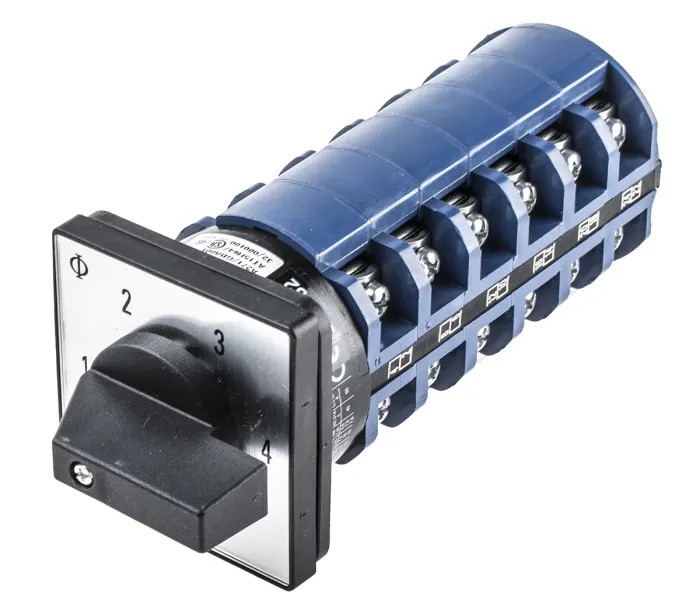

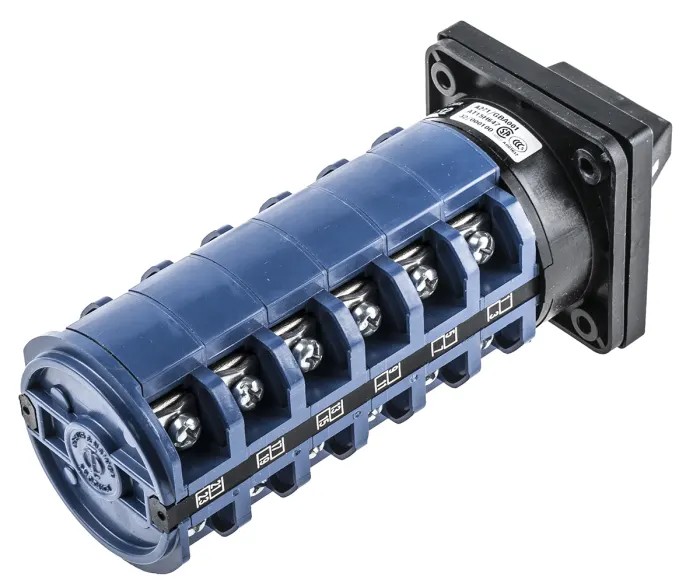

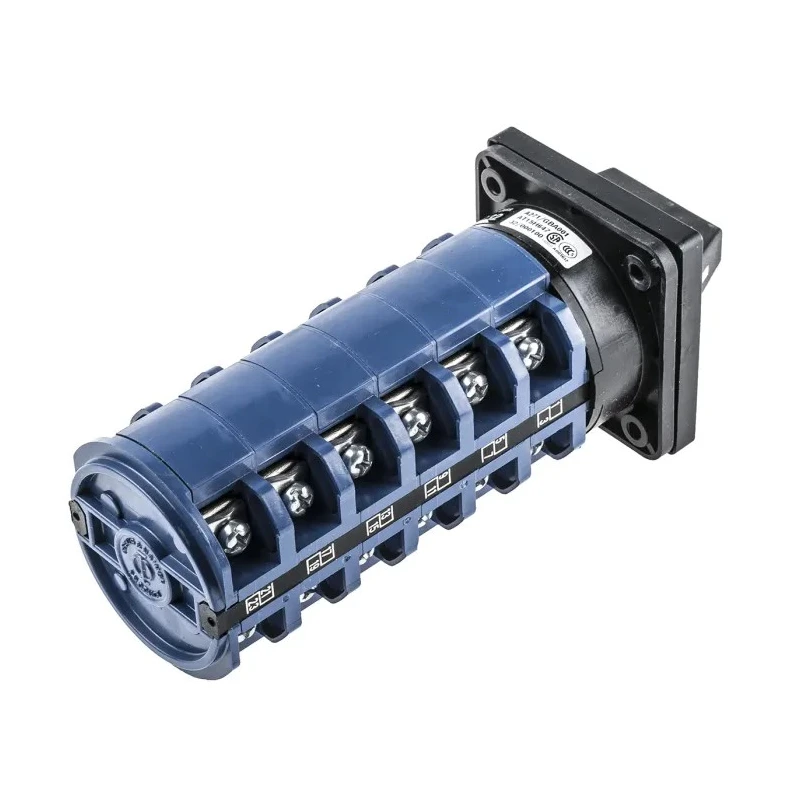

Kraus & Naimer 4 Position, 3 Pole, Knob Actuator Cam Switch 50A 690V Panel Mount C32.A271/GBA001.E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Kraus & Naimer |
| Length | 64mm |
| Model | C32.A271/GBA001.E |
| Depth | 133.3mm |
| IP Rating | IP40 |
| Width | 64mm |
| Mount Type | Panel |
| Maximum Operating Temperature | 55°C |
| Actuator Type | Knob |
| Number of Positions | 4 |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | IEC 60947-3 |
| Mechanical Life | 1000000Operations |
| Contact Voltage | 690V |
| Contact Current | 50A |
| Nominal voltage (all) | 690V |
| Kraus & Naimer 4 Position 32 ABrand | Kraus & Naimer |
Key Features
- The switch features 4 selectable positions for versatile electrical control.
- It has a robust 3 pole configuration suitable for complex switching needs.
- Screw terminal type allows secure electrical connections.
- IP40 rated for protection against solid objects above 1 mm and limited ingress of dust.
- Mechanical life expectancy is 1,000,000 operations ensuring long-term reliability.
- Operates in temperatures from -25°C to +55°C for diverse environments.

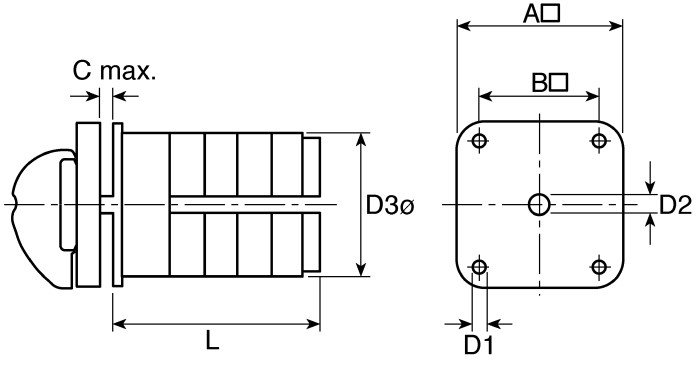

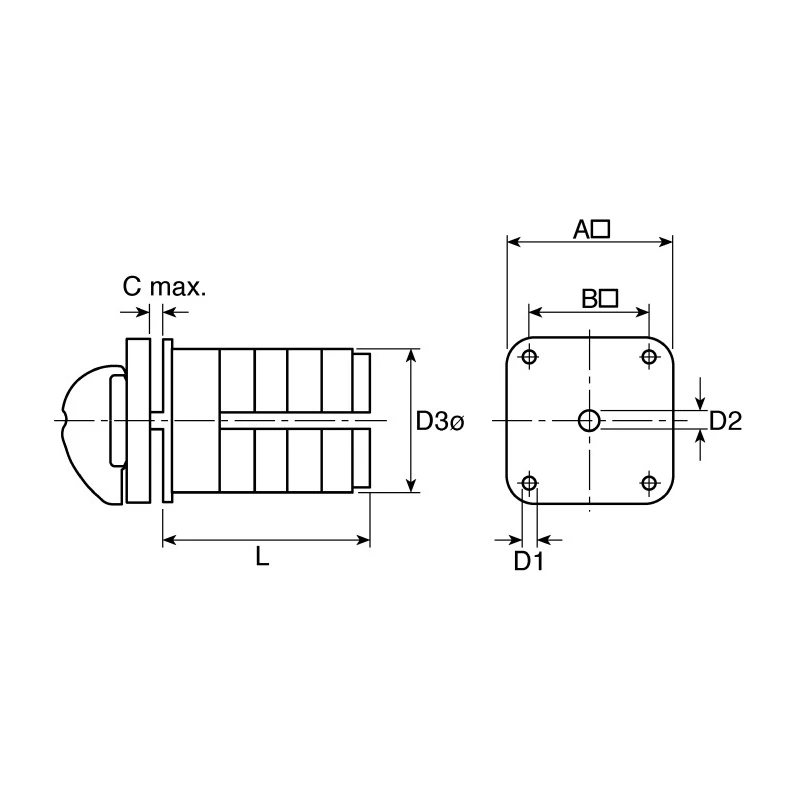

- Compact dimensions of 64 mm width, 64 mm length, and 133.3 mm depth ensure easy panel integration.
- Complies with IEC 60947-3 standard guaranteeing industrial-grade performance.
Product Description
Kraus & Naimer C32.A271/GBA001.E 4 Position, 3 Pole Cam Switch with Knob Actuator is a high quality electrical switch designed for panel mounting applications. Rated at 50 A current and 690 V contact voltage, this switch facilitates effective multi-step control in industrial electrical systems.
It provides four distinct positions for operation and uses a reliable screw terminal connection. The knob actuator allows intuitive and precise manual control. The switch carries an IP40 rating, offering protection against solid objects larger than 1 mm and ingress of limited dust, making it suitable for indoor industrial environments.
The compact size with uniform mounting dimensions (64 mm width and length, 133.3 mm depth) enables easy integration into panels. Suitable for use across temperature ranges from -25°C to +55°C, it is engineered for reliable functioning in various atmospheric conditions.
This Cam Switch complies with IEC 60947-3 standards, ensuring operational safety and performance consistency. Mechanical life is rated at 1,000,000 operations, providing extended durability for demanding industrial applications.
Typical use cases include industrial automation control panels, machinery control systems, HVAC controls, and other electrical equipment requiring robust multi-position switching capabilities.
The switch features 4 selectable positions for versatile electrical control. It has a robust 3 pole configuration suitable for complex switching needs. Screw terminal type allows secure electrical connections. IP40 rated for protection against solid objects above 1 mm and limited ingress of dust.
Mechanical life expectancy is 1,000,000 operations ensuring long-term reliability. Operates in temperatures from -25°C to +55°C for diverse environments. Compact dimensions of 64 mm width, 64 mm length, and 133.3 mm depth ensure easy panel integration.
Complies with IEC 60947-3 standard guaranteeing industrial-grade performance. Nominal voltage of 690 V to support high voltage control applications. Explore more high-quality electrical switches and automation components on EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This cam switch has a contact current rating of 50 A.
The maximum contact voltage for this model is 690 V.
It features 4 selectable positions for versatile electrical control.
This switch uses a knob actuator for manual control.
The cam switch has an IP40 rating, providing protection against solid objects larger than 1 mm and limited dust ingress.
The dimensions are 64 mm in width, 64 mm in length, and 133.3 mm in depth.
The mechanical life expectancy is rated at 1,000,000 operations.
It operates within a temperature range of -25°C to +55°C.
It uses a screw terminal type for secure electrical connections.
Yes, it complies with the IEC 60947-3 standard, ensuring operational safety and performance consistency.
This switch is designed for panel mounting applications.
The cam switch is manufactured in India.
