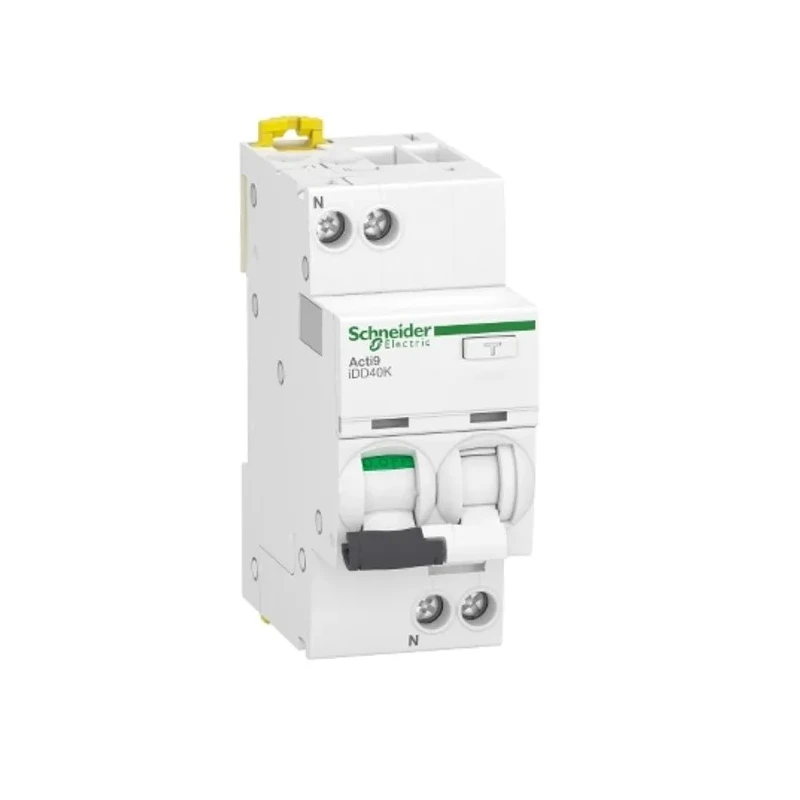

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 25A Current Rating, 1-Pole, 300 mA A9DK5625

Schneider Electric A9DK5625 is a residual current circuit breaker with integrated overload protection designed for reliable electrical safety in distribution and industrial applications. It combines thermal-magnetic trip technology with instantaneous earth leakage protection to prevent electrical hazards effectively.

Featuring a 25A current rating and a 1-pole configuration, this device protects circuits against overloads and short circuits while detecting earth leakage currents with a trip sensitivity of 300 mA. The toggle switch actuator offers clear ON/OFF and trip status indicators, facilitating maintenance and operation.

The breaker is designed to mount on standard DIN rails, providing ease of installation in electrical panels. Its compact build with dimensions 36mm (W) × 85mm (H) × 73mm (D) allows efficient use of panel space. Rated for 230V AC operation and a breaking capacity of 4.5 kA, it meets industrial requirements for robust electrical protection.

Manufactured in Spain, this Schneider Electric product complies with international standards including RoHS and EN/IEC 60947-2, ensuring adherence to high safety and quality norms. It supports an operating ambient temperature range from -5°C to 60°C and has an electrical durability of 20,000 cycles, offering long-lasting performance.

Its instantaneous earth leakage protection utilizes thermal magnetic tripping, ideal for residential, commercial, and industrial applications where precise and timely circuit interruption is critical to prevent electrical accidents.

Additional features include a padlockable mechanism for enhanced security and it is classified under Schneider Green premium products emphasizing sustainability and energy efficiency.

The device features a thermal-magnetic tripping mechanism for precise overload and short circuit protection. It is designed for DIN rail mounting, enabling convenient installation and integration. Rated operational voltage is 230V AC, suitable for typical electrical circuits.

The breaker has a breaking capacity of 4.5 kA ensuring reliable disconnection under fault conditions. Toggle switch actuator provides easy ON/OFF control with trip indication for fault diagnostics. Compact dimensions of 36mm width, 85mm height, and 73mm depth optimize space usage in electrical panels.

Earth leakage protection type is AC with 300 mA trip sensitivity complying with safety standards. Compliant with RoHS and EN/IEC 60947-2 standards for quality and environmental safety. Product is manufactured in Spain and classified under Schneider Green premium class.

This Residual Current Circuit Breaker is ideal for distribution boards, electrical safety enhancement in residential buildings, industrial automation systems, and commercial electrical installations. It ensures circuit protection against overloads, short circuits, and earth faults, thus enhancing overall electrical system reliability.
