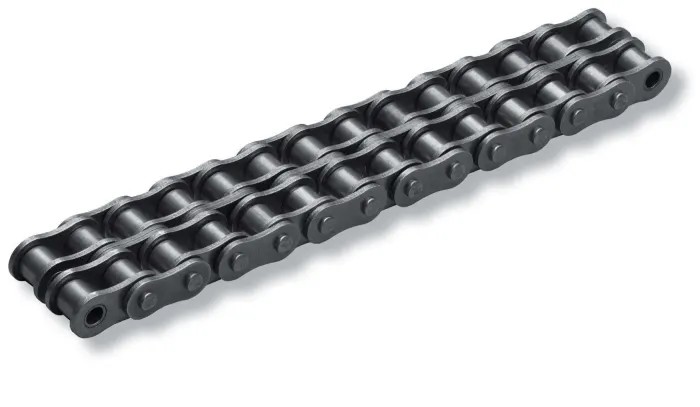

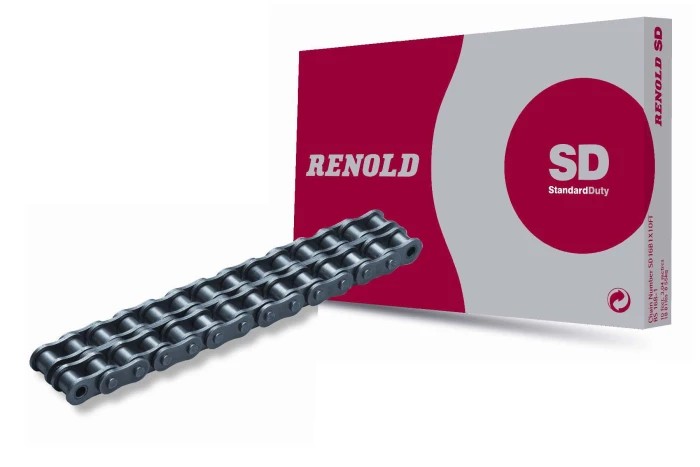

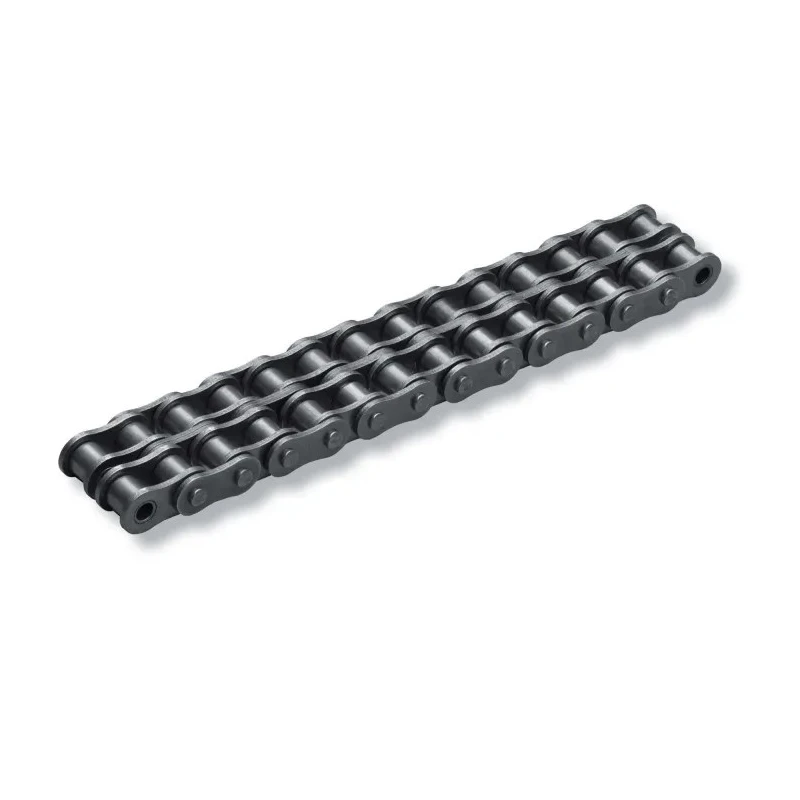

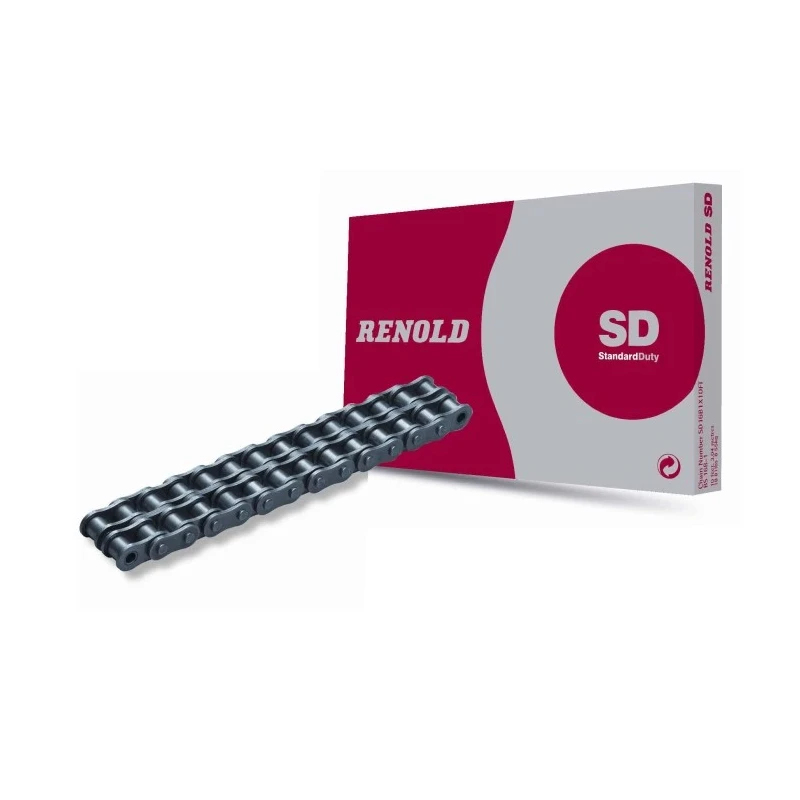

Renold 08B-2 Duplex Steel Roller Chain 5 m Length, 31 mm Pin Length, European BS Standard SD08B

Renold SD08B 08B-2 steel roller chain offers a reliable solution for standard duty mechanical power transmission applications. This duplex chain measures 5 meters in length with a pitch of 12.7 mm, ideal for a variety of industrial uses where durability and precision are critical. Manufactured from robust steel, the chain meets European BS standards and conforms to ISO 606 and DIN 8187 chain specifications, ensuring excellent resistance to wear and long operational life.

The chain has a pin length of 31 mm and a roller diameter of 8.51 mm which facilitate smooth and efficient motion transfer in conveyor systems, machinery, and power transmission drives. With a plate height of 11.8 mm and a width between the inner link plates of 7.75 mm, it maintains optimal strength and flexibility under load.

Weighing 1.3 kg per meter, it offers a balanced weight-to-strength ratio suited for industrial setups. The chain’s European BS standard compliance assures compatibility with various industrial equipment designs. This product is manufactured in China under strict quality controls.

Renold 08B-2 roller chain is widely used in industrial, manufacturing, material handling, agricultural, and mechanical power transmission environments. Its duplex design enhances wear resistance due to the increased bearing surface area offered by the chain links' large pin diameter.

The roller chain features a pitch size of 12.7 mm for standard applications. Made from high-grade steel for durability and strength. Chain length is 5 meters to suit diverse installation requirements. Pin length of 31 mm ensures robust articulation.

Roller diameter stands at 8.51 mm for smooth operation. Plate height measures 11.8 mm for enhanced structural integrity. Width between roller link plates is 7.75 mm optimizing link movement. Chain weight is 1.3 kg per meter balancing strength and handling.

Conforms to ISO 606 and DIN 8187 standards. Perfect for use in industrial manufacturing and material handling. Explore the extensive range of Roller Chains by Renold on EnvMart for your mechanical power transmission requirements.
