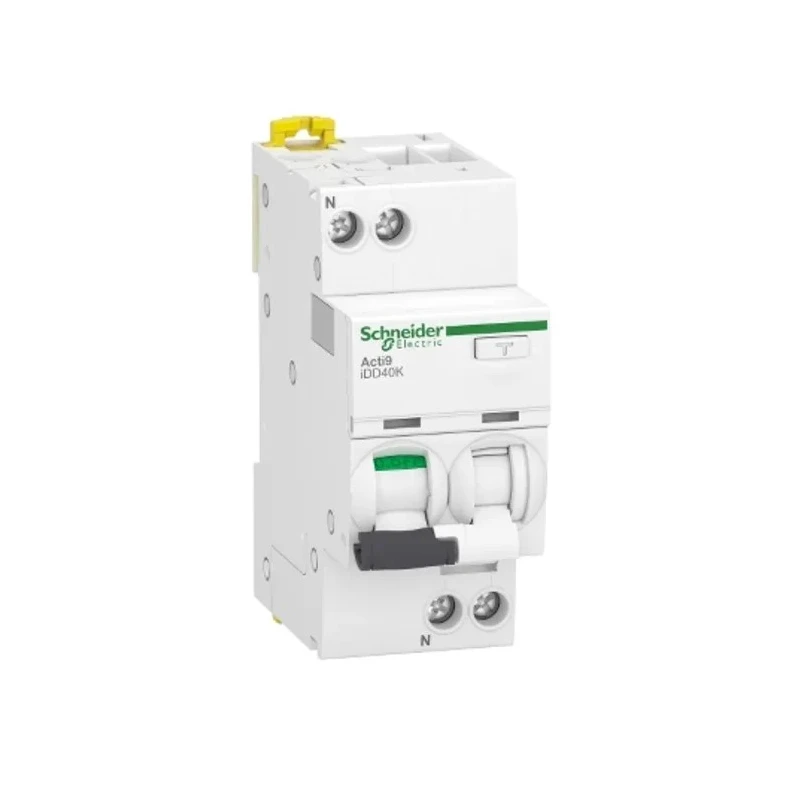

Schneider Electric Residual Current Circuit Breaker with Overload Protection 25A 1-Pole 30 mA Trip A9DK1625

Schneider Electric A9DK1625 Residual Current Circuit Breaker with Overload Protection is engineered to provide superior electrical safety by combining residual current detection with overload protection in a single compact device. This RCBO is designed for demanding electrical distribution systems, especially in residential and commercial installations that require highly reliable circuit protection.

Operating at a rated current of 25A with a single pole configuration, it swiftly detects earth leakage currents with a trip sensitivity of 30 mA, thereby preventing electric shocks and fire hazards. The breaker utilizes a thermal magnetic tripping mechanism with Type C characteristics enabling rapid response to overloads and short circuits, protecting wiring and connected equipment.

Mountable on standard DIN rails, the device measures 85 mm in height, 36 mm in width, and 73 mm in depth, facilitating space-efficient panel layouts. Its toggle switch actuator enables easy manual switching and clear indication of breaker status with ON/OFF and trip indication functions. The device has an electrical durability rated for 20,000 cycles and an impulse withstand voltage of 4 kV, reflecting its robust construction.

Compliant with international standards such as RoHS and EN/IEC 60947-2, this circuit breaker is manufactured in Spain under strict quality control, ensuring long-lasting performance and safety. It is padlockable for added security against unauthorized operation and is recognized as a Schneider Green premium class product for sustainability.

Provides trip sensitivity of 30 mA for earth leakage protection. Features thermal magnetic tripping mechanism with Type C characteristics. Compatible with DIN rail mounting for easy installation. Designed for 230V AC rated voltage applications.

Compact form factor with height 85mm, width 36mm, and depth 73mm. Breaking capacity of 4.5 kA ensures robust short circuit protection. Equipped with toggle switch reset actuator for user-friendly operation. Certified to RoHS and EN/IEC 60947-2 standards ensuring compliance and safety.

Ideal for residential and distribution overcurrent protection applications. Manufactured in Spain with premium quality standards.

This circuit breaker is well-suited for industrial, electrical distribution, residential, and commercial electrical protection systems. It ensures safety from electric shock and overload conditions, enhancing reliability and compliance with electrical standards.
