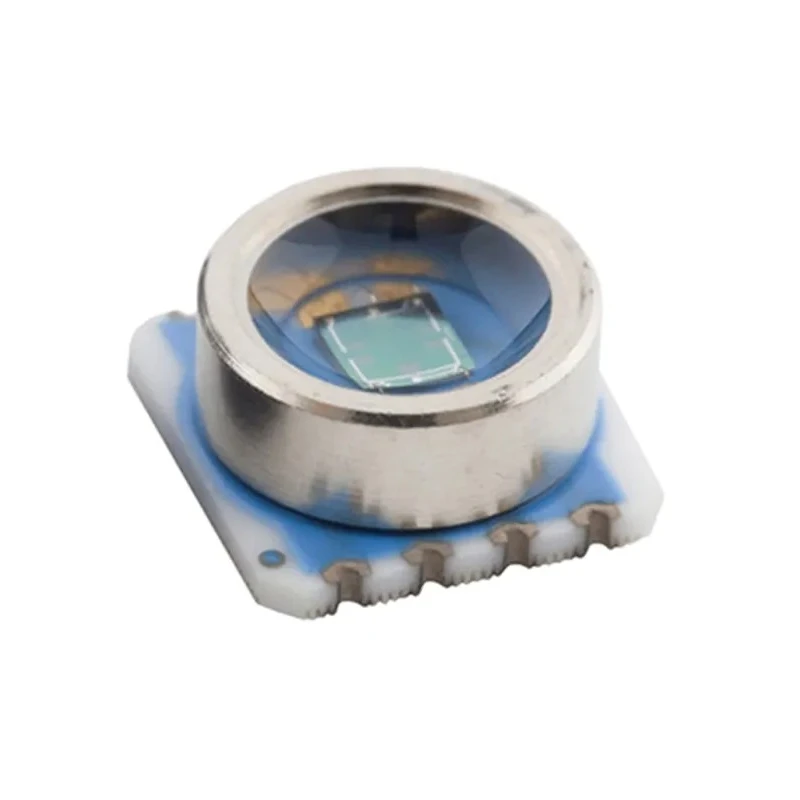

TE Connectivity Miniature SMD Absolute Pressure Sensor 12V 30bar 6.2mm x 6.2mm MS54XX 325412000-00
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Maximum Operating Pressure | 12 bar |
| Height | 6.2mm |
| Length | 6.2mm |
| Sensor Type | Absolute Pressure Sensor |
| Mount Type | Surface |
| Series | MS54XX |
| Maximum Operating Temperature | 125°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Typical Sensitivity | 12.5mV/kPa |
| Standards/Approvals | ISO 2281 |
| Maximum Output Voltage | 5V |
| Pin Count | 8 |
| Maximum Supply Voltage | 20V |
| Minimum Output Voltage | 0mV |
| Minimum Operating Pressure | 0bar |
| Maximum Overload Pressure | 30bar |
Key Features
- Compact 6.2mm x 6.2mm surface mount design suitable for PCB assembly.
- Measures absolute pressure accurately up to 12 bar operating pressure.
- Provides a typical sensitivity of 12.5mV/kPa for detailed pressure measurement.
- Operating temperature range from -40°C to 125°C ensures performance in harsh environments.
- Maximum supply voltage of 20V enables versatile power input options.
- High maximum overload pressure of 30 bar for safety and durability.
- Equipped with 8 pins for stable electrical connection and integration.
- Complies with ISO 2281 standards ensuring quality and reliability.
Product Description
TE Connectivity 325412000-00 MS54XX Series Miniature SMD Absolute Pressure Sensor features a compact 6.2mm by 6.2mm ceramic package with silicon micromachined pressure die. Designed for surface mount PCB integration, it offers high reliability and low offset drift over a wide temperature range from -40°C to 125°C. The sensor provides an output voltage linearly proportional to pressure, with a typical sensitivity of 12.5mV/kPa and maximum operating pressure of 12 bar, supporting maximum overload of 30 bar.
This pressure sensor is suitable for industrial, automotive, and consumer electronics applications such as altitude measurement, barometers, engine management systems, and waterproof devices.
Featuring 8 electrical pins and gel protection against humidity and water ingress, the MS54XX series ensures robust performance and long service life. It operates at a maximum supply voltage of 20V and delivers an output voltage up to 5V, designed for reliable measurement in demanding environments.
Manufactured following ISO 2281 standards, this sensor series meets stringent quality and durability requirements. Its miniature size and surface mount format facilitate automated assembly and compact design implementations.
Compact 6.2mm x 6.2mm miniature surface mount package. Absolute pressure sensing with high linearity and low drift. Wide operating temperature range: -40°C to 125°C. Maximum operating pressure of 12 bar, overload up to 30 bar.
Typical sensitivity of 12.5mV/kPa for precise measurement. Gel protection against humidity and water intrusion. 8 pins for stable connection. Compliance with ISO 2281 standards. Applications include altimeters, vario meters, barometers, engine management, and waterproof devices.
Explore a wide range of pressure sensing solutions and electronic components on EnvMart for industrial and commercial applications.
Explore more products in our Pressure Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pressure sensor is 12 bar, with a maximum overload pressure of 30 bar.
It has a typical sensitivity of 12.5mV/kPa for precise pressure measurement.
The operating temperature range is from -40°C to 125°C, allowing it to perform in harsh environments.
This model is an absolute pressure sensor, designed for accurate pressure measurement.
It is equipped with 8 pins for stable electrical connection and integration.
The maximum supply voltage for this sensor is 20V, providing versatile power input options.
The sensor has a compact size of 6.2mm x 6.2mm, making it suitable for surface mount applications.
It complies with ISO 2281 standards, ensuring quality and reliability in its performance.
This sensor is suitable for applications such as altitude measurement, barometers, and engine management systems.
The output voltage can range from 0mV to a maximum of 5V, which is linearly proportional to the pressure measured.
This model supports surface mount installation, facilitating automated assembly.
Yes, it features gel protection against humidity and water ingress, enhancing its reliability in various environments.
