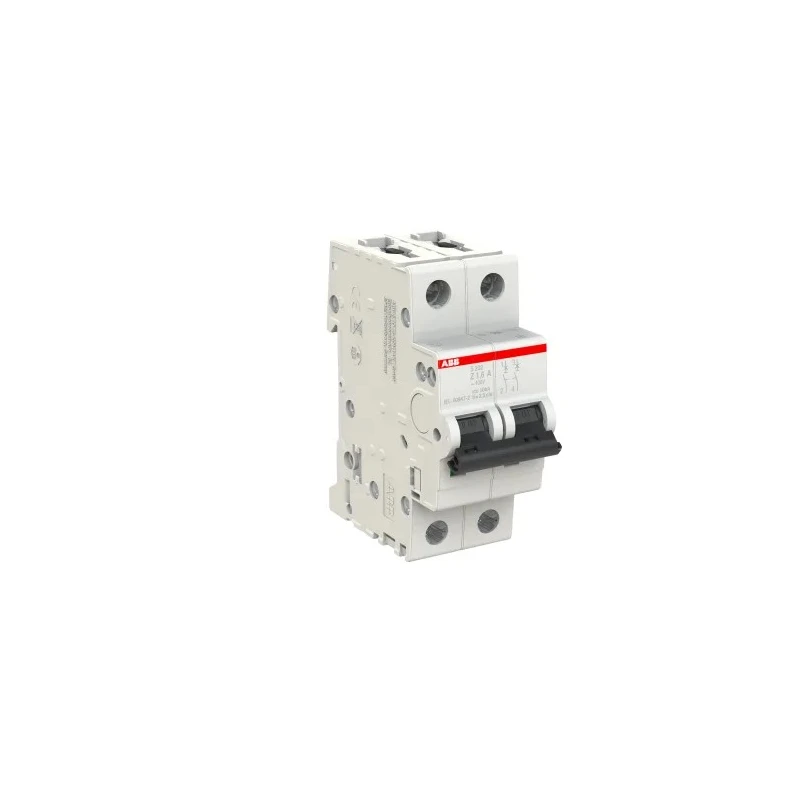

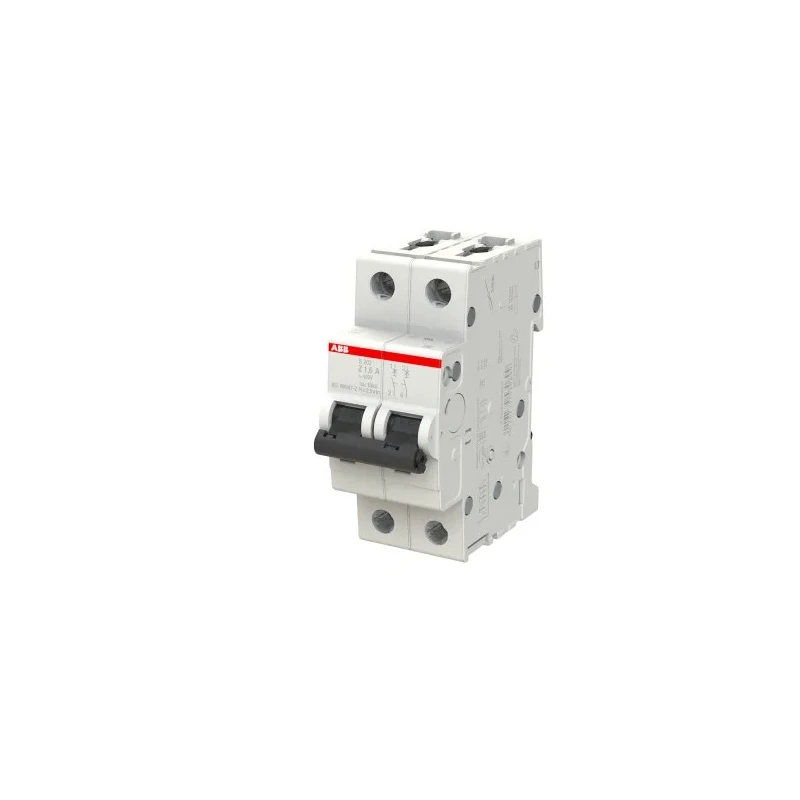

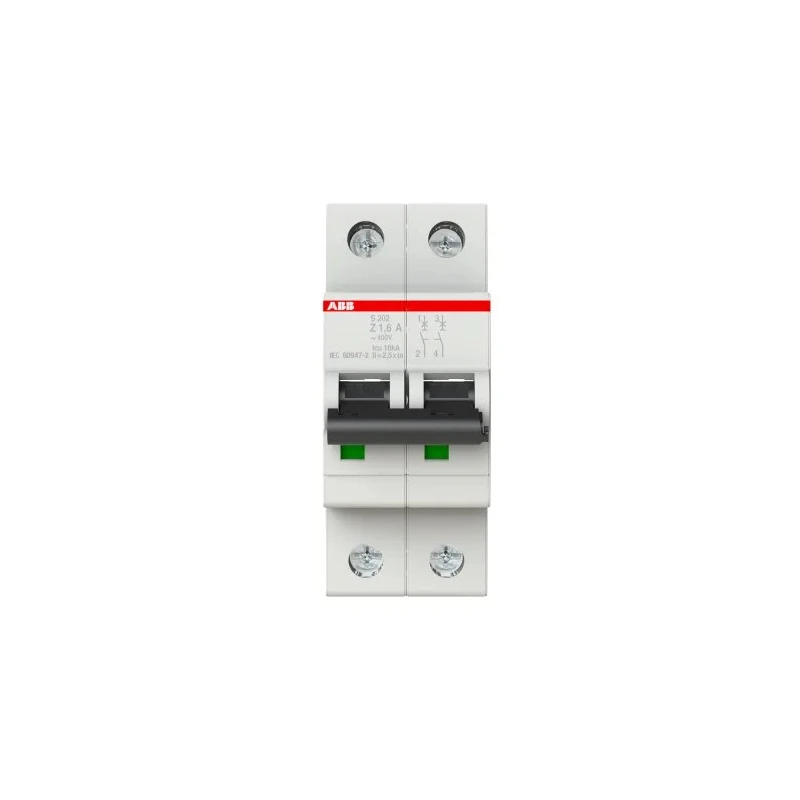

ABB System Pro M Compact S200 Miniature Circuit Breaker, 2-Pole, 1.6A, Type Z, 400V AC 2CDS252001R0258 S202 Z 1.6A - 10 KA
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS252001R0258 S202 Z 1.6A - 10 KA |
| Depth | 69mm |
| IP Rating | IP20, IP40 |
| Width | 35mm |
| Mount Type | DIN Rail |
| Current Rating | 1.6A |
| Series | S200 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 2 |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type Z |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Thermomagnetic, Electromagnetic |
| Reset Actuator Type | Toggle Switch |
Key Features
- Rated current of 1.6A provides accurate protection for low-load electrical circuits.
- Type Z tripping characteristic mitigates nuisance trips caused by inrush currents.
- 6 kA breaking capacity safely limits fault current energy during short circuits.
- Screw terminals ensure secure and reliable conductor connections.
- DIN rail mountable design enables fast and flexible panel installation or retrofit.
- Toggle switch actuator provides a clear visual indication and straightforward manual reset.
- IP20 and IP40 enclosure ratings allow for durable indoor panel protection.
- Constructed and tested to IEC/EN 60898-1 and IEC/EN 60947-2 standards.
Product Description
ABB 2CDS252001R0258 S202 Z 1.6A - 10 KA Miniature Circuit Breaker from the System Pro M Compact S200 series provides robust overcurrent protection for 2-pole, low-voltage industrial and commercial applications. This miniature circuit breaker is engineered to ensure safety and reliability within control systems, distribution panels, and sensor feed circuits.
Designed for easy installation on standard 35mm DIN rails, it features screw-type terminals that guarantee secure electrical connections. The device interrupts fault currents swiftly, using combined thermomagnetic and electromagnetic tripping mechanisms that protect circuits from overloads and short circuits while reducing nuisance tripping caused by motor or transformer inrush currents via the Type Z trip profile.
This miniature circuit breaker is rated for AC systems operating at up to 400 V and offers a high breaking capacity of 6 kA to safely handle short circuit energies. Its IP20 and IP40 enclosure ratings permit its use inside indoor electrical panels with appropriate protection against accidental contact and ingress.
1.6A rated current ensuring circuit-specific protection. Type Z tripping reduces unnecessary power interruptions due to inrush currents. 6 kA breaking capacity accommodates high fault conditions. Toggle switch reset for visible switch position and easy operation.
IEC/EN 60898-1 and IEC/EN 60947-2 certifications ensure compliance with international safety standards. Compact size with dimensions 88mm (height) x 35mm (width) x 69mm (depth) for space-saving panel layouts. Constructed for durability with features supporting sustainability including designed for disassembly.
Suitable protection for control, automation circuitry, branch-distribution panels, motor starters, instrumentation, and retrofits.
Manufactured in Germany, this ABB Miniature Circuit Breaker delivers dependable performance, making it a trusted choice for industrial, commercial, manufacturing, and electrical system installations.
Explore the extensive range of ABB electrical protection devices available on EnvMart for all your circuit safety needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated current of this miniature circuit breaker is 1.6A, providing accurate protection for low-load electrical circuits.
It has a breaking capacity of 6 kA, which safely limits fault current energy during short circuits.
This circuit breaker features a Type Z tripping characteristic, which mitigates nuisance trips caused by inrush currents.
The maximum rated AC voltage for this unit is 400V.
The dimensions of this circuit breaker are 88mm in height, 35mm in width, and 69mm in depth.
It is designed for DIN rail mounting, allowing for fast and flexible installation or retrofit in panels.
This model uses screw-type terminals, ensuring secure and reliable conductor connections.
It is constructed and tested to comply with IEC/EN 60898-1 and IEC/EN 60947-2 standards.
The enclosure ratings are IP20 and IP40, providing protection against accidental contact and ingress in indoor applications.
It features a toggle switch actuator for manual reset, providing a clear visual indication of the switch position.
This miniature circuit breaker is manufactured in Germany.
It is suitable for protection in control systems, distribution panels, sensor feed circuits, and motor starters.
