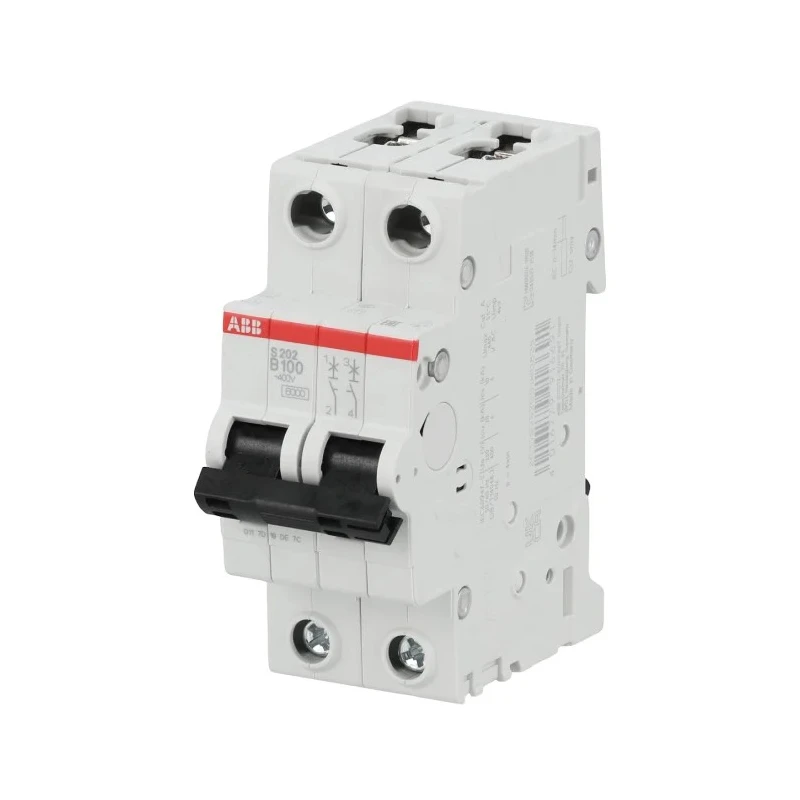

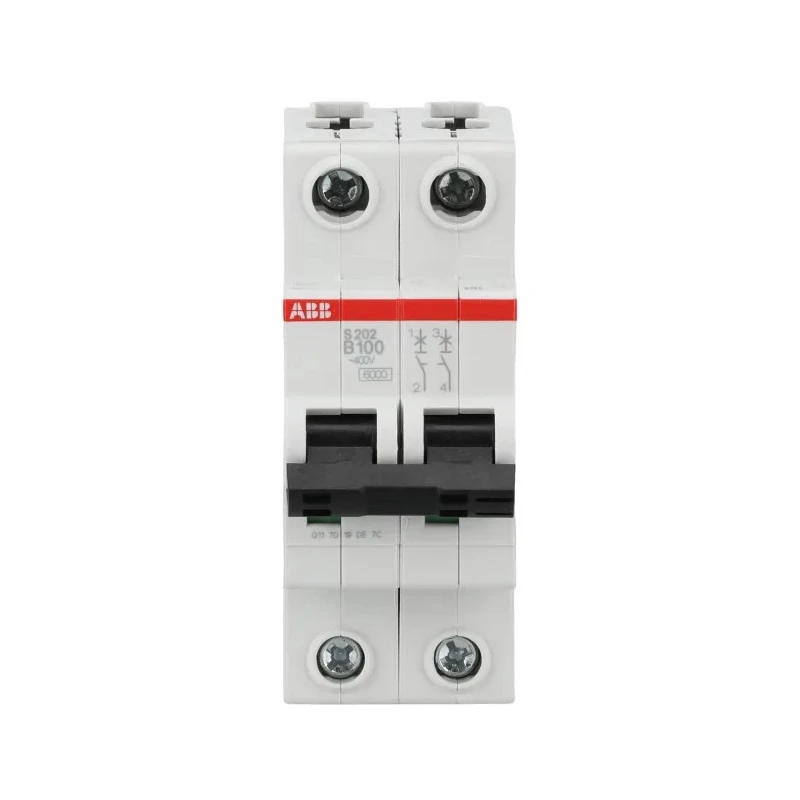

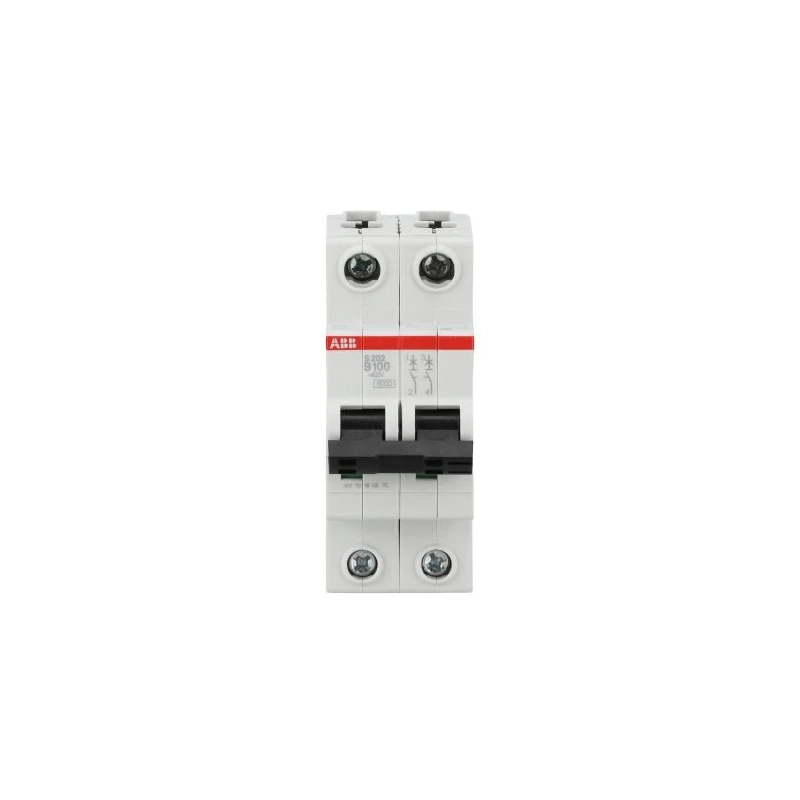

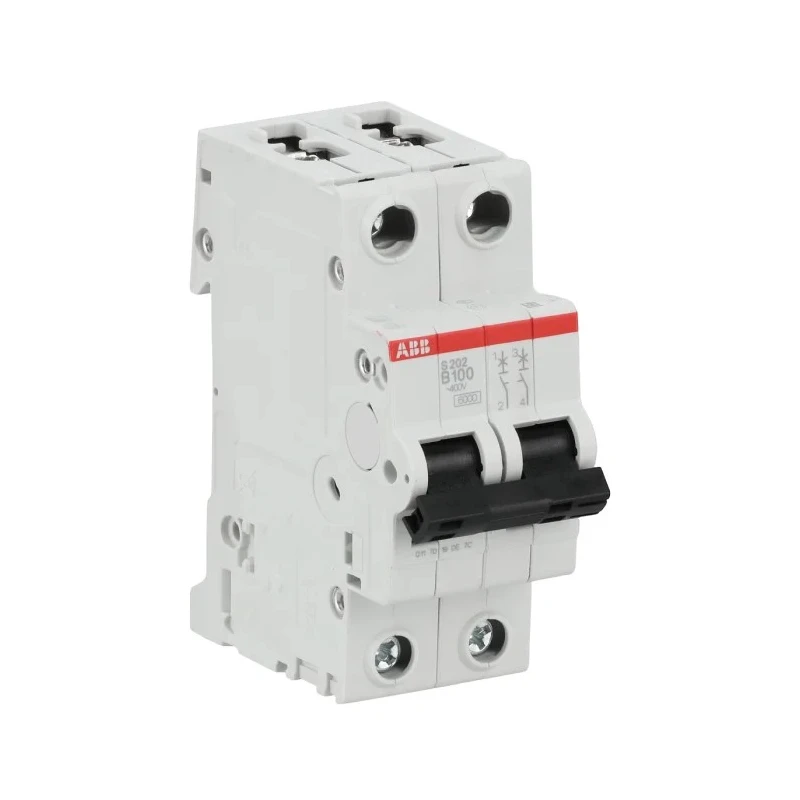

ABB System Pro M Compact S200 Miniature Circuit Breaker, 2-Pole, 100A, Type B, 400V AC, 6 kA 2CDS252001R0825 S202-B100 6kA
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS252001R0825 S202-B100 6kA |
| Depth | 69mm |
| IP Rating | IP40, IP20 |
| Width | 35mm |
| Mount Type | DIN Rail |
| Current Rating | 100A |
| Series | S200 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 2 |
| Standards/Approvals | IEC/EN 60947-2, IEC/EN 60898-1 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type B |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Thermomagnetic, Electromagnetic |
| Reset Actuator Type | Toggle Switch |
Key Features
- Features a 100A current rating for high continuous current handling.
- Uses type B tripping for sensitive protection of resistive loads.
- Provides a 6 kA breaking capacity to limit fault energy exposure.
- Designed for DIN rail mounting with a compact 35mm width.
- Equipped with screw terminals for secure conductor connections.
- Incorporates thermomagnetic and electromagnetic trip mechanisms for overload and short-circuit protection.
- Offers IP40 front and IP20 terminal ingress protection for safety.
- Made in Germany with compliance to IEC/EN 60947-2 and IEC/EN 60898-1 standards.
Product Description
ABB 2CDS252001R0825 S202-B100 6kA Miniature Circuit Breaker from the System Pro M Compact S200 series delivers dependable overcurrent protection for low-voltage distribution systems up to 400V AC. This 2-pole device supports motor-control circuits, industrial automation panels, and control cabinets requiring fast two-pole isolation with high breaking capacity.
The breaker features a thermal-magnetic trip mechanism combining a bimetallic element for gradual overload detection and an electromagnetic trigger for immediate short-circuit interruption, supporting rated currents up to 100A with a breaking capacity of 6 kA. Its type B tripping characteristic ensures sensitive protection tailored for resistive loads such as lighting and heating circuits.
Designed for easy DIN rail installation in standard distribution boards, it occupies a minimal footprint of 35mm width, facilitating compact panel configurations. Screw-type terminals ensure safe and reliable conductor connections, while ingress protection to IP20 at terminals and IP40 at front protects against accidental contact, enhancing safety during operation.
This miniature circuit breaker meets international standards IEC/EN 60947-2 and IEC/EN 60898-1. Manufactured in Germany, it supports retrofit and new installations in industrial, commercial, and residential electrical panels requiring fast and reliable circuit protection.
100A current rating for continuous current handling. Type B tripping characteristic suited for resistive loads. 6 kA breaking capacity to enhance safety and fault interruption. DIN rail mounting with compact 35mm width for space saving.
Screw terminals ensure secure electrical connections. Thermomagnetic and electromagnetic trip mechanism provides dual method protection. IP40 front and IP20 terminal ingress protection for operator safety. Conforms to IEC/EN 60947-2 and IEC/EN 60898-1 standards.
This product is ideal for industrial, automation, electrical distribution, and commercial applications requiring robust and compact circuit protection solutions. Explore more ABB System Pro M Compact S200 Miniature Circuit Breakers and accessories at EnvMart for your electrical panel needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a current rating of 100A, allowing for high continuous current handling.
This model features a breaking capacity of 6 kA, which helps limit fault energy exposure.
It uses a Type B tripping characteristic, which is designed for sensitive protection of resistive loads such as lighting and heating circuits.
The dimensions are 88mm in height, 35mm in width, and 69mm in depth, making it compact for installation.
It is designed for DIN rail mounting, facilitating easy installation in standard distribution boards.
It is equipped with screw terminals, ensuring secure and reliable connections for conductors.
It has an ingress protection rating of IP40 at the front and IP20 at the terminals, enhancing safety during operation.
It complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards, ensuring it meets international safety and performance requirements.
This unit incorporates both thermomagnetic and electromagnetic trip mechanisms for overload and short-circuit protection.
It is suitable for industrial, automation, and electrical distribution applications requiring reliable circuit protection.
This miniature circuit breaker is manufactured in Germany, ensuring adherence to high manufacturing standards.
It belongs to the System Pro M Compact S200 series, designed for dependable overcurrent protection.
