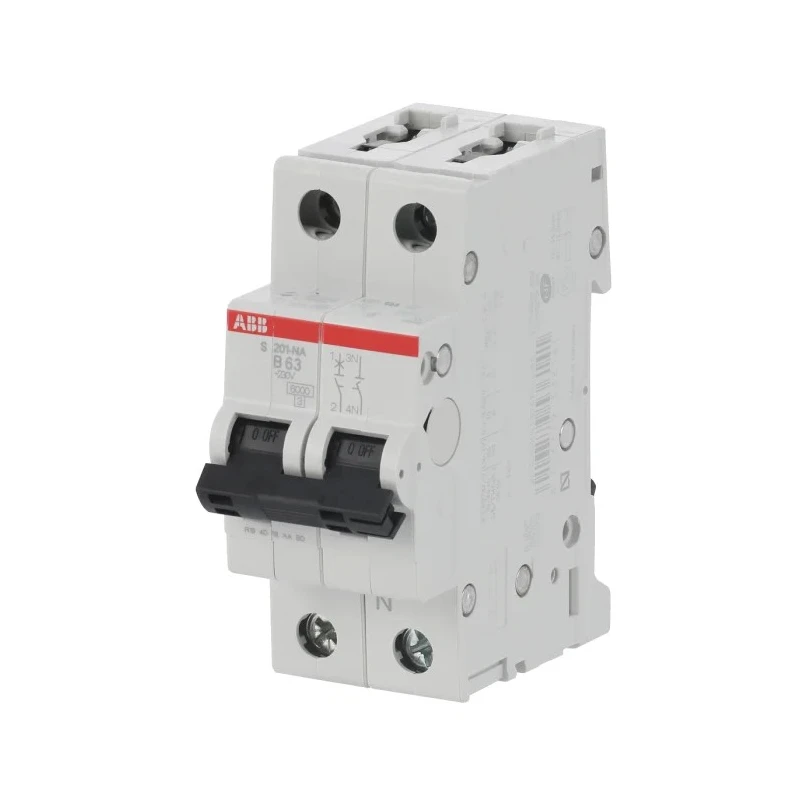

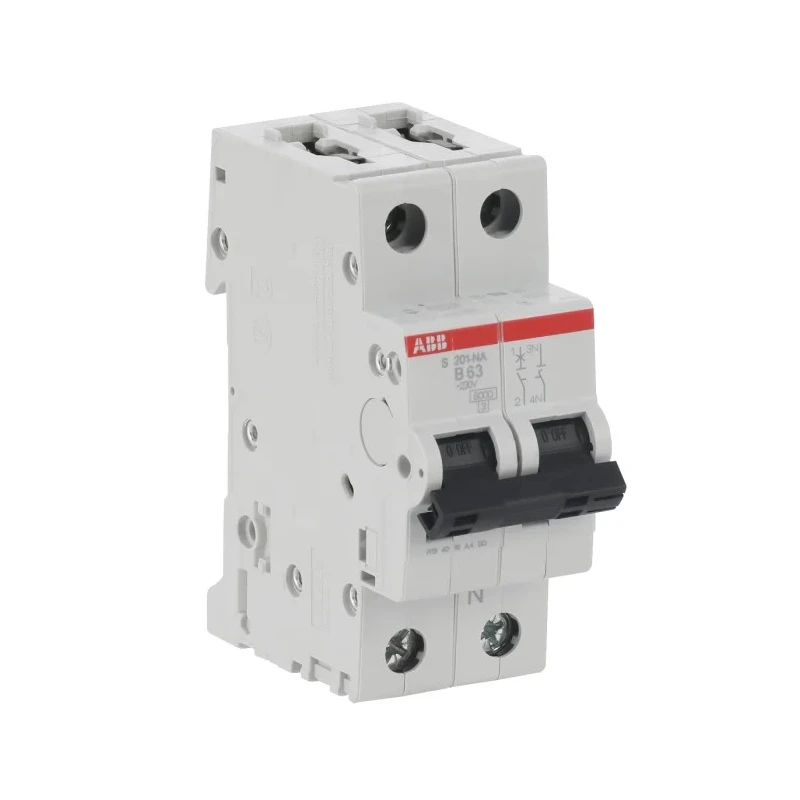

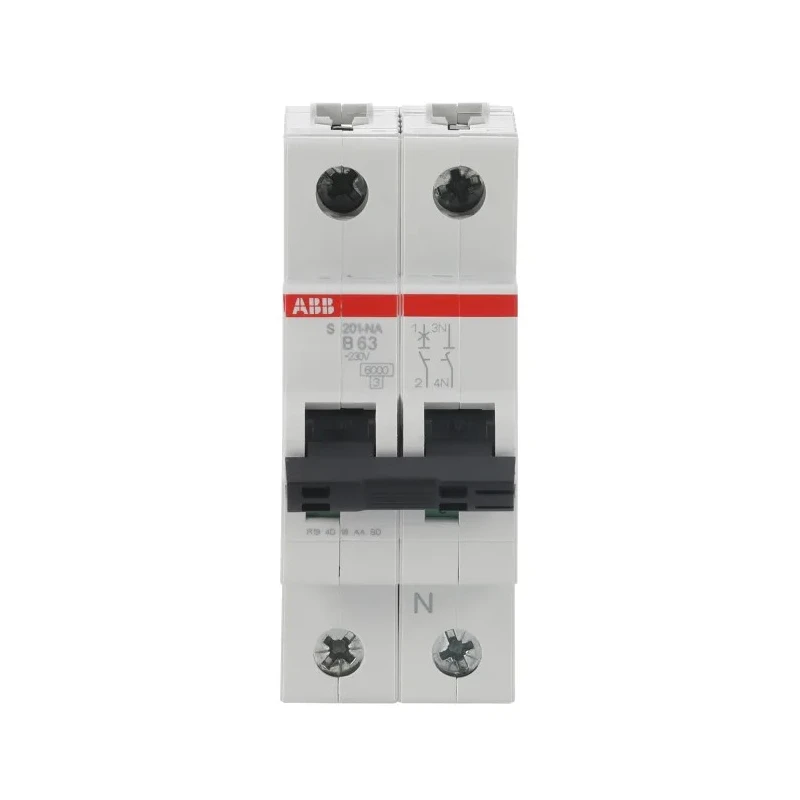

ABB Miniature Circuit Breaker System Pro M Compact S200, 1-Pole, 63A, Type B Thermomagnetic Trip, 400V AC 2CDS251103R0635

ABB 2CDS251103R0635 Miniature Circuit Breaker from the System Pro M Compact S200 series offers comprehensive overload and short-circuit protection for single-phase AC electrical systems operating up to 400V.

This device integrates a thermomagnetic trip mechanism combining delayed thermal operation to manage sustained overloads with instantaneous electromagnetic fault interruption. This design ensures effective and sensitive tripping performance, suitable for protecting motor control circuits with moderate inrush currents, lighting circuits, and general socket circuits.

The MCCB features a sturdy toggle switch reset actuator which provides clear manual operation indication, ensuring quick and safe control of circuit status. Its screw terminal connections support flexible and solid conductors up to 35mm², enabling robust and secure conductor clamping for long-lasting wiring integrity.

Designed for DIN rail mounting (TH35 rail), this circuit breaker can be installed in any orientation to meet diverse panel configurations. It has a compact form factor with dimensions of 88mm height, 35mm width, and 69mm depth, making it suitable for retrofit and new panel installations alike.

The product complies with stringent IEC/EN 60947-2 and IEC/EN 60898-1 electrical safety and performance standards. It carries an IP20 protection rating in standard enclosures, which can be enhanced to IP40 with a protective cover to safeguard against solid particle ingress.

Manufactured in Germany, this ABB MCB is part of the Better World program and is designed for disassembly, supporting sustainability in electrical distribution systems. Rated current: 63A for handling robust electrical loads.

Breaking capacity: 6kA to limit fault energy during short circuits. Type B tripping characteristic suited for sensitive load protection. Screw terminal type for reliable conductor connection. IP40/IP20 ingress protection levels for safety in various environments.

Compact DIN rail mount for flexible installation. Thermomagnetic and electromagnetic tripping mechanisms ensure dependable protection. Toggle switch actuator for straightforward manual control and status visibility.

This Miniature Circuit Breaker is ideal for industrial, commercial, and residential electrical panels where dependable circuit protection is critical. It supports energy efficiency and safety in diverse sectors such as manufacturing, building construction, electrical maintenance, and infrastructure.
