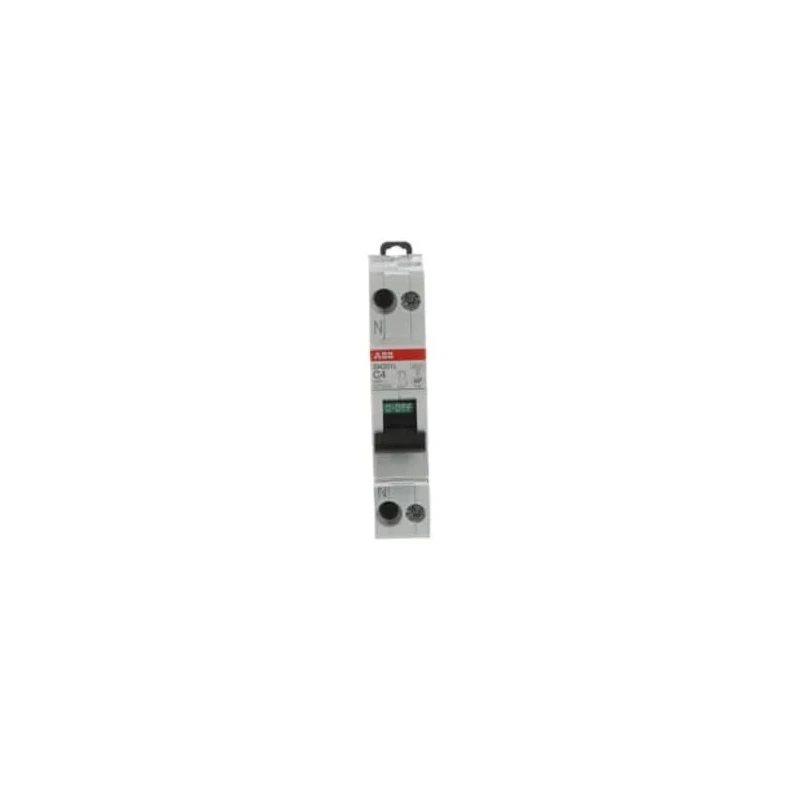

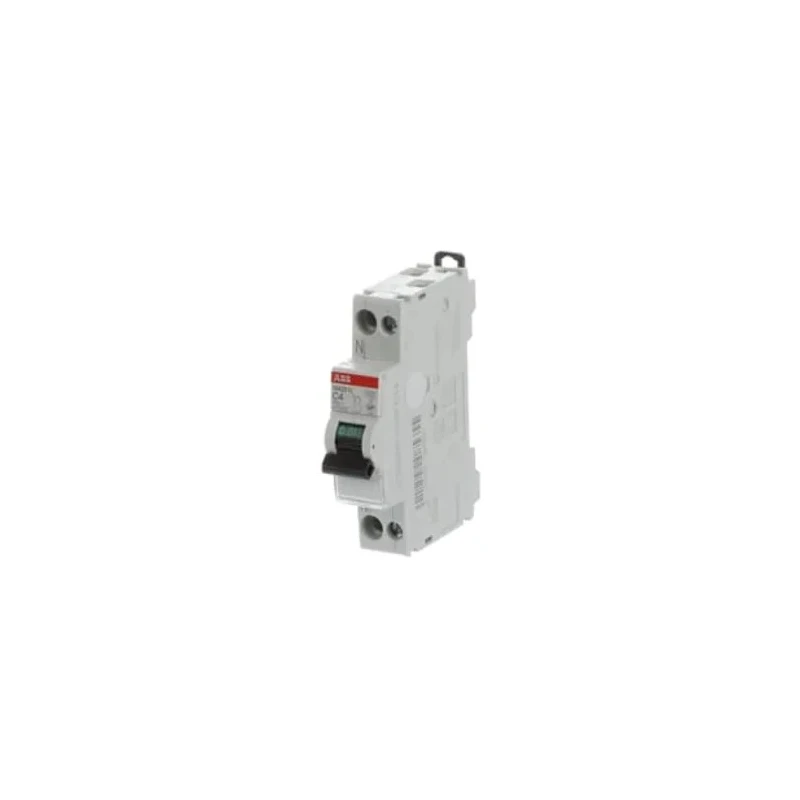

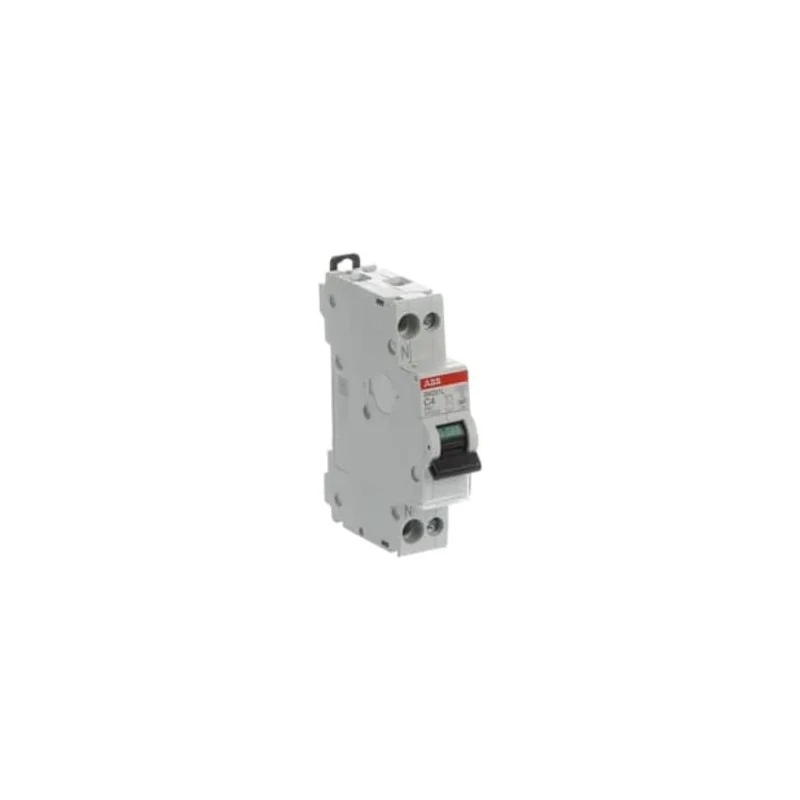

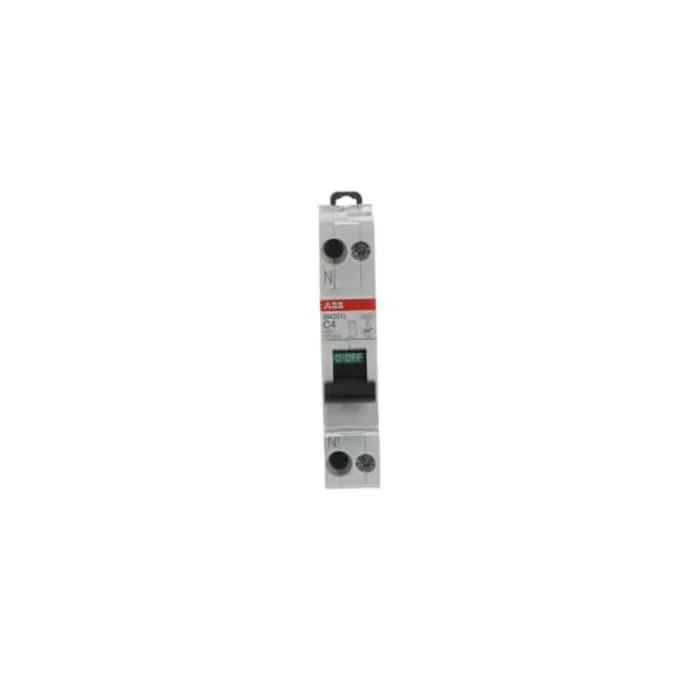

ABB Miniature Circuit Breaker, 1-Pole, 4A, Type C, 230V AC, 4.5 kA Breaking Capacity SN201

ABB SN201 Miniature Circuit Breaker (MCB) model SN201 is a 1-pole automatic circuit protection device rated at 4A, with type C tripping characteristics and a 230V AC voltage rating. It offers a breaking capacity of 4.5 kA, protecting electrical installations against short circuits and overloads.

Designed with compact dimensions of 85mm height, 85mm depth, and 18mm width, it fits well in constrained electrical panel spaces. The IP20 rating ensures the device is touch-proof and safeguarded against intrusion by objects larger than 12mm, enhancing user safety. The product features cage clamp terminals and a toggle switch reset actuator for reliable operation and user convenience.

The type C tripping curve provides protection for general purpose loads and sensitive electrical equipment by allowing short surge currents without nuisance tripping. Visual status indicators (red/green) allow easy observation of the breaker’s state, facilitating maintenance and troubleshooting.

This MCB is suitable for diverse industrial environments such as production lines, construction sites, and retail units, operating efficiently under temperatures ranging from -25°C to +55°C. Mounting is versatile on DIN rail, and can be installed in any position to meet specific installation requirements.

With compliance to IEC/EN 60898-1 standards, the ABB SN201 ensures durability and safety in low-voltage motor and lighting system protection. Its lightweight at 110 grams makes it easy for electrical technicians to handle and install.

The package contains the ABB SN201 Miniature Circuit Breaker with specifications optimized for reliable and safe circuit protection. This product is ideal for electrical and automation applications requiring robust circuit interruption capabilities.

Compact dimensions ideal for installations with limited space. Type C tripping characteristic enables protection against surges 5 to 10 times rated current. IP20 rated for touch protection against objects larger than 12mm.

Can be mounted in any position to suit various configurations. Red and green indicators clearly show contact position status. Suitable for industrial applications including production lines, construction, and retail units.

Operates reliably within a temperature range of -25°C to +55°C. Lightweight design at just 110 grams for ease of installation. Explore EnvMart’s comprehensive selection of ABB Miniature Circuit Breakers for advanced electrical protection solutions.
