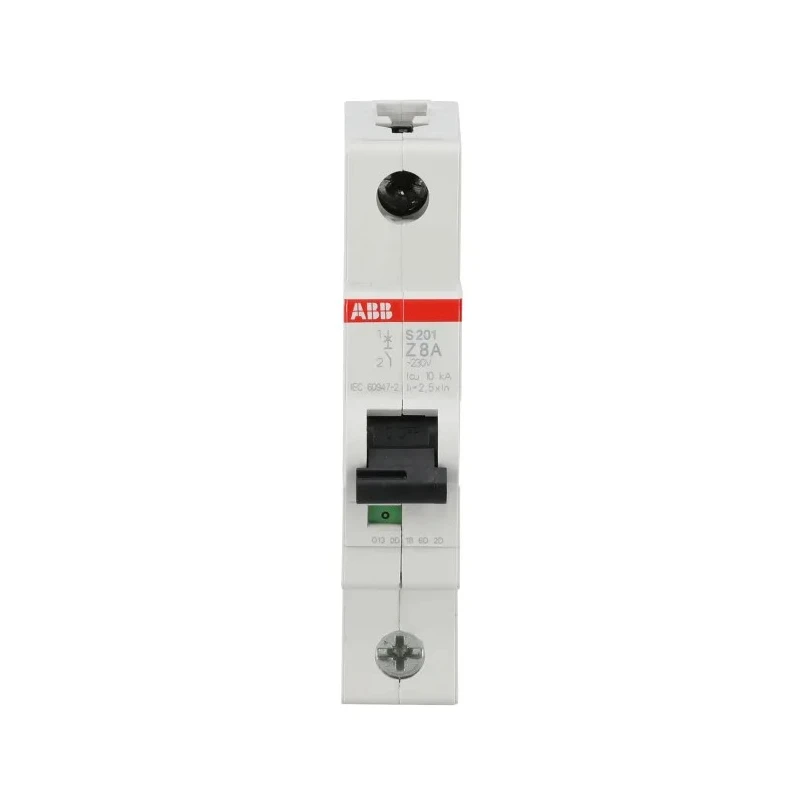

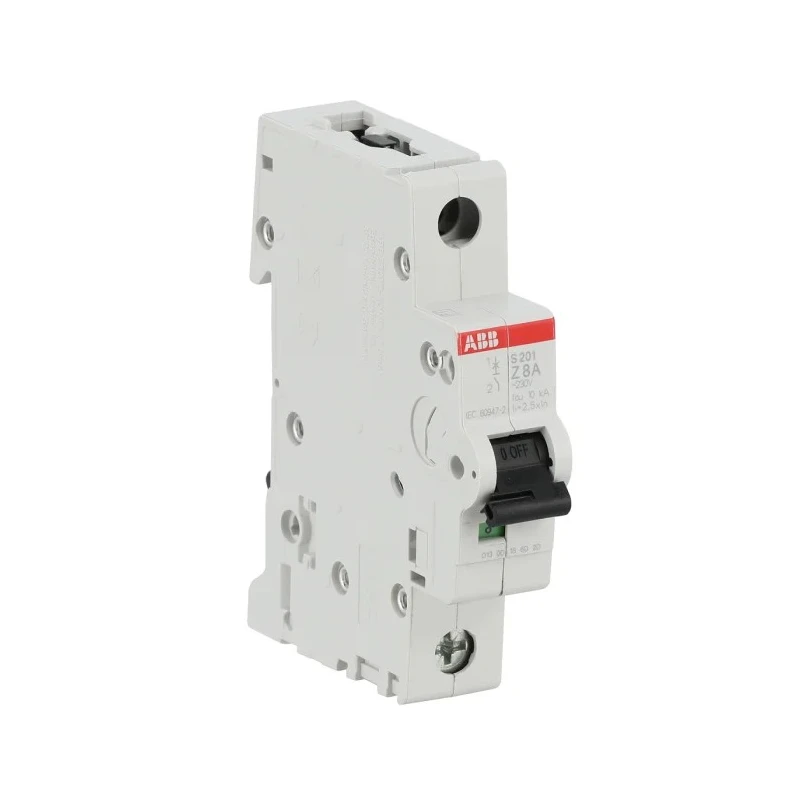

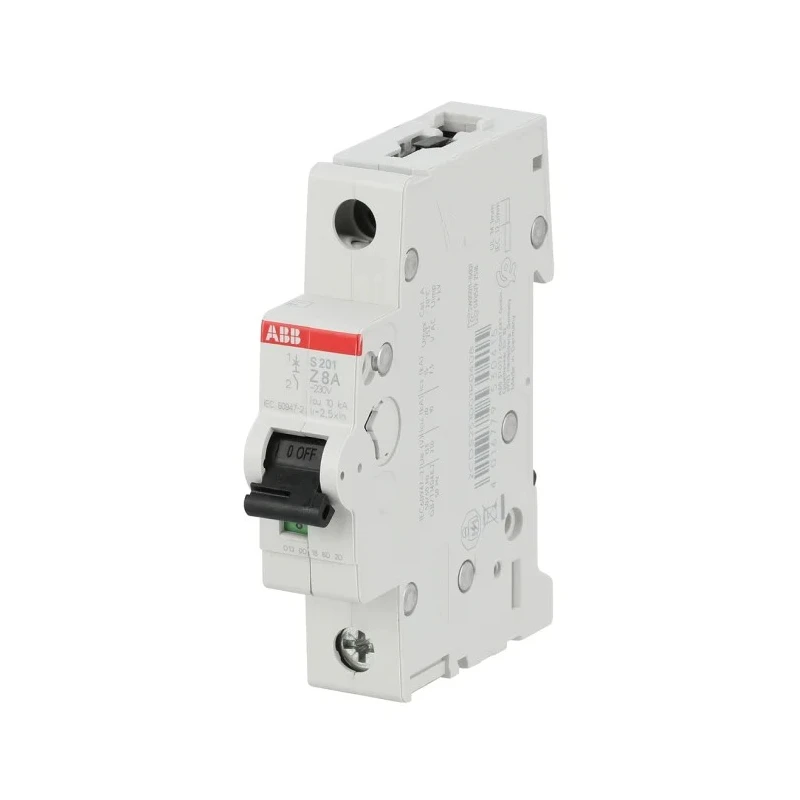

ABB System Pro M Compact S200 Miniature Circuit Breaker, 1-Pole, 8A, Type Z, 400V AC, 72V 2CDS251001R0408 S201 Z 8A - 10 KA

ABB 2CDS251001R0408 S201 Z 8A - 10 KA Miniature Circuit Breaker from the System Pro M Compact S200 series is designed for sensitive electrical circuits in commercial and residential environments. It features an 8 ampere current rating and a Type Z tripping characteristic, ideal for protecting highly sensitive equipment by providing fast tripping at low fault currents.

Suitable for dual-voltage applications, this MCB supports up to 400 volts alternating current and 72 volts direct current. Its 6 kiloampere breaking capacity offers dependable protection during fault conditions.

The single-pole design and compact dimensions of 17.5 mm width, 69 mm depth, and 88 mm height allow easy integration into space-conscious control panels. The DIN rail mount type facilitates quick and secure installation, ensuring efficient panel assembly.

Equipped with both electromagnetic and thermomagnetic tripping mechanisms, this MCB guarantees precise overload and short circuit protection, while the toggle switch actuator enables manual reset for convenience in operation.

This miniature circuit breaker conforms to IEC/EN 60898-1 and IEC/EN 60947-2 standards, ensuring high safety and reliability for residential, commercial, and light industrial use cases. Its IP20 and IP40 ratings provide protection against ingress of solid objects and limited water exposure, adding durability to the product.

Type Z tripping characteristic for fast and sensitive protection. Supports AC 400V and DC 72V rated voltages. 6kA breaking capacity for effective fault interruption. Compact single-pole design saves panel space. DIN rail mounting for straightforward installation.

Toggle switch actuator for easy reset functionality. Dual thermal and electromechanical tripping for accurate protection. Complies with IEC/EN 60898-1 and IEC/EN 60947-2 safety standards. IP20 and IP40 protection classes for enhanced durability.

This ABB miniature circuit breaker is highly suitable for protecting sensitive equipment including control circuits, instrumentation, and electronics across residential and commercial electrical systems. It ensures reliable operation in dual-voltage setups, distribution boards, control panels, and specialized installations, making it a robust solution for fault protection applications.
