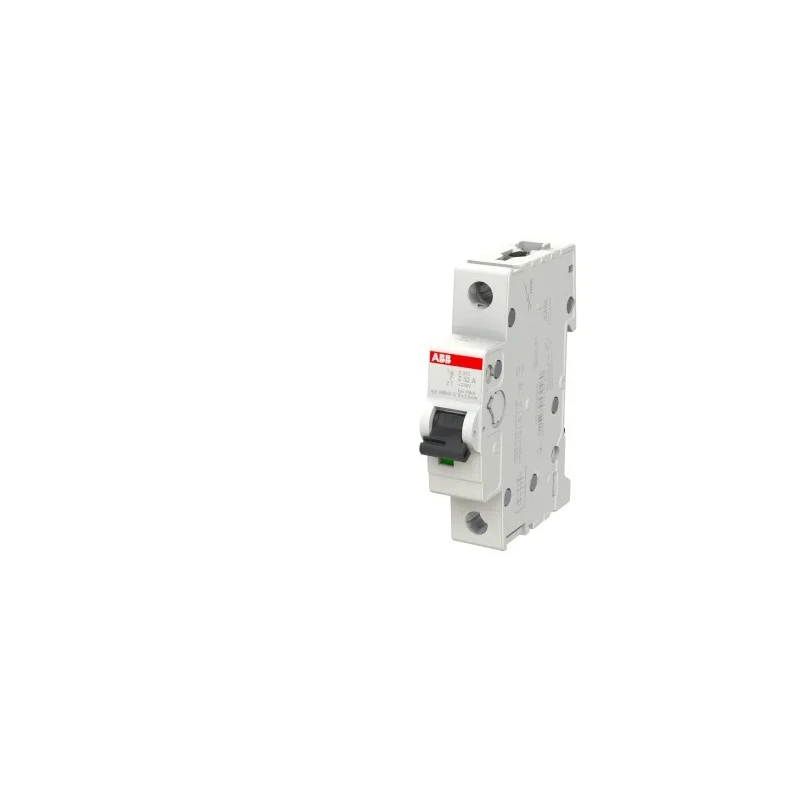

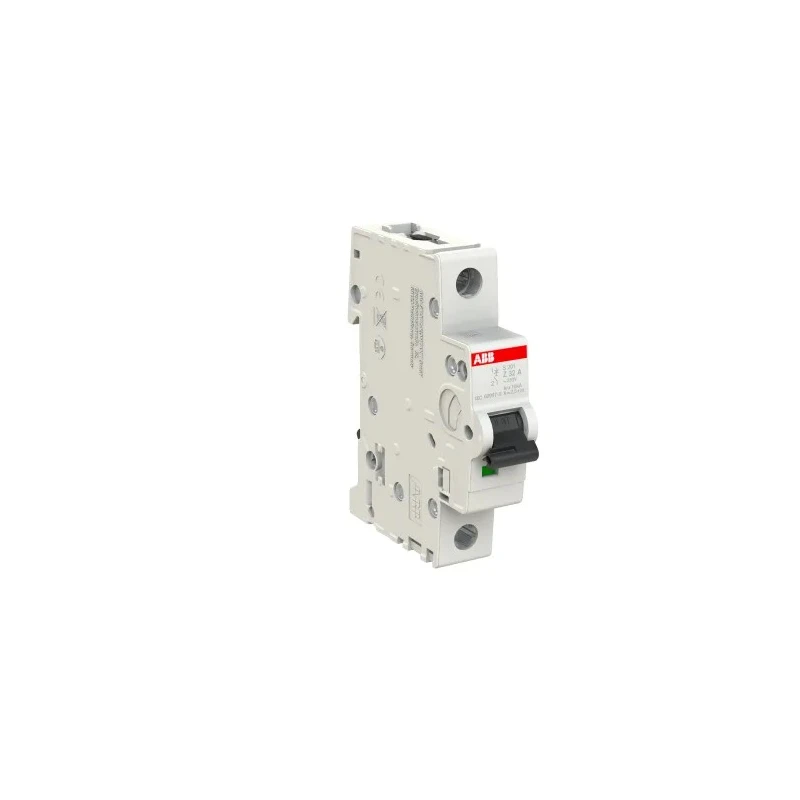

ABB System Pro M Compact S200 Miniature Circuit Breaker, 1-Pole, 32A, Type Z, 253V AC 2CDS251001R0538 S201 Z 32A - 10 KA

Free Delivery in India | Lowest Global Shipping Charges

ABB System Pro M Compact S200 Miniature Circuit Breaker, 1-Pole, 32A, Type Z, 253V AC 2CDS251001R0538 S201 Z 32A - 10 KA



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Germany
Range	System Pro M Compact
Brand	ABB
Height	88mm
Model	2CDS251001R0538 S201 Z 32A - 10 KA
Depth	69mm
IP Rating	IP20, IP40
Width	17.5mm
Mount Type	DIN Rail
Current Rating	32A
Series	S200
Terminal type	Screw
Breaking Capacity	10kA
Number of Poles	1
Standards/Approvals	IEC/EN 60898-1, IEC/EN 60947-2
Rated AC Voltage	253V ac
Rated DC Voltage	72V dc
Tripping Characteristics	Type Z
Better World Claim	Designed for Disassembly
Tripping Mechanism	Electromagnetic, Thermomagnetic
Reset Actuator Type	Toggle

Key Features

Offers dependable overload protection to prevent electrical circuit damage.
Type Z tripping characteristic ensures fast and precise current interruption for sensitive devices.
Thermal electromechanical tripping mechanism enhances operational reliability and safety.
Compact dimensions with 17.5mm width enable efficient control panel space utilization.
Suitable for DIN rail mounting in residential, commercial, and industrial electrical systems.
Breaking capacity of 10kA ensures safety during fault conditions by interrupting excessive currents.
Rated for 253V AC and 72V DC voltages, supporting versatile applications.
Equipped with screw terminal type and toggle reset actuator for easy installation and operation.

Product Description

ABB 2CDS251001R0538 S201 Z 32A - 10 KA System Pro M Compact S200 Miniature Circuit Breaker is a precision-engineered circuit protection device designed to deliver reliable performance in both residential and commercial applications. Rated at 32 amperes with a 1-pole configuration, it combines fast tripping Type Z characteristics with a thermal electromechanical mechanism to ensure optimal overload and short-circuit protection.

With a breaking capacity of 10 kiloamperes (kA), this MCB safeguards electrical circuits effectively during fault conditions, preventing damage and ensuring system integrity. Its compact form factor, measuring 17.5mm in width, 69mm in depth, and 88mm in height, allows for dense mounting on standard DIN rails, optimizing space within control panels.

The device supports rated voltages of 253V AC and 72V DC, making it adaptable for various electrical environments including automation, electronics, and mechanical industries. Its robust construction includes IP20 and IP40 ratings for protection against solid objects, while the screw terminal design and toggle reset actuator facilitate straightforward installation and maintenance.

ABB’s System Pro M Compact S200 MCB complies with international standards IEC/EN 60898-1 and IEC/EN 60947-2, ensuring global quality and safety benchmarks. Designed in Germany, this MCB also contributes to sustainability objectives, featured as a Better World product with a design optimized for disassembly.

Dependable overload protection reduces risk of electrical faults. Fast and accurate Type Z tripping for sensitive electrical equipment. Thermomechanical tripping mechanism ensures quick response to overloads. Compact dimensions save space on DIN rail installations.

High breaking capacity of 10kA secures circuit integrity during faults. Rated for both AC (253V) and DC (72V) high voltage applications. Screw terminals provide secure wiring connections. Toggle actuator enables easy manual reset and operation.

This miniature circuit breaker is ideal for residential power distribution, commercial electrical protection, automation systems, and various industrial sectors where compact, reliable circuit protection is essential. It supports installation environments demanding high safety, efficiency, and compliance with rigorous electrical standards.

Explore the full range of ABB electrical components and Miniature Circuit Breakers at EnvMart to find solutions tailored for your technical and industrial requirements.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This miniature circuit breaker has a current rating of 32A.

The breaking capacity of this model is 10kA, ensuring effective circuit protection during fault conditions.

It measures 88mm in height, 69mm in depth, and 17.5mm in width.

This unit is designed for DIN rail mounting, making it suitable for efficient installation in control panels.

It is rated for 253V AC and 72V DC, allowing for versatile applications in various electrical environments.

It features Type Z tripping characteristics, which provide fast and precise current interruption for sensitive devices.

The circuit breaker has an IP20 and IP40 rating, offering protection against solid objects in various environments.

It is equipped with screw terminals, ensuring secure wiring connections for installation.

This miniature circuit breaker complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards, ensuring quality and safety benchmarks.

It features a toggle reset actuator, which allows for easy manual reset and operation.

This model is manufactured in Germany, contributing to its compliance with international quality standards.

It is suitable for residential power distribution, commercial electrical protection, and various industrial sectors requiring reliable circuit protection.
