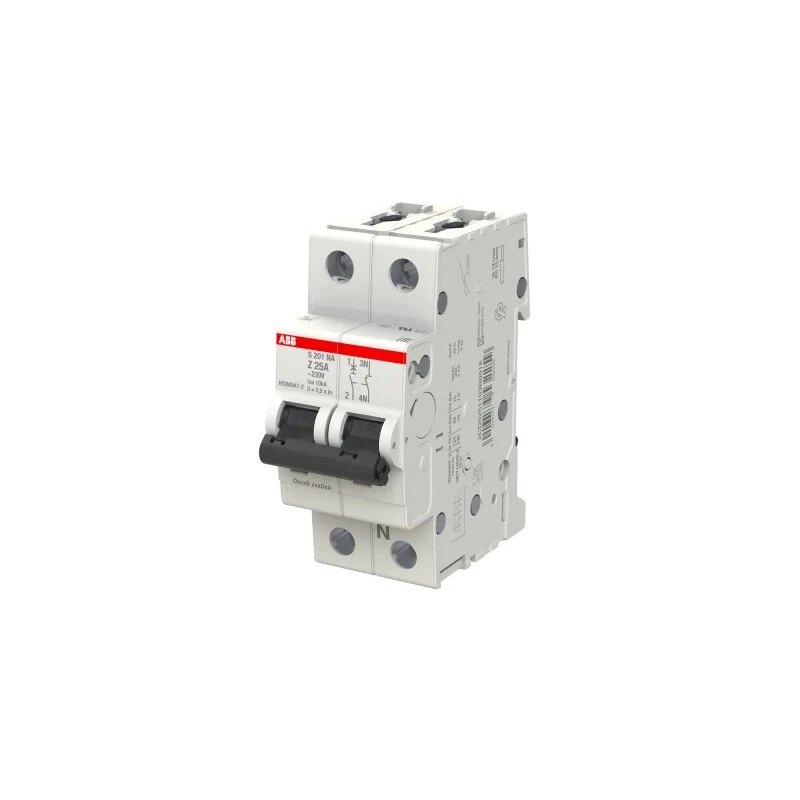

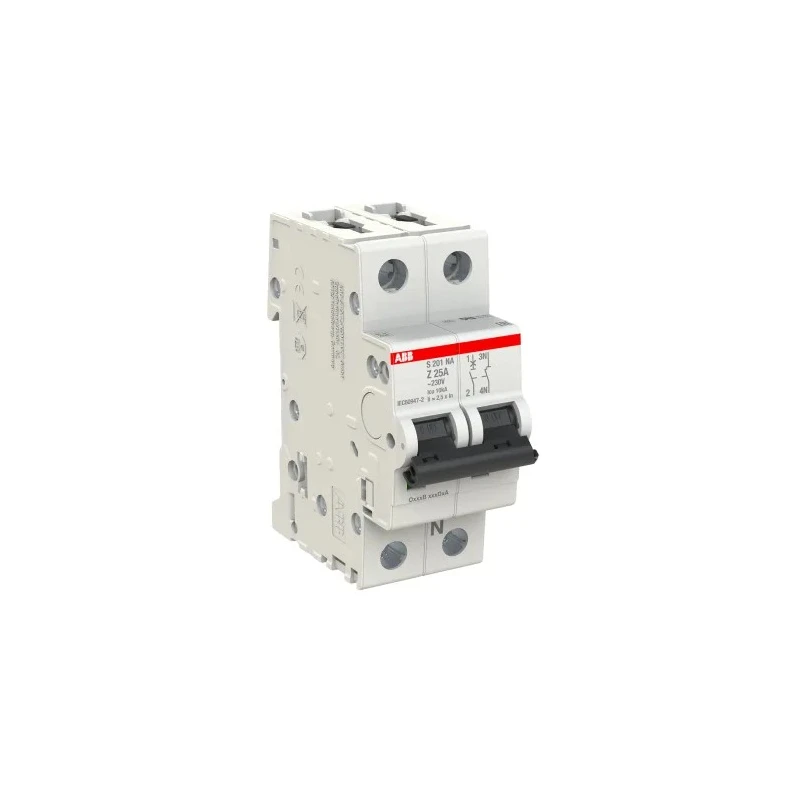

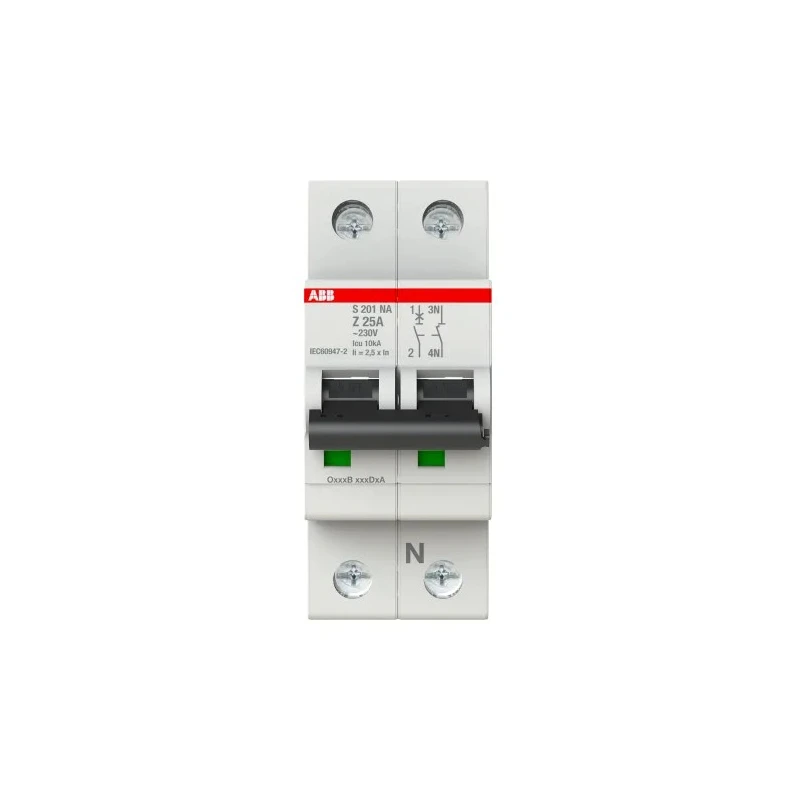

ABB System Pro M Compact S200 Miniature Circuit Breaker, 1-Pole, 25A, Type Z, 400V AC, 6kA Breaking Capacity 2CDS251103R0518

Free Delivery in India | Lowest Global Shipping Charges

ABB System Pro M Compact S200 Miniature Circuit Breaker, 1-Pole, 25A, Type Z, 400V AC, 6kA Breaking Capacity 2CDS251103R0518



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Germany
Range	System Pro M Compact
Brand	ABB
Height	88mm
Model	2CDS251103R0518
Depth	69mm
IP Rating	IP40, IP20
Width	35mm
Mount Type	DIN Rail
Current Rating	25A
Series	S200
Terminal type	Screw
Breaking Capacity	6kA
Number of Poles	1
Standards/Approvals	IEC/EN 60947-2, IEC/EN 60898-1
Rated AC Voltage	400V ac
Tripping Characteristics	Type Z
Better World Claim	Designed for Disassembly
Tripping Mechanism	Thermomagnetic, Electromagnetic
Reset Actuator Type	Toggle Switch

Key Features

Compact System Pro M Compact S200 series design for DIN rail mounting.
Thermomagnetic and electromagnetic tripping mechanisms provide effective overload and short circuit protection.
Screw terminals ensure secure electrical connections.
Rated for 20,000 electrical endurance cycles for long-term reliability.
IP40 and IP20 ratings for protection in various installation environments.
Compliant with IEC/EN 60947-2 and IEC/EN 60898-1 standards.
Operates reliably in ambient temperatures from -25°C to +55°C.

Product Description

ABB 2CDS251103R0518 Miniature Circuit Breaker, 1-Pole, 25A, Type Z, rated for 400V AC and 6kA breaking capacity, is engineered for precise and durable electrical protection in both residential and commercial applications.

This product is part of the ABB System Pro M Compact S200 series, offering a compact and reliable DIN rail-mounted solution. The breaker integrates thermomagnetic and electromagnetic tripping mechanisms to safeguard circuits against overloads and short circuits. Its screw terminal connections facilitate secure, stable wiring suitable for diverse electrical systems.

Designed for longevity, this miniature circuit breaker withstands electrical endurance of up to 20,000 cycles. Its IP40 and IP20 protection ratings enable installation in various environmental conditions while maintaining safety and operational integrity.

The breaker complies with international standards IEC/EN 60947-2 and IEC/EN 60898-1, ensuring industry-grade trust and performance. Dimensioned at 35mm width, 69mm depth, and 88mm height, it fits seamlessly into compact panel designs, optimizing space utilization.

Applications include circuit protection in commercial buildings, residential installations, and automated systems requiring rapid response to electrical faults. The breaker is suited for environments ranging from cold (-25°C) to hot ambient conditions (+55°C), maintaining consistent protection throughout.

Compact System Pro M Compact S200 series with DIN rail mount compatibility. Effective thermomagnetic and electromagnetic tripping mechanisms for overload and short circuit protection. Screw terminal type for secure electrical connections.

Electrical endurance rated at 20,000 cycles for high reliability. IP40 and IP20 ingress protection suitable for diverse installation settings. Standards compliant: IEC/EN 60947-2, IEC/EN 60898-1. Space-saving dimensions: 35mm width, 69mm depth, 88mm height.

Reliable functioning in ambient temperatures from -25°C to +55°C. Explore further products within the ABB Miniature Circuit Breakers series at EnvMart for your electrical protection needs.
