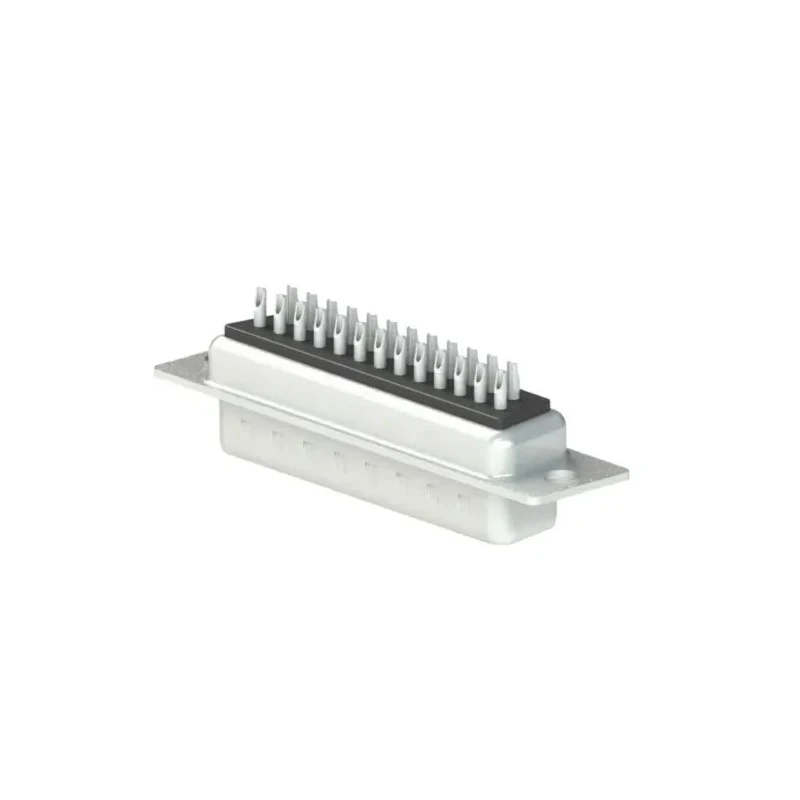

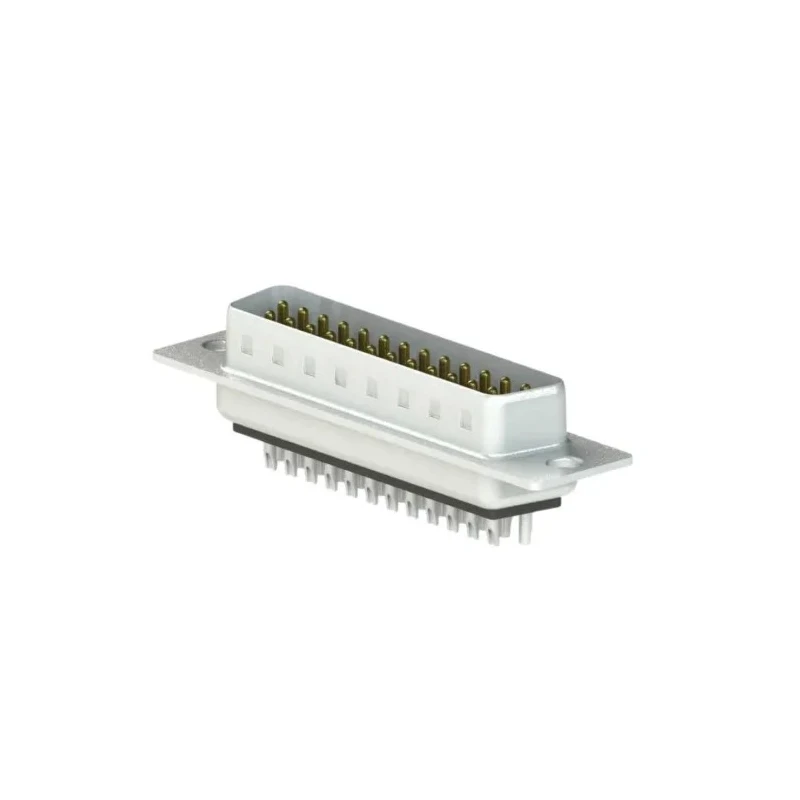

RS PRO 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector with Screw Male 217-7799
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1kV |
| Brand | RS PRO |
| Orientation | Straight |
| Operating Temperature | -50°∼+105° |
| Mounting | Panel mount |
| Current | 5A |
| Model | 217-7799 |
| Gender | Male or Female |
| Mount Type | Panel Mount |
| Housing Material | Steel |
| Contact Material | Brass |
| Mounting Hardware | Screw |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Insulation resistance | 1000mΩ Min. at 500V DC |
| Minimum Operating Temperature | -50°C |
| Shell | SPCC Material, Nickel Plated Front, Tin Plated Rear |
| Pitch | 2.77mm |
| Contact Resistance | 20mΩ max |
| Standards Met | ROHS |
| Contact Plating | Gold Flash |
| Number of Contacts | 25 |
| Contact Gender | Male |
| Connector Gender | Male |
| Contact Size | 1.09 mm |
| Connector Type D | D-Sub |
| D-Sub Shell Size | B |
| Withstanding Voltage | 1000V (one minute) |
| Contact Finish | Gold Flash On Contact Area, Tin Plated On Solder Tail, under Plated Nickel |
| 9 pin, RS Stock no | 218-4249 |
| 15 pin, RS Stock no | 217-7796 |
| 25 pin, RS Stock no | 217-7798 |
| RS PRO Soldering Station Iron Stand, RS Stock no | 146-6442 |
Key Features
- This connector supports a 2.77 mm pitch and is rated for 5 amps current.
- It operates between temperatures of -50°C and 105°C for versatile applications.
- The D-sub male connector is panel mount type with screw mounting hardware.
- Contacts are brass with gold flash plating ensuring excellent conductivity and corrosion resistance.
- The shell is nickel plated steel providing good EMI/RFI protection and mechanical strength.
- Termination is by solder cups for secure wire connections.
- This connector withstands voltages up to 1000 V for one minute.
- Ideal for use in computers, test equipment, and communication devices requiring durable D-sub connections.
Product Description
RS PRO 217-7799 is a 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector featuring a reliable male connector with screw mounting. It is constructed with a durable steel housing that is nickel plated on the front and tin plated on the rear, providing strong EMI/RFI shielding and mechanical support. The connector operates within an extensive temperature range of -50°C to 105°C, suitable for demanding industrial and electronic environments.
The connector contacts are made of brass with gold flash plating on the contact area and tin plating on the solder tails under plated with nickel, ensuring superior conductivity and resistance to corrosion. The 2.77 mm pitch and 1.09 mm contact size enable robust performance at currents up to 5 amps and voltages up to 1000 V for one minute.
It is designed for panel mounting using screw hardware for secure and stable installation. Termination is via tinned solder cups, facilitating easy and reliable wire soldering. This D-sub connector is ideal for applications in computers, monitors, test and measurement equipment, and PCBs where power and data communication through a dependable interface is critical.
Robust steel housing with nickel and tin plating for EMI/RFI protection. Contacts are brass with gold flash plating for durability and performance. Rated for 5 A current and withstands 1000 V voltage briefly. Operates from -50°C up to 105°C.
Solder cup terminations simplify wire connection and installation. Panel mount design with screw hardware ensures secure fitting. Suitable for various industrial and computing applications.
RS PRO connectors are made for professional industrial uses requiring quality, durability, and consistent electrical performance. Explore the wide range of RS PRO D-Sub Connectors and other electronic components at EnvMart for reliable sourcing of your connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-sub connector is rated for a maximum current of 5 amps.
It operates within a temperature range of -50°C to 105°C, making it suitable for various environments.
This model is designed for panel mounting and includes screw mounting hardware for secure installation.
The housing is made of steel, nickel plated on the front and tin plated on the rear, while the contacts are brass with gold flash plating.
The pitch size of this connector is 2.77 mm.
It can withstand voltages up to 1000 V for one minute.
Termination is done via tinned solder cups, allowing for easy and reliable wire soldering.
This connector features 25 contacts.
The maximum contact resistance is 20 mΩ.
This model meets ROHS standards, ensuring compliance with environmental regulations.
The insulation resistance is a minimum of 1000 mΩ at 500V DC.
