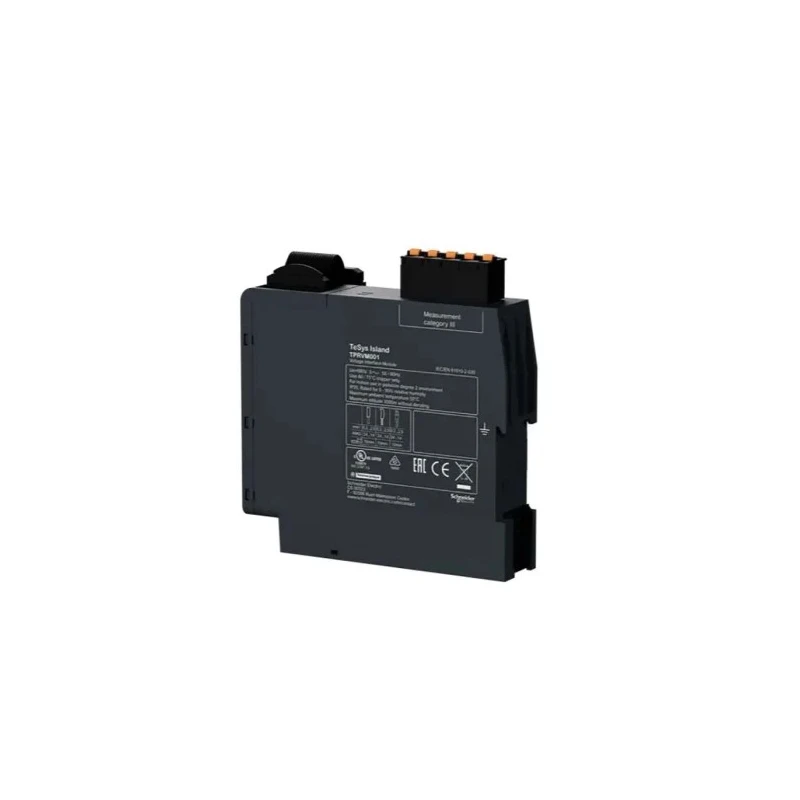

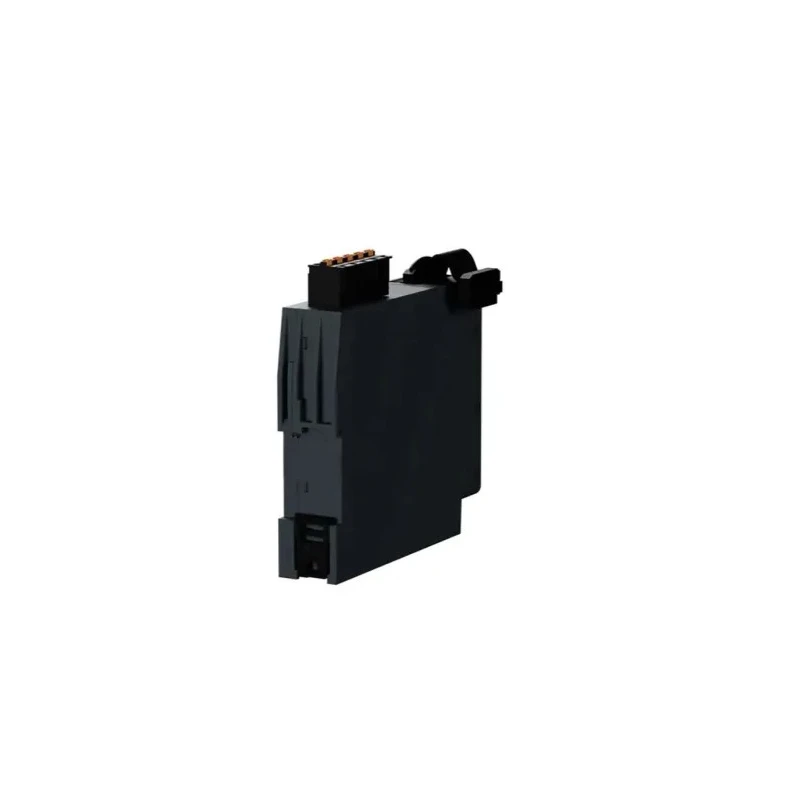

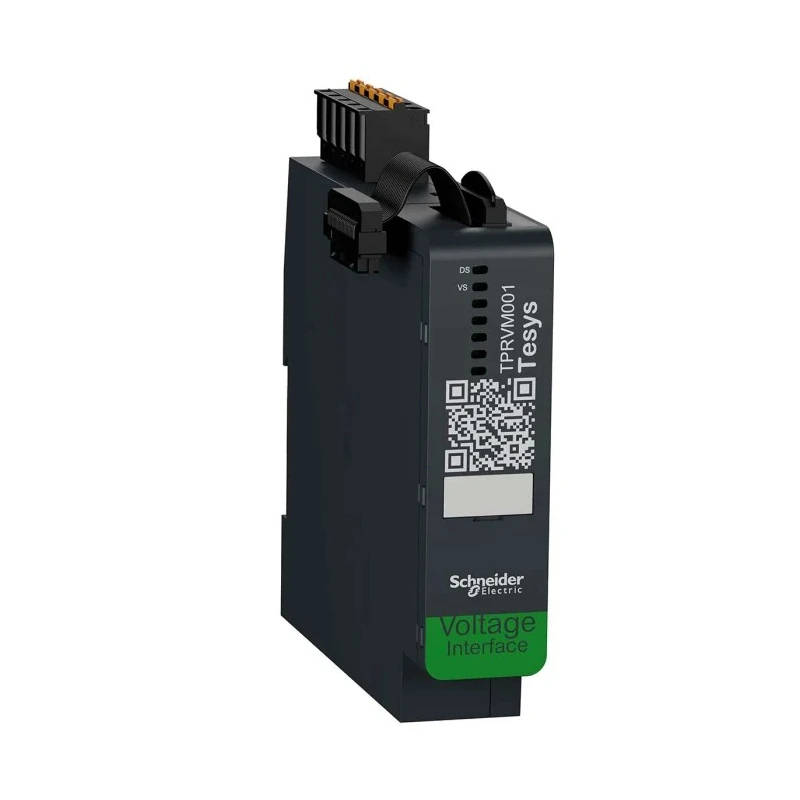

Schneider Electric Monitoring Relay 1 and 3 Phase, DIN Rail Mount, 690 V AC 24 V DC TPRVM001
Specifications
| Country of Origin | India |
|---|---|
| Power Consumption | 0.5W |
| Brand | Schneider Electric |
| Height | 118mm |
| Length | 114mm |
| Model | TPRVM001 |
| IP Rating | IP20 |
| Width | 25mm |
| Mount Type | DIN Rail |
| Series | TeSys Island TPRVM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | +60°C |
| Interfaces | Ethernet/IP, Modbus TCP, PROFINET or PROFIBUS |
| Terminal type | Spring Terminal |
| Contact Current | 2mA |
| Supply DC Voltage | 24 V dc |
| Supply AC Voltage | 690V ac |
Key Features
- Suitable for monitoring single-phase and three-phase voltage systems without neutral connection.
- Operates with supply voltages of 690 V AC and 24 V DC for control circuits.
- Features LEDs for local device status and voltage status with red and green signalling.
- Accurate voltage and frequency measurement with ±5% voltage and ±1 Hz frequency precision.
- Compact DIN rail mount design measuring 118 mm height, 114 mm length, and 25 mm width.
- Designed for industrial conditions with operating temperature range from -60°C to +60°C and IP20 rating.
- Low power consumption at 0.5 W and a 2 mA contact current for energy efficiency.
- Complies with standards CSA C22.2 No 61010-2-201, IEC 61010-2-201, and UL 61010-2-201.
Product Description
Schneider Electric TPRVM001 Monitoring Relay is an advanced voltage interface module designed for monitoring mains voltage within the TeSys Island product range. It provides comprehensive control and monitoring functionality for electrical systems in industrial, automation, and manufacturing environments.
This monitoring relay supports one-phase and three-phase voltage systems without a neutral connection, capable of measuring phase voltage, frequency, and phase sequence. It offers essential detection of dip and swell events along with duration monitoring, enabling effective power quality management.
The compact DIN rail mount form factor allows flexible horizontal or vertical installation on a 35 mm symmetrical rail. The module is engineered to operate efficiently with minimal power dissipation of only 0.5 W and low current consumption of 2 mA, supporting sustainable operations.
Local operation feedback is provided by dual LEDs which indicate device status and voltage status through easily recognizable red and green signals. Precision measurements include ±5% voltage accuracy and ±1 Hz frequency accuracy, ensuring reliable monitoring in demanding industrial applications.
Supports 690 V AC operational voltage with a frequency range of 47 to 63 Hz. Impulse withstand voltage rating of 6 kV and overvoltage category III for robust performance. Compliant with international standards CSA C22.2 No 61010-2-201, IEC 61010-2-201, and UL 61010-2-201 for safety and reliability.
Interface connectivity enables integration with bus couplers for system-wide voltage and energy monitoring. Constructed as part of Schneider Electric's TeSys Island series for digital load management and Industry 4.0 compatibility.
This Monitoring Relay is ideal for electrical control panels, industrial automation, and power monitoring systems where accurate phase voltage and frequency information is critical. Its compatibility with Industry 4.0 digital infrastructure enhances machine reliability and operational efficiency.
Explore the full range of Schneider Electric products and solutions for dynamic machine control and load management through EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This monitoring relay operates with supply voltages of 690 V AC and 24 V DC for control circuits.
It provides ±5% voltage accuracy and ±1 Hz frequency accuracy for reliable monitoring.
This model measures 118 mm in height, 114 mm in length, and 25 mm in width.
The power consumption is 0.5 W, making it energy efficient.
It can operate in temperatures ranging from -60°C to +60°C.
The TPRVM001 has an IP20 rating, indicating protection against solid objects larger than 12.5 mm.
It features a compact DIN rail mount design for flexible installation on a 35 mm symmetrical rail.
This model supports Ethernet/IP, Modbus TCP, PROFINET, or PROFIBUS interfaces for system integration.
It uses spring terminals for electrical connections.
The contact current rating is 2 mA, which contributes to its low power consumption.
It complies with CSA C22.2 No 61010-2-201, IEC 61010-2-201, and UL 61010-2-201 standards for safety and reliability.
It is designed for electrical control panels, industrial automation, and power monitoring systems where accurate phase voltage and frequency information is critical.
