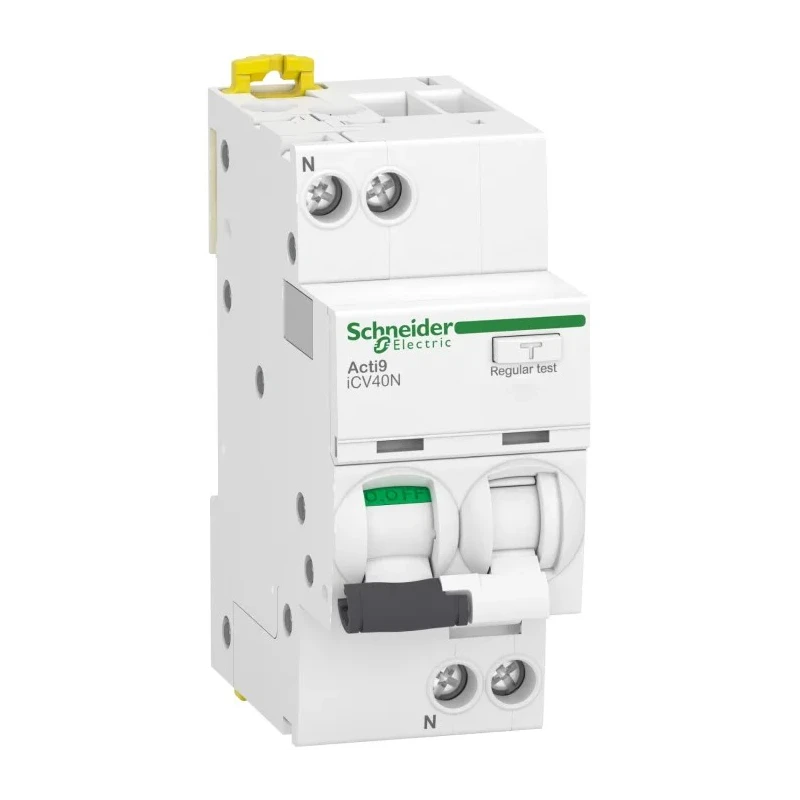

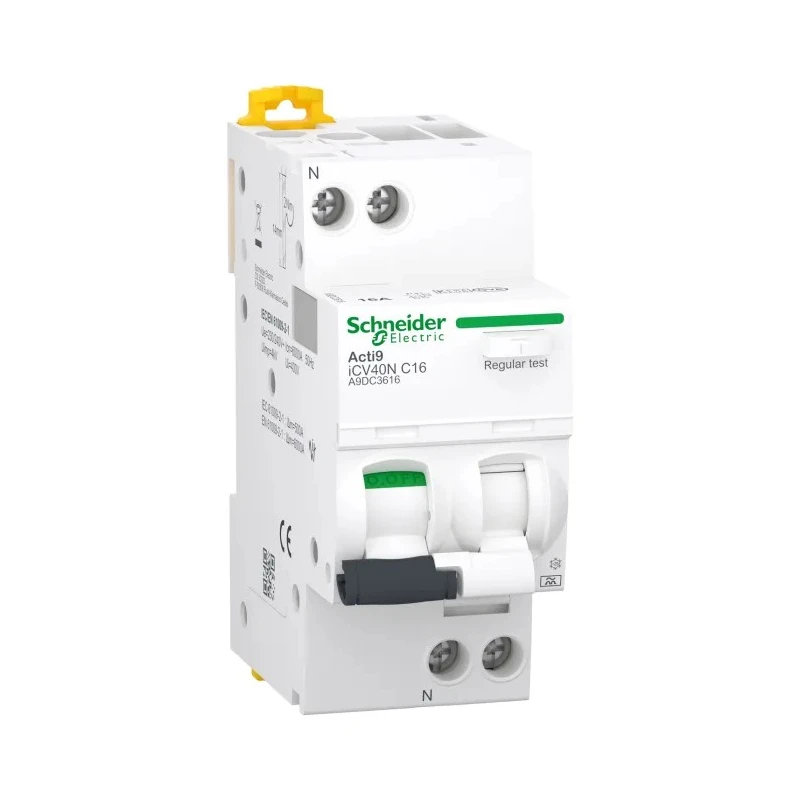

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 16A Current Rating, 1-Pole, 30 mA Trip A9DC3616
Specifications
| Country of Origin | India |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 85mm |
| Model | A9DC3616 |
| Depth | 73mm |
| Width | 36mm |
| Mount Type | DIN Rail |
| Current Rating | 16A |
| Series | A9 |
| Terminal type | Tunnel |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Standards/Approvals | RoHS, IEC |
| Rated AC Voltage | 230V ac |
| Tripping Mechanism | Thermal Magnetic |
| Trip Sensitivity | 30mA |
| Earth Leakage Protection Type | Type A |
Key Features
- Features a 16A current rating suitable for branch-circuit distribution loads.
- Incorporates 30mA trip sensitivity for enhanced personnel protection against leakage currents.
- Equipped with thermal-magnetic tripping mechanism for overload and short-circuit protection.
- Allows DIN rail mounting with tunnel-type terminals accepting 1 to 16mm² conductors.
- Boasts a 6kA breaking capacity to limit fault energy during short circuits.
- Supports 230V AC operation at 50/60Hz standard single-phase networks.
- Includes local ON/OFF contact position indicator for rapid visual checks.
- Operates reliably in temperatures ranging from -25°C to 60°C, and up to 2000m altitude.
Product Description
Schneider Electric A9DC3616 Residual Current Circuit Breaker with Overload Protection is designed for combined earth-leakage detection and overcurrent interruption in distribution circuits, delivered through its thermal-magnetic tripping mechanism and 16A rating. It is ideal for electrical installations in industrial, commercial, workshop, and plant room environments requiring reliable single-phase supply protection.
The device is constructed to mount easily on DIN rails and features tunnel-type terminals that securely accept solid and flexible conductors with a strip length of 14mm. With a breaking capacity of 6kA, this circuit breaker ensures control of fault energy during short circuit events. Its trip sensitivity of 30mA provides personnel protection by detecting earth-leakage currents effectively.
Operating at 230V AC and supporting frequencies of 50/60Hz, the unit is suitable for standard AC networks. The thermal-magnetic trip mechanism ensures prompt response to overloads and short circuits, enhancing equipment safety and longevity. An ON/OFF indicator provides clear visual status of the contact position, facilitating rapid operational checks.
Engineered to withstand harsh environmental conditions, it functions reliably between temperatures of -25 to 60°C, withstanding altitude up to 2000 meters and humidity levels up to 95% at 55°C. Additional safety features include padlock and sealable options for controlled access, ensuring compliance with safety regulations.
16A rated current for branch-circuit protection. 30mA trip sensitivity for earth-leakage detection. Thermal-magnetic tripping mechanism for overload and short-circuit protection. 6kA breaking capacity limits fault energy.
DIN rail mounting for easy installation. Tunnel-type terminals accommodate 1-16mm² conductors. Local ON/OFF contact indicator for rapid visual verification. Operational temperature range: -25°C to 60°C. Padlock/sealable locking options for access control.
This Schneider Electric RCBO belongs to the Acti9 A9 series, delivering safety and reliability in electrical distribution panels, machinery control boards, and retrofit DIN-rail installations. It is suitable for protecting lighting and socket circuits in workshops, ensuring personnel and equipment safety.
Explore a wide range of Schneider Electric circuit breakers and related electrical protection devices on EnvMart to meet your specific industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The circuit breaker has a current rating of 16A, suitable for branch-circuit distribution loads.
It features a trip sensitivity of 30mA, providing enhanced personnel protection against leakage currents.
This model has a breaking capacity of 6kA, which limits fault energy during short circuit events.
It is designed for DIN rail mounting, allowing for easy installation in electrical distribution panels.
The circuit breaker operates at a rated AC voltage of 230V.
The dimensions of this model are 85mm in height, 73mm in depth, and 36mm in width.
It features tunnel-type terminals that can accommodate conductors ranging from 1 to 16mm².
It operates reliably in temperatures ranging from -25°C to 60°C and can function at altitudes up to 2000 meters.
This circuit breaker employs a thermal-magnetic tripping mechanism for overload and short-circuit protection.
It complies with RoHS and IEC standards, ensuring it meets safety and environmental regulations.
This model belongs to the Acti9 series by Schneider Electric, designed for reliable electrical protection.
Yes, it includes padlock and sealable options for controlled access, enhancing safety compliance.
