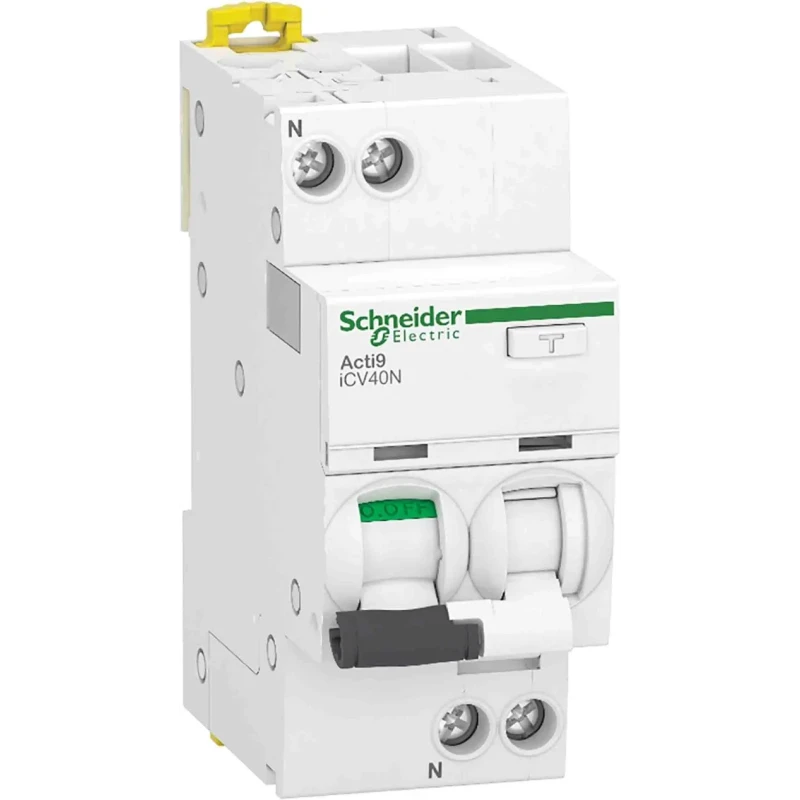

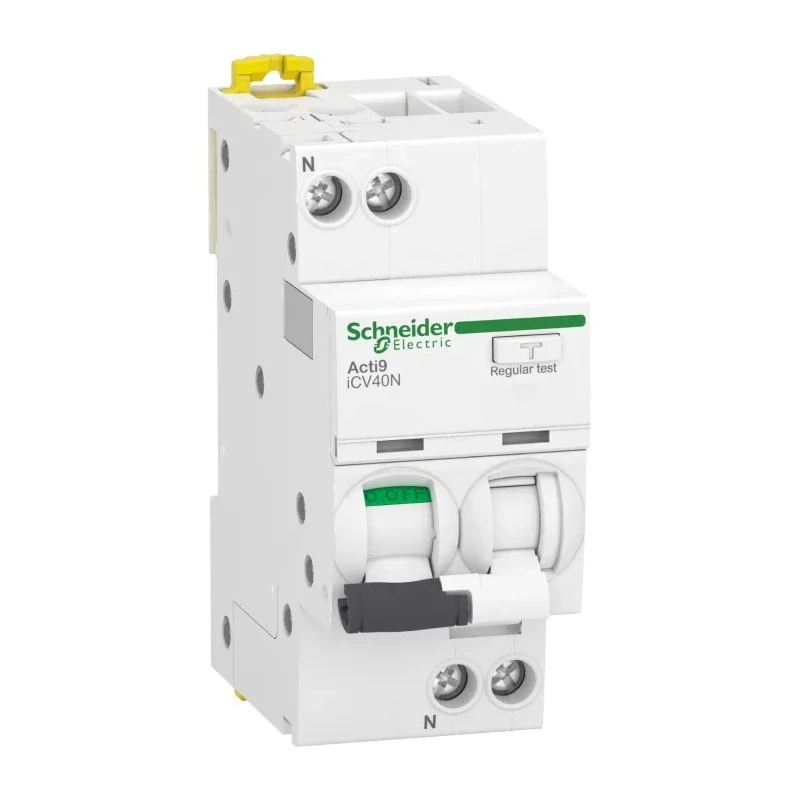

Schneider Electric Residual Current Circuit Breaker with Overload Protection 6A Current Rating 1-Pole 30 mA Trip A9DF3606

Schneider Electric A9DF3606 Residual Current Circuit Breaker with Overload Protection is engineered to provide superior electrical safety by combining earth leakage detection with overload protection. This device features a 6A current rating, making it suitable for low current circuit applications in residential, commercial, and light industrial environments.

It operates at a rated AC voltage of 230V, utilizing a 1-pole configuration and a type A-SI earth leakage protection mechanism with a trip sensitivity of 30mA. The breaker employs a thermal magnetic tripping mechanism that ensures rapid and reliable response to overloads and earth faults, protecting electrical installations and connected equipment from damage.

Designed for mounting on standard DIN rails, this device incorporates screw terminals facilitating robust and secure electrical connections. Its compact dimensions - 85mm height, 36mm width, and 73mm depth - as well as a lightweight construction (approx. 210 grams), make integration into distribution boards straightforward and space-efficient.

Conforming to IEC and RoHS standards, the A9DF3606 is built with high quality to ensure safety and environmental compliance. Its breaking capacity of 6kA provides a strong protective barrier against short circuits and fault currents.

This residual current breaker is ideal for applications needing reliable earth leakage detection in addition to overload protection, such as residential wiring circuits, lighting control, and distribution sub-panels within industrial and commercial buildings.

This breaker is designed for 1-pole configuration ideal for residential and commercial electrical distribution. Features thermal magnetic tripping mechanism ensuring protection against overload and earth faults. Mounts easily on DIN rail, compatible with standard electrical panels.

Equipped with screw terminals for secure and convenient wiring connections. Complies with IEC and RoHS standards assuring quality and safety compliance. Compact design with dimensions of 85mm height, 36mm width, and 73mm depth for efficient space utilization.

Breaking capacity rated at 6kA to withstand fault currents effectively. Supports a 230V AC rated voltage suitable for typical supply systems. Explore EnvMart’s comprehensive range of circuit breakers and protective devices to meet your industrial, commercial, and residential electrical safety requirements.
