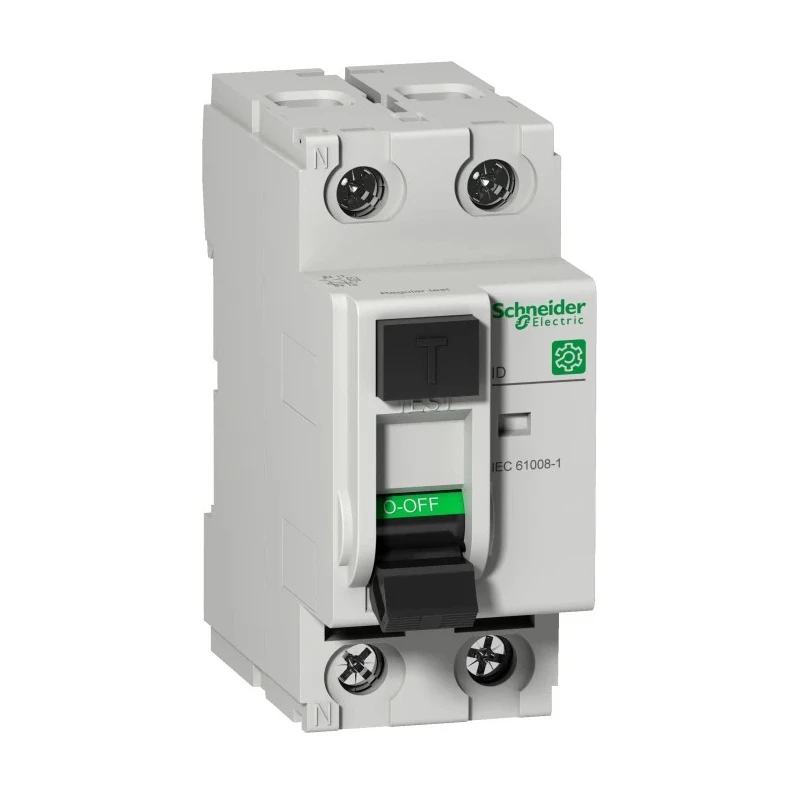

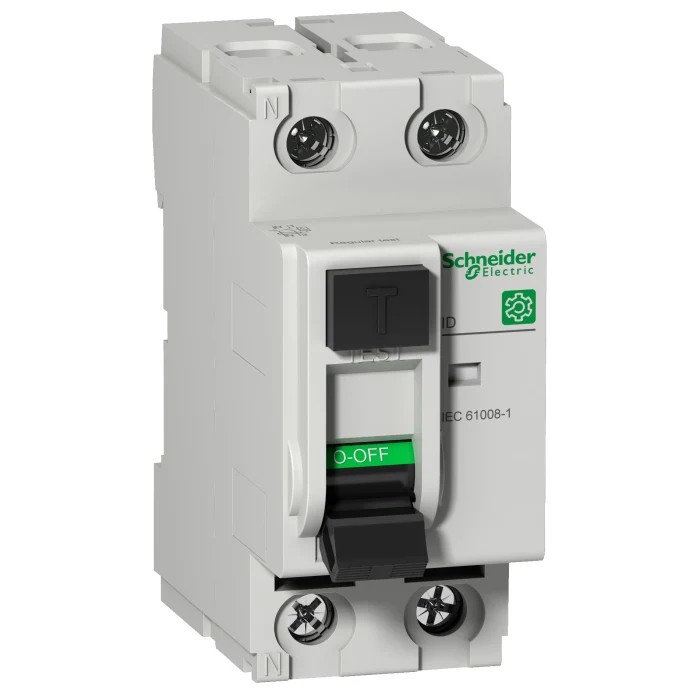

Schneider Electric ID Series Residual Current Circuit Breaker 40A 2-Pole 30mA Type AC 240V ac M9R11240

Schneider Electric M9R11240 ID Series Residual Current Circuit Breaker is designed for industrial, commercial, and residential applications requiring high safety standards. This device has a 40 amp current rating and 2-pole configuration, providing reliable earth leakage protection with a trip sensitivity of 30mA. It features Type AC tripping characteristics, making it suitable for alternating current fault detection.

Mounting is via DIN rail, with a left neutral position for flexible installation in electrical panels. The toggle switch reset actuator ensures simple manual operation. The breaker dimensions are 81mm in height, 73mm in depth, and 36mm in width, ideal for compact spaces.

This RCCB uses electromagnetic tripping mechanisms with instantaneous break times to quickly interrupt fault currents and enhance electrical safety. The screw terminals provide secure, stable electrical connections. It meets international standards such as REACH, RoHS, EN IEC 61008-1, and CE marking, ensuring quality and environmental compliance.

The device has an ingress protection rating of IP20 and IP40, protecting against solid foreign bodies and touch, and it is rated for operation in ambient temperatures between -5°C and 40°C, making it versatile for multiple environments.

This residual current circuit breaker is manufactured in Spain, reflecting Schneider Electric’s global quality assurance. It is suitable for use in electrical distribution boards across industrial, commercial, residential, and HVAC installations where enhanced protection against earth leakage currents is essential.

Equipped with 30mA trip sensitivity for earth leakage protection. Type AC tripping characteristic suitable for AC faults. Designed for DIN rail mounting with left neutral position. Features a toggle switch reset actuator for easy manual control.

Compact dimensions: 81mm height, 73mm depth, 36mm width. Instantaneous break time ensures rapid disconnection during faults. Constructed with screw-type terminals for secure wiring. Compliance with standards including REACH, RoHS, EN IEC 61008-1 and CE.

IP20 and IP40 degrees of protection for dust and touch safety. Operates reliably within ambient temperatures from -5 to 40 °C. Explore the Schneider Electric range and other Residual Current Circuit Breakers at EnvMart for optimized electrical protection solutions.
