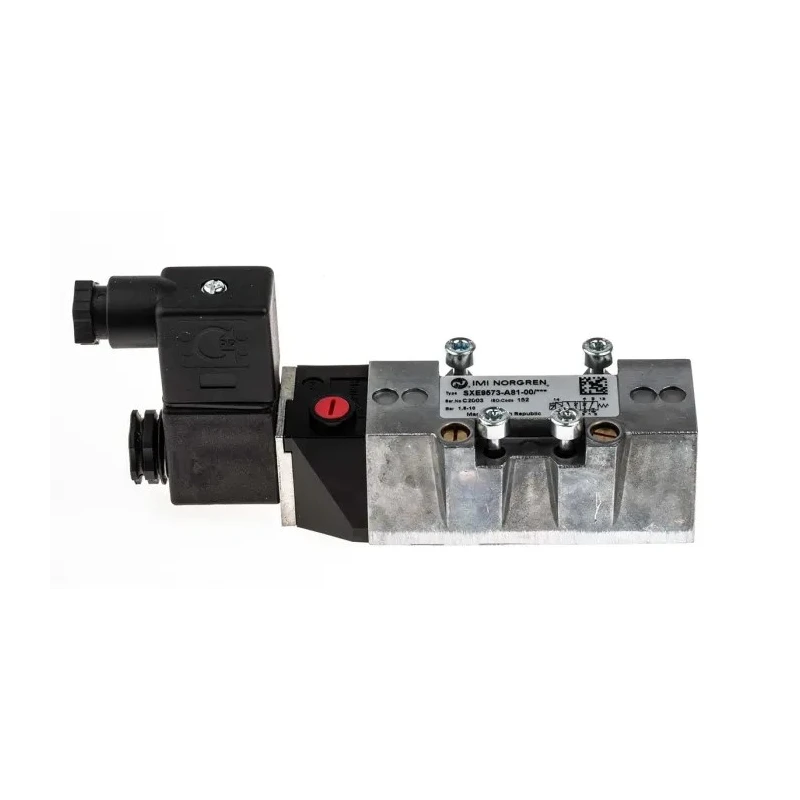

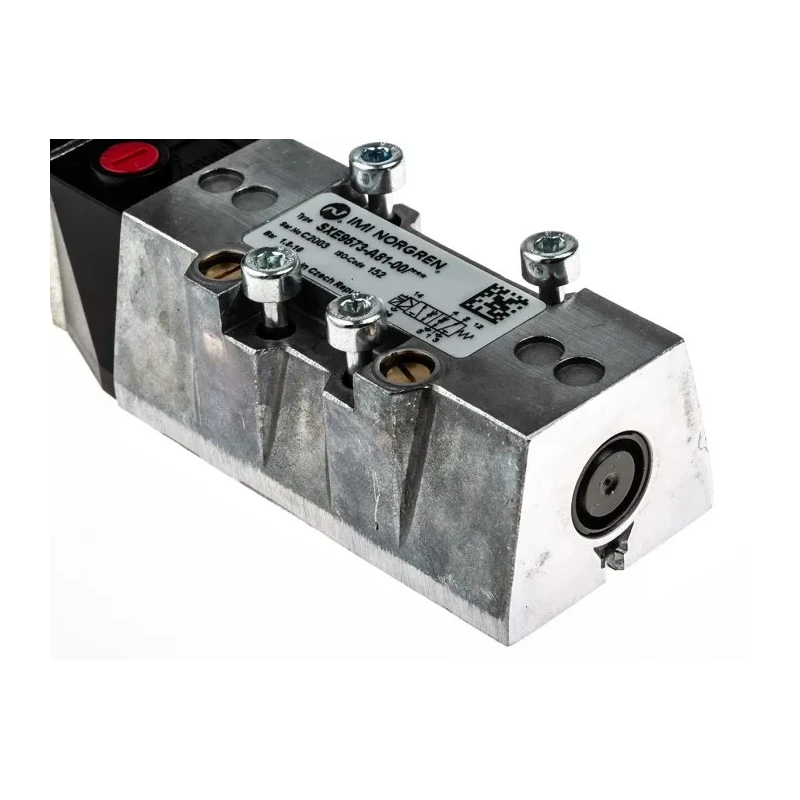

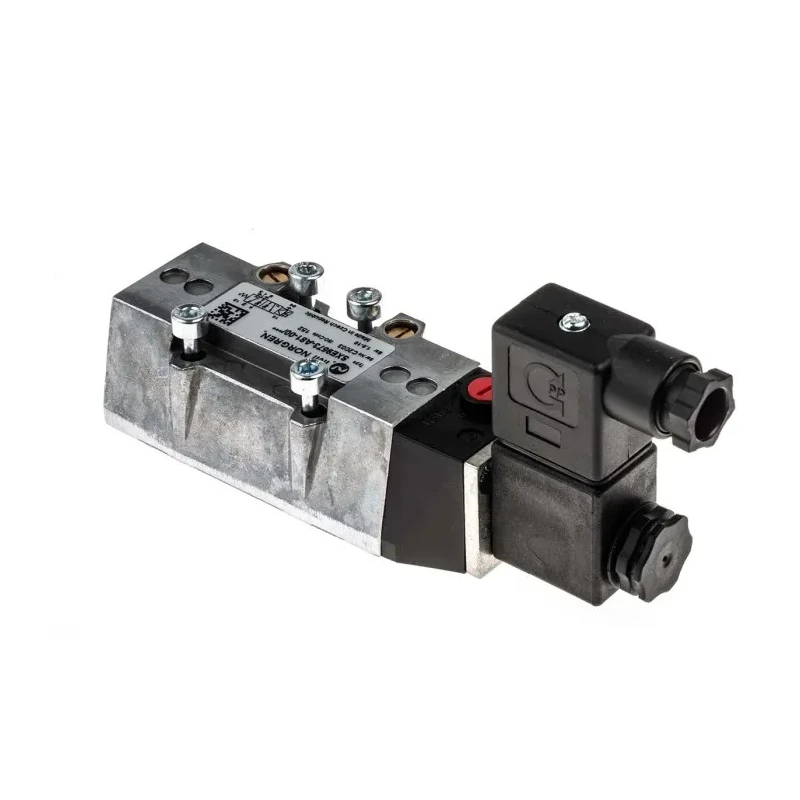

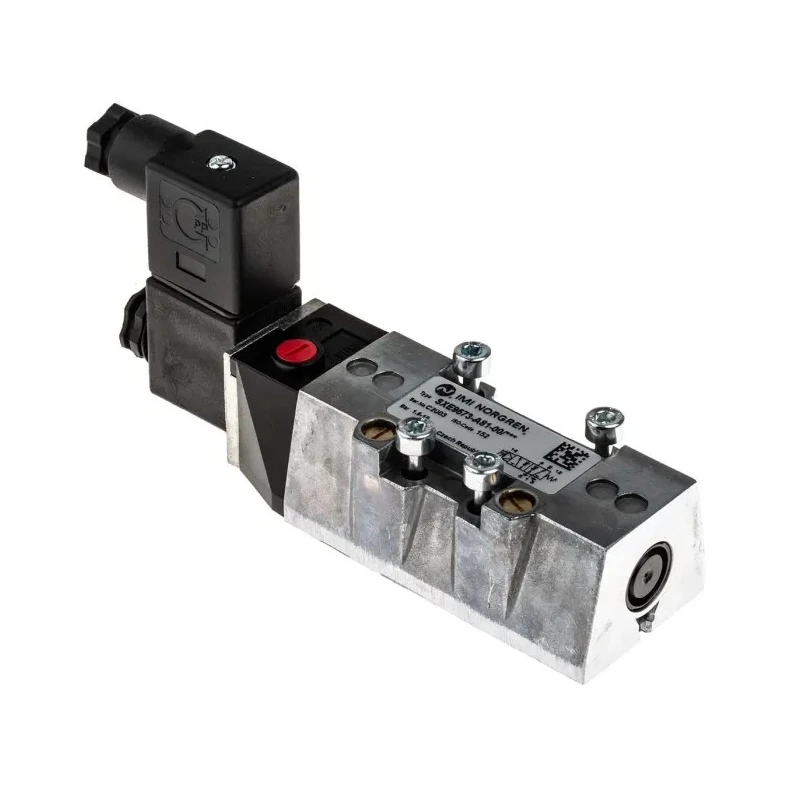

Norgren Pneumatic Solenoid Valve 5/2 Solenoid/Spring, Push-in Port, 110V AC, 10 bar Pressure, Die Cast SXE9573-A81-00/110VAC

Norgren SXE9573-A81-00/110VAC pneumatic solenoid valve is designed to precisely manage airflow in pneumatic systems with its 5/2 solenoid and spring actuation configuration. This valve enables effective control of air supply and exhaust, suitable for pressure-sensitive industrial applications requiring reliability and accuracy.

The valve is constructed from robust die-cast aluminium body ensuring resistance to impacts and corrosion, ideal for demanding environments. Nitrile rubber (NBR) seals contribute to reduced air leakage, supporting system efficiency and operational savings.

Operating at 110V AC, this solenoid valve supports a wide operating pressure range up to 10 bar and a high maximum flow rate of 1230 L/min. Its compact size (207.5mm length x 62.5mm width x 72mm height) and push-in port type facilitate seamless installation on production lines and automation equipment.

Designed for industrial and manufacturing uses, it works over temperature ranges from -15°C to 50°C and supports lubricated air media for versatile deployments. Its extended product life aligns with sustainability goals under RS Better World's initiatives.

Applications include automated assembly lines, bottling plants, material positioning tasks, and logistics industry machinery control. The valve's in-line base mount pattern and DIN electrical connection type ensure compatibility with standard pneumatic systems across global industrial sectors.

Features a 5/2 valve function with solenoid and spring actuation configuration. Constructed from durable die-cast aluminium for corrosion and impact resistance. Supports a maximum operating pressure of 10 bar and flow rate up to 1230 L/min.

Equipped with nitrile rubber (NBR) seals to minimize air leakage during operation. Operates on 110V AC with DIN 43 650 Table ‘B’ electrical connection type. Compact dimensions of 207.5mm length, 62.5mm width, and 72mm height.

Designed to function within temperature ranges from -15°C to 50°C for versatility. Push-in port type and in-line base mount pattern for easy integration. Includes 2 valve positions for efficient pneumatic control. Manufactured in Germany with extended product life claims under RS Better World initiative.
