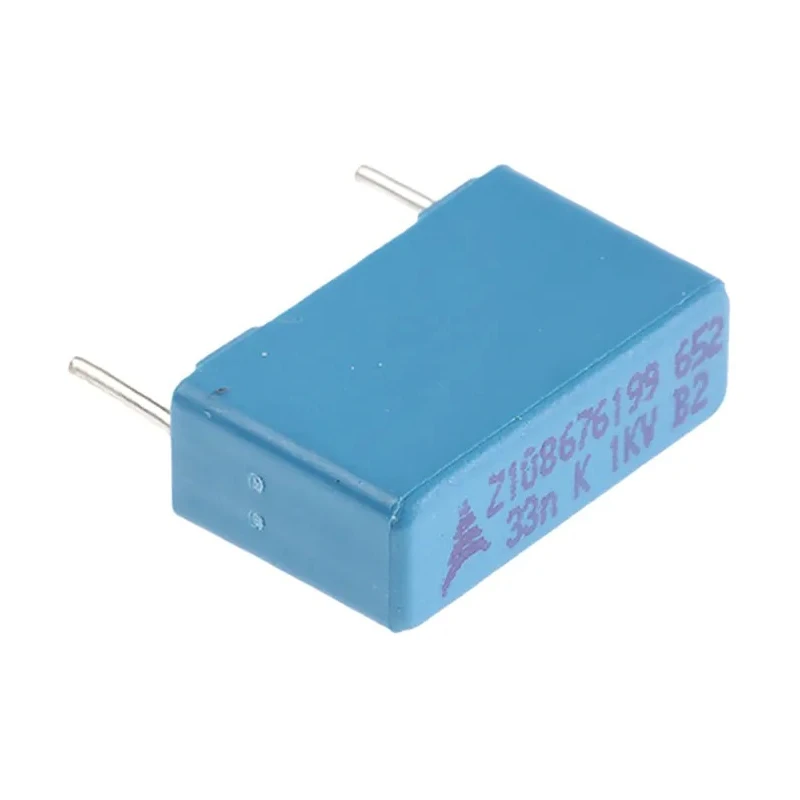

TDK Film Capacitor 33 nF 250V AC 1 kV DC Through Hole 2-Pin B32652A0333K000

TDK B32652A0333K000 film capacitor is a precision passive component featuring 33 nF capacitance, rated for 250V AC and 1 kV DC voltage. It is designed for through hole mounting applications requiring high pulse strength and reliability.

Constructed using wound capacitor technology with an internal series connection, this capacitor achieves voltage ratings of 1250 V DC or higher. The component is encapsulated in a flame retardant plastic case complying with UL 94 V-0 standards and sealed with epoxy resin to provide protection against environmental factors and ensure durability.

Its compact design measures 18 mm in length, 11 mm in height, and 6 mm in width, accommodating a lead pitch of 15 mm and lead diameter of 0.8 mm. This configuration facilitates secure and reliable mounting on printed circuit boards (PCBs).

TDK's film capacitors in the B32652 series are typically employed in demanding electrical applications including TV S-correction, TV flyback transformers, and various electronic ballast circuits. The component is rated for operation up to 100°C and meets the automotive standard AEC-Q200 Rev D, underscoring its suitability for automotive electronics.

Additionally, the capacitor conforms to RoHS and UL safety standards ensuring compliance for industrial, electronic manufacturing, and commercial product assembly environments. High pulse strength and contact reliability for robust performance.

Small dimensions enabling space-efficient PCB layouts. Flame retardant plastic casing with epoxy sealing for enhanced safety. Compliant with automotive and international RoHS/UL standards.

This capacitor is ideal for industrial and electronic systems requiring quality film capacitors with proven reliability and compact size. Explore the comprehensive range of TDK Film Capacitors and electronic components on EnvMart for your design and manufacturing needs.
