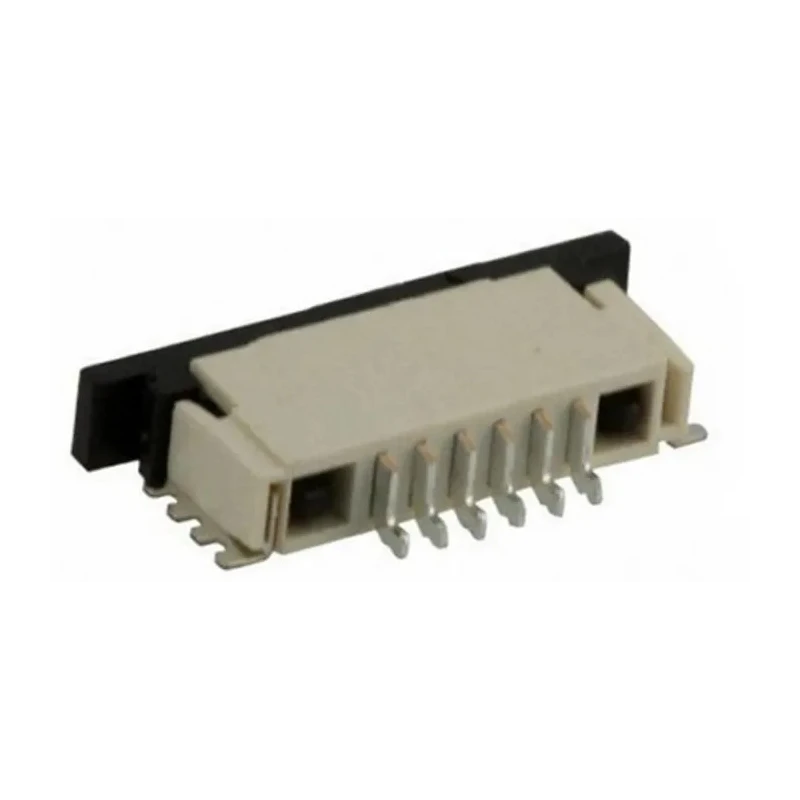

TE Connectivity FPC 1 mm Pitch 6 Way Right Angle Female FPC Connector Solder 84952-6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Model | 84952-6 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | FPC |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Compact 1.0 mm pitch design suitable for space-constrained applications.
- Right angle orientation providing efficient PCB mounting and routing.
- Features six contacts made of phosphor bronze with tin plating for durability.
- Surface mount type with bottom contact position and solder termination.
- Zero Insertion Force (ZIF) locking mechanism ensures secure FPC engagement and longevity.
- Designed for operating voltage up to 200V ac and current rating of 1A.
- Suitable for temperatures from -40°C to 85°C for robust industrial use.
- Housing made from liquid crystal polymer for mechanical strength and heat resistance.
Product Description
TE Connectivity model 84952-6 is a 1 mm pitch, 6-way right angle female FPC Connector designed for professional electronic assemblies requiring compact and reliable flexible printed circuit connections. This surface-mounted connector utilizes solder termination and features a bottom contact position to optimize PCB layout and signal routing.
The connector contacts consist of phosphor bronze material plated with tin, offering excellent conductivity and corrosion resistance. The zero insertion force (ZIF) locking mechanism, combined with a slide lock actuator, allows easy insertion and removal of flexible printed circuits without damage, while ensuring secure mating retention even in high vibration environments.
Rated for a continuous current of 1 ampere and an operating voltage of 200 volts AC, this connector supports applications that demand stable electrical performance. Its operating temperature range from -40°C to 85°C and housing manufactured from heat-resistant liquid crystal polymer make it suitable for diverse industrial and commercial uses.
With a single row of six contacts spaced at 1 mm pitch, this connector effectively provides reliable signal transmission in devices such as handheld scanners, set-top boxes, computers, business machinery, industrial equipment, and medical instruments. The right angle orientation facilitates effective PCB design and cable management.
Compact 1.0 mm pitch design. Right angle orientation for PCB mounting. 6 phosphor bronze tin-plated contacts. Surface mount with solder termination. Zero Insertion Force locking mechanism with slide lock actuator. Rated for 1A current and 200V AC voltage.
Operating temperature from -40°C to 85°C. Liquid crystal polymer housing for durability. Applications include industrial, medical, and commercial electronic devices.
This high-quality connector offers precise, durable, and secure flexible printed circuit connections, meeting the rigorous demands of industrial and commercial applications. Browse other TE Connectivity connectors and components at EnvMart for your next electronic design project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for a continuous current of 1 ampere.
It is rated for an operating voltage of up to 200 volts AC.
The operating temperature range is from -40°C to 85°C.
This model features six contacts.
The contacts are made of phosphor bronze and are plated with tin for improved conductivity and corrosion resistance.
It utilizes solder termination for secure connections.
The connector has a right angle orientation, which facilitates efficient PCB mounting and routing.
It features a Zero Insertion Force (ZIF) locking mechanism, which allows for easy insertion and removal of flexible printed circuits.
The housing is made from liquid crystal polymer, providing mechanical strength and heat resistance.
It is a surface mount type with a bottom contact position to optimize PCB layout.
This connector is suitable for use in handheld scanners, set-top boxes, computers, business machinery, industrial equipment, and medical instruments.
The pitch size is 1 mm, allowing for compact design in space-constrained applications.
