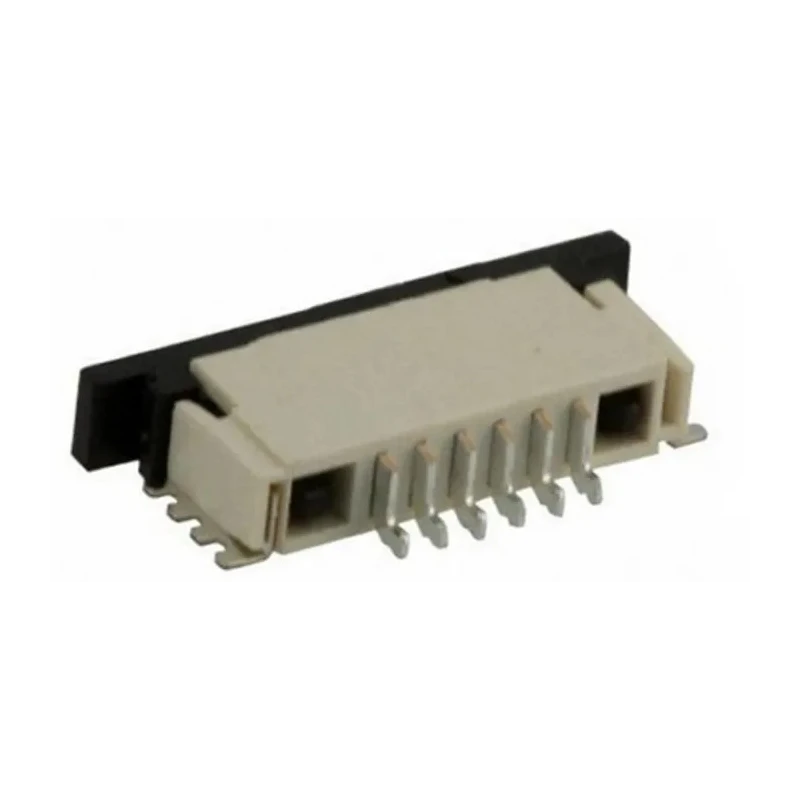

TE Connectivity FPC 1 mm Pitch 6 Way Right Angle Female FPC Connector, Solder 84952-6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Model | 84952-6 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | FPC |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- This FPC connector features six contacts made of phosphor bronze with tin plating for reliable conductivity.
- The connector has a pitch of 1 mm suitable for compact electronic assemblies.
- It supports a current rating of 1 amp and voltage rating up to 200 V AC.
- The ZIF insertion force design ensures easy Zero Insertion Force cable insertion with a slide lock actuator for secure mating.
- The housing is made of durable liquid crystal polymer suitable for operating temperatures from -40°C to 85°C.
- The connector has a right angle orientation with bottom contact position and locking mechanism for retention.
- Ideal for use in handheld scanners, set-top boxes, PCs, business, industrial and medical equipment.
Product Description
TE Connectivity 84952-6 FPC Connector is a high-quality electronic component featuring a 1 mm pitch and 6 contacts configured in a right angle female connector design. It uses solder termination with phosphor bronze contacts plated in tin to ensure excellent connectivity and signal integrity for compact PCB assemblies.
This surface mount FPC connector incorporates a Zero Insertion Force (ZIF) slide lock actuator which simplifies cable insertion and enhances retention, reducing wear on contacts and increasing mating cycle life. The connector housing is made from liquid crystal polymer, providing robustness and stability within the operating temperature range of -40°C to 85°C.
Rated for 1 amp current and 200 V AC voltage, this connector suits a variety of applications that require reliable signal routing in constrained spaces, including handheld scanners, set-top boxes, personal computers, business office equipment, industrial machinery, and medical devices. Its compact and secure design with solder tabs for increased PCB retention adds to its versatility.
The product is designed to meet industrial standards for FPC Connectors, featuring 1 row of contacts in a right angle orientation and locking mechanism enhancing connection security. Such characteristics make it a dependable choice for engineers designing high-performance electronic systems where space and reliability are critical.
This connector provides a compact 6 contact FPC solution with secure slide lock actuator. Phosphor bronze and tin plated contacts deliver durable electrical performance. Designed for surface mount technology with solder termination for strong PCB retention.
Can operate reliably in harsh temperatures ranging from -40°C to 85°C. Zero Insertion Force mechanism minimizes wear and facilitates easy assembly. Ideal for diverse fields including industrial, medical, and consumer electronics.
Right angle orientation allows flexible PCB layout configurations. 1 mm pitch spacing enables use in compact electronic designs. Explore more electronic connectors and components from TE Connectivity on EnvMart, your trusted industrial and electronic parts platform.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a voltage rating of up to 200 V AC.
It supports a current rating of 1 amp.
This model features a pitch of 1 mm, suitable for compact electronic assemblies.
The contacts are made of phosphor bronze with tin plating to ensure reliable conductivity.
It can operate reliably in temperatures ranging from -40°C to 85°C.
The connector uses solder termination for secure PCB retention.
It features a right angle orientation with a bottom contact position.
This model has a total of 6 contacts.
It utilizes a Zero Insertion Force (ZIF) mechanism for easy cable insertion.
The housing is made from liquid crystal polymer, providing stability and robustness.
It is suitable for use in handheld scanners, set-top boxes, PCs, and medical equipment.
The connector is designed as a female connector.
