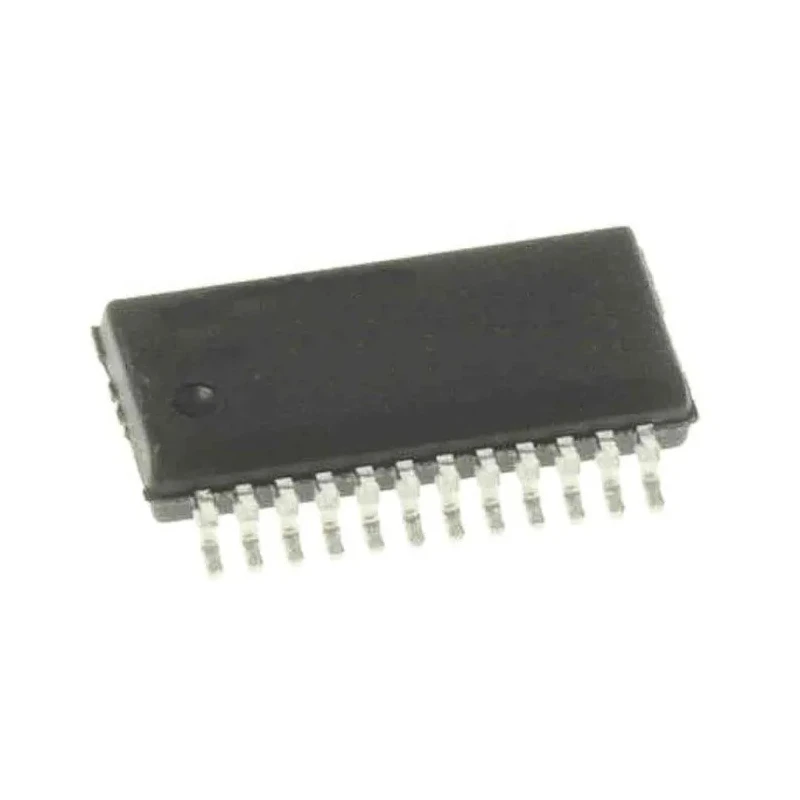

STMicroelectronics 16 Output 16-Bit Constant Current LED Sink Display Driver, Surface Mount, 3-5.5 V, 5 mA to STP16CPC26PTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | STP16CPC26PTR |
| Mount Type | Surface |
| Series | STP16CPC26 |
| Output Current | 5 mA to 90 mA |
| Sub Type | LED Driver |
| Operating Modes | Constant Current |
| Number of outputs | 16 |
| Terminal type | Solder |
| Input Voltage | 3, 5.5V |
| Output Voltage | -0.5, 20V |
| Standards/Approvals | RoHS |
| Dimming Operation | 0 to 100% |
| Primary Type | 16 Bit Constant current LED sink |
| Driver Current | 5, 90mA |
| LED Voltage | 20V |
| Max clock frequency | 30 MHz |
| The STP16CPC26 is housed in four different packages | QSOP24, SO-24, TSSOP-24 and HTSSOP-24 (with exposed pad) |
Key Features
- The device supports 16 constant current output channels for driving LEDs.
- Output current ranges from 5 mA to 90 mA, adjustable via an external resistor.
- Operating voltage supply ranges between 3 V and 5.5 V with a maximum LED voltage of 20 V.
- High-speed 30 MHz clock frequency supports fast data transmission.
- Surface mount type with solder terminals ensures easy PCB integration.
- Features thermal shutdown at 170 °C for protection against overheating.
- Dimming operation supports smooth 0 to 100% LED brightness control via OE pin.
- Compatible packages include QSOP24, SO-24, TSSOP-24, and HTSSOP-24 (with exposed pad).
Product Description
STMicroelectronics STP16CPC26PTR is a 16-output, 16-bit constant current LED sink display driver designed for precise control of LED lighting in electronic components. This surface mount driver operates within a voltage range of 3 to 5.5 V and delivers a regulated current between 5 mA and 90 mA, allowing for efficient power management and flexible LED brightness control.
The device integrates a 16-bit shift register and data latches that convert serial input data into a parallel output format, enabling straightforward interfacing and control. Its high 30 MHz clock frequency ensures suitability for high data rate transmission applications.
With a maximum LED voltage drive capability of 20 V, the STP16CPC26PTR allows multiple LEDs to be driven in series from each current source. The external resistor adjustment feature offers precise current regulation, achieving ±1% bit-to-bit current accuracy.
Designed with robust thermal protection via a thermal shutdown feature activating at 170 °C, this LED driver safeguards against overtemperature damage, ensuring reliable long-term operation in industrial and commercial environments.
The package options available - QSOP24, SO-24, TSSOP-24, and HTSSOP-24 with an exposed pad - are well suited for various PCB layouts and assembly preferences.
Common applications include electronic displays, indicators, signage, and other LED lighting solutions in industrial electronics, automation equipment, and signal processing systems.
Supports 16 constant current output channels for LED driving. Adjustable output current from 5 mA to 90 mA through external resistor. Operates with supply voltage between 3 V and 5.5 V. Maximum 20 V LED voltage drive capability.
High-speed 30 MHz clock input for fast data transfer. Thermal shutdown protection to prevent overheating. Multiple package types including QSOP24 and TSSOP-24 available. Compliance with RoHS environmental standards. Explore our Electronics Components and LED Drivers category for more advanced display driver solutions from STMicroelectronics and other top manufacturers at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output current range of this model is adjustable from 5 mA to 90 mA through an external resistor.
It operates within a supply voltage range of 3 V to 5.5 V.
The maximum LED voltage drive capability is 20 V.
This model supports a maximum clock frequency of 30 MHz, enabling fast data transmission.
It features 16 constant current output channels for driving LEDs.
The available package types include QSOP24, SO-24, TSSOP-24, and HTSSOP-24 with an exposed pad.
Dimming operation supports smooth control of LED brightness from 0 to 100% via the OE pin.
It includes thermal shutdown protection that activates at 170 °C to prevent overheating.
Yes, it complies with RoHS environmental standards.
The terminal type for the STP16CPC26PTR is solder, which facilitates easy PCB integration.
Common applications include electronic displays, indicators, signage, and other LED lighting solutions in industrial electronics.
