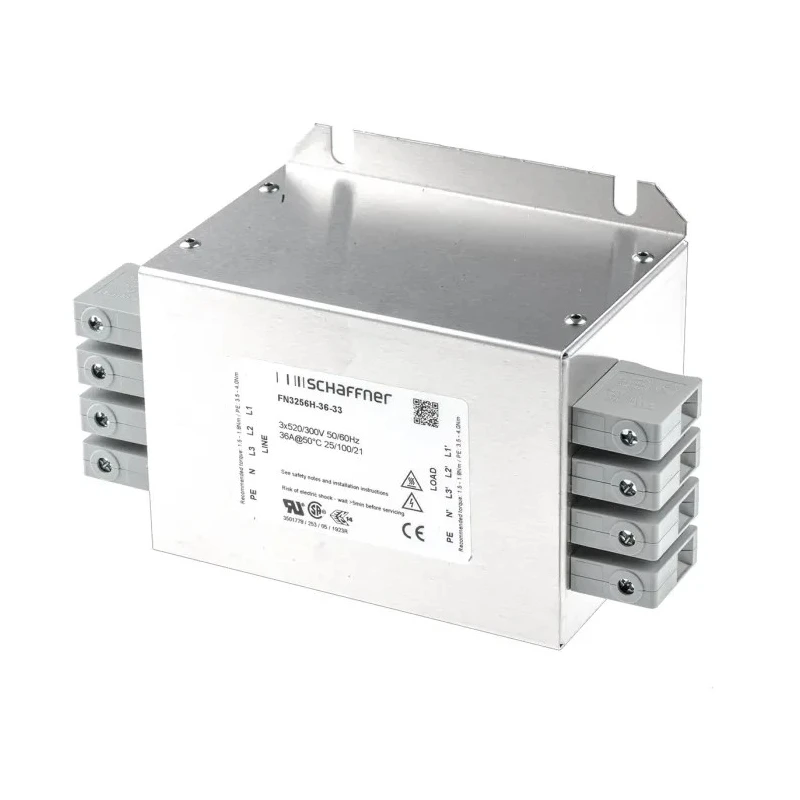

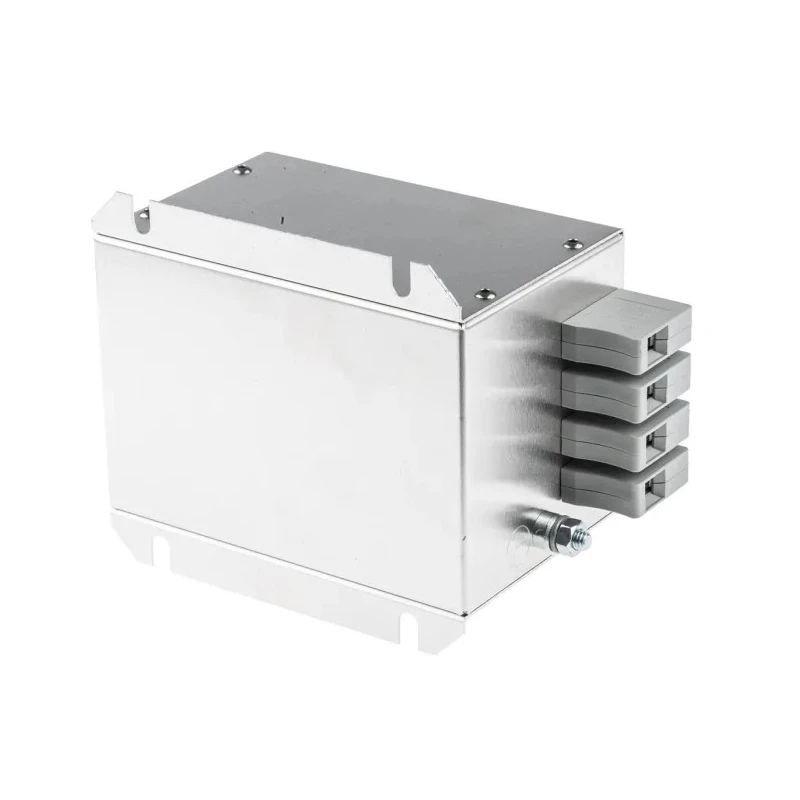

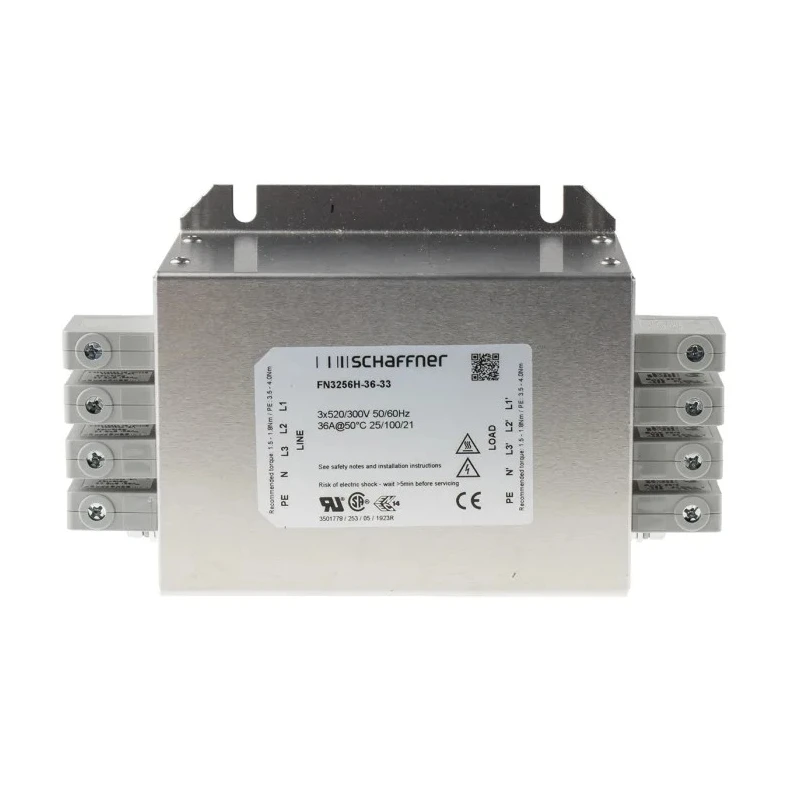

Schaffner Chassis Mount EMI Filter 36 A Maximum Current 520V AC 60Hz Terminal Block 3 Phase FN3256
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Schaffner |
| Height | 85mm |
| Length | 130mm |
| Model | FN3256 |
| Depth | 118mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 60Hz |
| Series | FN3256 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 1500kΩ |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 36A |
| Number of Phases | 3 |
| Leakage Current | 1mA |
| Maximum Voltage | 520V ac |
| Termination Style | Terminal Block |
| Power Loss | 11.3W |
| Schaffner, FN356 36 A 440V ac 60Hz, Chassis Mount EMI Filter, Tab 3 PhaseBrand | Schaffner |
Key Features
- Compact and lightweight chassis mount design optimizes installation space.
- Features a terminal block for secure and easy electrical connections.
- Designed for use with 3-phase power systems ensuring high performance.
- Operates reliably within temperature range -25°C to 100°C.
- Low leakage current of 1mA enhances safety and energy efficiency.
- Built with high resistance of 1500kΩ for robust electrical isolation.
- Power loss is minimized with an efficient 11.3W rating.
- Suitable for variable speed drives, motor drives, frequency inverters, and servo motors.
Product Description
Schaffner FN3256 EMI filter is a chassis mount type designed to handle a maximum current of 36 A and a maximum voltage of 520V AC at 60Hz frequency. The filter features a secure terminal block termination style and is intended for 3-phase power systems.
This EMI filter is compact and lightweight, requiring minimal space in electrical installations and control cabinets. Its solid build includes touch-safe terminal blocks, ensuring safe handling during installation and maintenance.
The device operates reliably under a broad temperature range from -25°C up to 100°C and maintains low leakage current of 1mA, contributing to safe and energy-efficient applications.
With a resistance rating of 1500kΩ and a power loss of only 11.3W, this filter ensures efficient mitigation of electromagnetic interference in industrial power drives and electronics.
Typical industrial use cases include installation in variable speed electrical power drive systems, motor drives for industrial equipment, frequency inverters, and servo motors. This product is essential in maintaining power quality and compliance in sensitive electronic environments.
Compact and lightweight chassis mount design optimizes installation space. Features a Terminal Block for secure and easy electrical connections. Designed for use with 3-phase power systems ensuring high performance. Operates reliably within temperature range -25°C to 100°C.
Low leakage current of 1mA enhances safety and energy efficiency. Built with high resistance of 1500kΩ for robust electrical isolation. Power loss is minimized with an efficient 11.3W rating. Suitable for variable speed drives, motor drives, frequency inverters, and servo motors.
This Schaffner FN3256 EMI filter is manufactured in Thailand and represents a high-quality solution for power electronic system applications.
Explore more from our extensive electronic components catalog on EnvMart to find compatible power line filters and EMI protection devices suitable for diverse industrial environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this EMI filter is 36 A.
It can handle a maximum voltage of 520V AC at a frequency of 60Hz.
This model features a chassis mount design, optimizing installation space.
It operates reliably within a temperature range of -25°C to 100°C.
The leakage current is rated at 1mA, enhancing safety and energy efficiency.
It has a resistance rating of 1500kΩ, providing robust electrical isolation.
The power loss is minimized at an efficient rating of 11.3W.
It is suitable for use in variable speed drives, motor drives, frequency inverters, and servo motors.
The dimensions are 130mm in length, 118mm in depth, and 85mm in height.
This model features a terminal block termination style for secure and easy electrical connections.
It is designed for use with 3-phase power systems.
This EMI filter is manufactured in Thailand.
