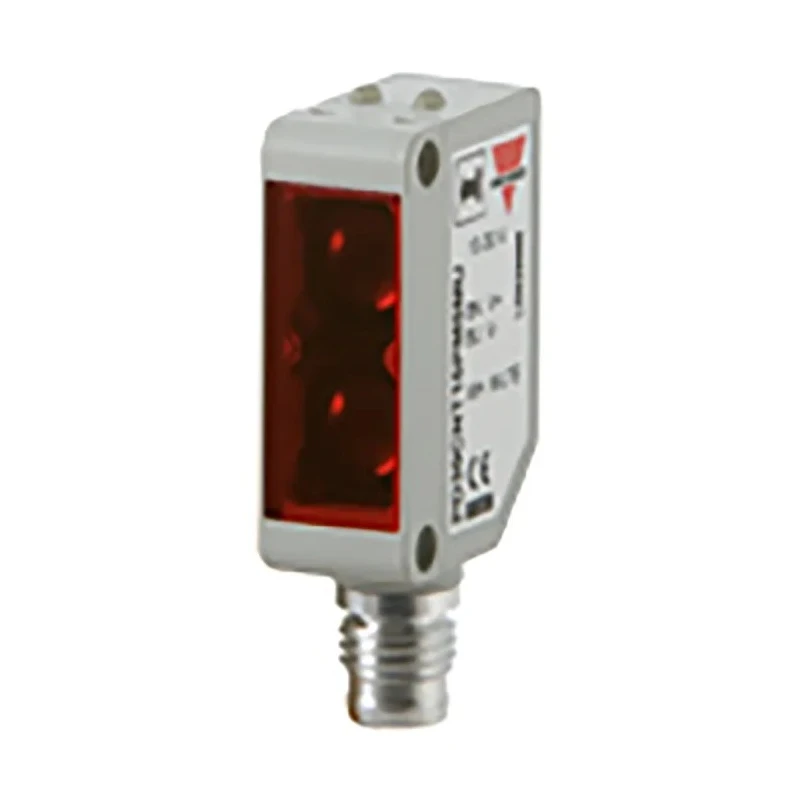

Carlo Gavazzi Through Beam Photoelectric Transmitter Miniature Sensor 15 m Detection Range IP67 PD30CNT15M5

Carlo Gavazzi PD30CNT15M5 is a miniature through beam photoelectric transmitter sensor designed for high-accuracy detection in industrial and automation applications. Housed in a compact reinforced PMMA/ABS enclosure measuring 10 x 30 x 20 mm, the sensor combines excellent performance with a small footprint suitable for confined spaces. The sensor employs modulated infrared light at 850 nm wavelength to detect objects effectively over a range of up to 15 meters.

The product features an M8 connector terminal type for convenient installation and connection. It operates on a supply voltage ranging from 10 to 30 V DC, with a maximum current rating of 25 mA. The output type is preset as either NPN or PNP with a switching output current capacity of 100 mA, supporting both normally open and normally closed switching configurations.

A potentiometer enables sensitivity adjustment allowing customization for varying detection conditions. The sensor has a rapid response time of 1 millisecond, making it suitable for fast-moving applications. Its IP67 rating ensures dust-tight protection and resistance against immersion in water up to a certain depth.

Protection features include short-circuit, reverse polarity, and transient voltage protections that enhance durability and reliability in demanding industrial environments. The sensor meets CSA, IEC, and UL standards, ensuring safety and compliance.

Typical applications include industrial automation systems, manufacturing process monitoring, conveyor controls, and other environments where precise presence or absence detection is critical. Manufactured in Lithuania, this product provides a balance of compact size, sensitivity, and robust construction.

This sensor uses modulated infrared light at 850 nm for reliable detection. Compact reinforced PMMA/ABS housing dimensions of 10 x 30 x 20 mm ensure small size for confined spaces. Features M8 connector terminal type for easy and secure connection.

Includes built-in sensitivity adjustment via potentiometer for flexible application tuning. Offers a response time of 1 ms for fast detection tasks. Supports NPN or PNP preset output switching with 100 mA output current.

Designed for operating voltage between 10 to 30 V DC. Durable housing material provides protection against short circuits, reverse polarity and transient voltage peaks. Certified to CSA, IEC, and UL standards for safety and performance.

Suitable for industrial automation and control gear applications requiring precise object detection. Explore the Electronics & Electricals category at EnvMart to find more sensors and automation components from leading brands like Carlo Gavazzi.
