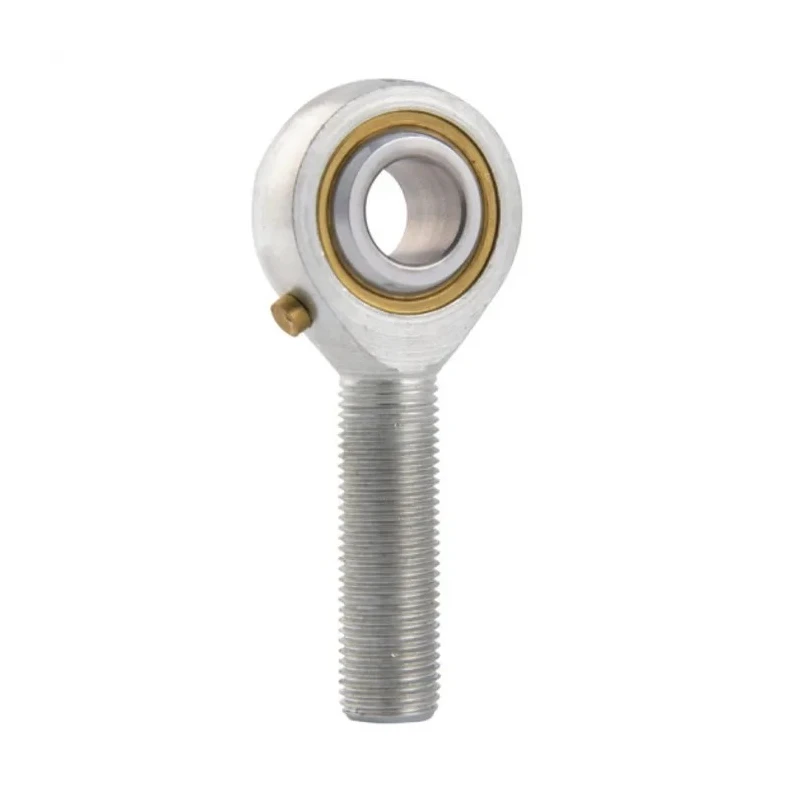

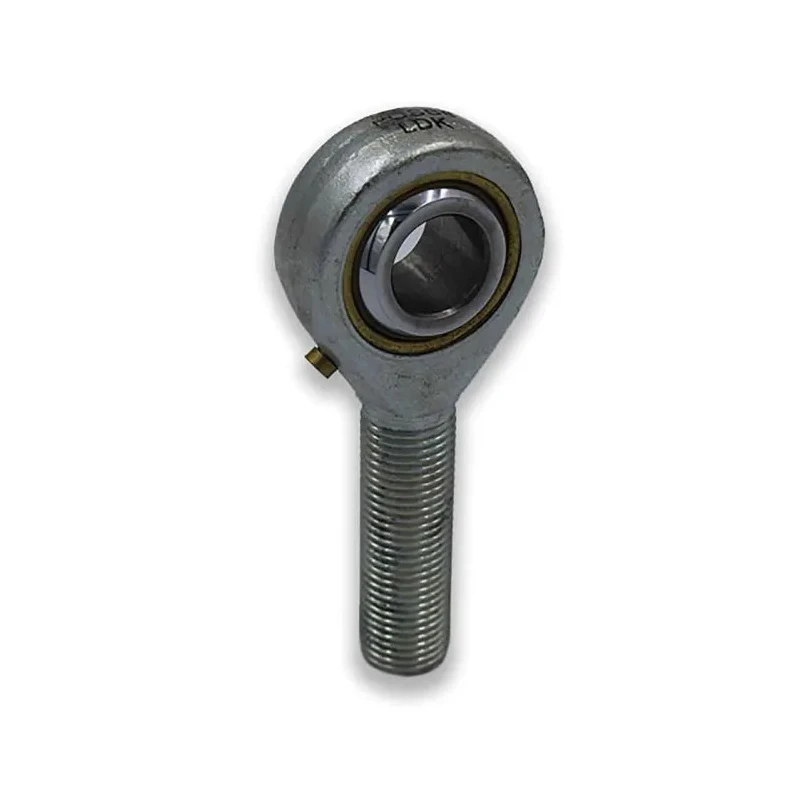

LDK Carbon Steel Rod End UNF, 6.35mm Bore POSB4
Specifications
| Country of Origin | China |
|---|---|
| Brand | LDK |
| Material | Carbon Steel |
| Model | POSB4 |
| Body | Carbon steel,clear Zinc plated |
| BALL | AISI 52100 bearing Steel, heat treated, HRC56 min, Precision ground polished hard chromium plated |
| Overall Width | 49.2mm |
| Outside diameter | 19.05mm |
| Bore Diameter | 6.35mm |
| Thread Standard | UNF |
| Static Load Rating | 6.4kN |
| Dynamic Load Rating | 4.8kN |
| Connection Gender | Male |
| Race | Brass |
| Sliding contact surfaces | Steel/Brass |
Key Features
- Constructed with carbon steel body and clear zinc plating for enhanced corrosion resistance.
- Ball made from AISI 52100 bearing steel, heat treated to HRC56 minimum, precision ground, and hard chromium plated.
- Brass race and steel/brass sliding contact surfaces provide durable and smooth operation.
- Designed with a 6.35mm bore diameter and UNF thread standard for reliable connection.
- Dynamic load rating of 4.8kN and static load rating of 6.4kN ensures performance under varying loads.
- Male connection gender with an outside diameter of 19.05mm and overall width of 49.2mm.
- Manufactured in China with no specific standards or approvals indicated.
Product Description
LDK POSB4 Rod End UNF with a 6.35mm bore diameter is crafted for precise mechanical and industrial rotary bearing applications. It features a robust carbon steel body with clear zinc plating to resist corrosion in demanding environments.
The ball component is manufactured from AISI 52100 bearing steel, known for its hardness and wear resistance, heat treated to a minimum Rockwell hardness of 56 (HRC56), precision ground, and polished with a hard chromium plating to ensure longevity and smooth motion.
The rod end contains a brass race and sliding contact surfaces made of steel and brass to optimize durability and friction reduction during operation.
The product conforms to the UNF thread standard with a male connection gender, providing compatibility with various mechanical assemblies. The dimensions include a 6.35mm bore, 19.05mm outside diameter, and 49.2mm overall width, designed for space-efficient installations.
With static and dynamic load ratings of 6.4kN and 4.8kN respectively, this rod end supports reliable performance under variable mechanical stresses. It is manufactured in China without specified industry standards or certifications.
Carbon steel body with corrosion-resistant clear zinc plating. AISI 52100 bearing steel ball, heat treated and chromium plated for durability. Brass race and steel/brass sliding surfaces for smooth operation. 6.35mm bore diameter with UNF thread standard and male connection gender.
Dynamic load rating of 4.8kN and static load rating of 6.4kN. Outside diameter 19.05mm and overall width 49.2mm for compact design. Suitable for industrial and mechanical rotary bearing applications. Explore more Industrial Tools & Equipment and Rod Ends on EnvMart for compatible components and assemblies.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this rod end is 6.35mm.
The static load rating is 6.4kN, while the dynamic load rating is 4.8kN.
It features a carbon steel body with clear zinc plating, an AISI 52100 bearing steel ball, and brass race with steel/brass sliding contact surfaces.
The rod end conforms to the UNF thread standard.
The overall width is 49.2mm and the outside diameter is 19.05mm.
It has a male connection gender, suitable for various mechanical assemblies.
This rod end is manufactured in China.
The ball is heat treated to a minimum Rockwell hardness of 56 (HRC56).
The ball is precision ground and polished with hard chromium plating for enhanced durability.
It is designed for mechanical and industrial rotary bearing applications.
The clear zinc plating enhances corrosion resistance, making it suitable for demanding environments.
The sliding contact surfaces are made of steel and brass, providing smooth operation.
