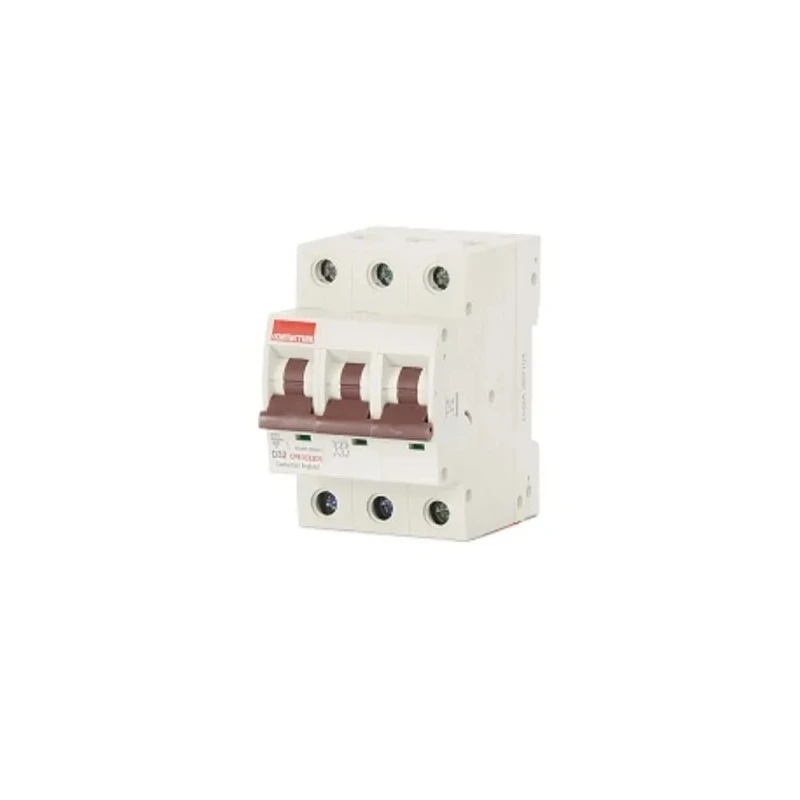

Contactum Miniature Circuit Breaker 3-Pole 32A Type D 415V AC 10 kA Breaking Capacity CPB1032D3
Specifications
| Country of Origin | India |
|---|---|
| Range | Defender B Board |
| Brand | Contactum |
| Operating Temperature | -5 to 40°C |
| Model | CPB1032D3 |
| Depth | 120mm |
| IP Rating | IP4X, IP2X |
| Width | 415mm |
| Mount Type | DIN Rail |
| Current Rating | 32A |
| Series | DDB |
| Breaking Capacity | 10kA |
| Number of Poles | 3 |
| Rated AC Voltage | 415V ac |
| Tripping Characteristics | Type D |
Key Features
- Supports triple pole configuration for three-phase circuits.
- Current rating of 32 amperes suitable for moderate load applications.
- Type D tripping characteristic allows handling high inrush currents.
- Operating voltage of 415 volts AC ideal for industrial and commercial installations.
- High breaking capacity of 10 kiloamperes enhances safety during faults.
- DIN rail mounting ensures easy and standardized installation.
- Complies with BS EN 60529, IEC 61439-3, IEC 60898, and IEC/EN 61009 standards.
- IP4X and IP2X ratings provide dust and finger protection for secure operation.
Product Description
Contactum CPB1032D3 miniature circuit breaker is a highly reliable 3-pole device designed for protecting electrical circuits from overloads and short circuits. It is rated for 32 amperes current with type D tripping characteristics, making it suitable for circuits with high inrush currents such as motors and transformers. The rated AC voltage is 415 volts, supporting industrial and commercial electrical systems.
This miniature circuit breaker features a robust breaking capacity of 10 kA, ensuring enhanced safety by interrupting high fault currents effectively. It is mounted on standard DIN rails, allowing easy integration into electrical distribution panels.
The device meets multiple international standards including BS EN 60529 for ingress protection, IEC 61439-3 for low-voltage switchgear assemblies, IEC 60898 for circuit breakers used in household and similar installations, and IEC/EN 61009 for residual current operated circuit breakers.
With IP4X and IP2X protection ratings, the breaker is safeguarded against solid objects and access to hazardous parts, promoting safety in various environments. Its compact physical dimensions, specifically a depth of 120 mm and width of 415 mm, optimize space utilization in electrical enclosures.
The operating temperature range of -5 to 40°C ensures performance stability under typical environmental conditions encountered in industrial, commercial, and residential scenarios. This product is ideal for use in circuit protection applications across electrical, automation, and control systems.
Supports triple pole configuration for three-phase electrical protection. Rated for continuous current of 32 amperes. Type D tripping characteristic suitable for inductive loads. Operating voltage rated at 415 V AC. High breaking capacity of 10 kiloamperes.
DIN rail mounting for standardized installation. Complies with major international standards ensuring safety and reliability. Ingress protection ratings IP4X and IP2X. Compact depth of 120 mm. Operating temperature range from -5 to 40 degrees Celsius.
Discover more Miniature Circuit Breakers and related electrical protection devices in the Electronics & Electricals category at EnvMart. Ensure your electrical installation safety with Contactum quality circuit breakers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Contactum CPB1032D3 has a current rating of 32 amperes, making it suitable for moderate load applications.
This circuit breaker features a high breaking capacity of 10 kiloamperes, which enhances safety during fault conditions.
It is rated for an operating voltage of 415 volts AC, ideal for industrial and commercial installations.
This model has Type D tripping characteristics, which are suitable for handling high inrush currents typically found in inductive loads like motors and transformers.
The CPB1032D3 has a depth of 120 mm and a width of 415 mm, optimizing space utilization in electrical enclosures.
It features DIN rail mounting, which allows for easy and standardized installation in electrical distribution panels.
The circuit breaker has IP4X and IP2X ratings, providing protection against dust and access to hazardous parts.
The operating temperature range is from -5 to 40 degrees Celsius, ensuring performance stability in various environments.
It complies with multiple international standards including BS EN 60529, IEC 61439-3, IEC 60898, and IEC/EN 61009.
This model is part of the Defender B Board series from Contactum.
The CPB1032D3 is a 3-pole device, designed for protecting three-phase electrical circuits.
It is ideal for circuit protection applications across electrical, automation, and control systems, particularly in industrial and commercial settings.
