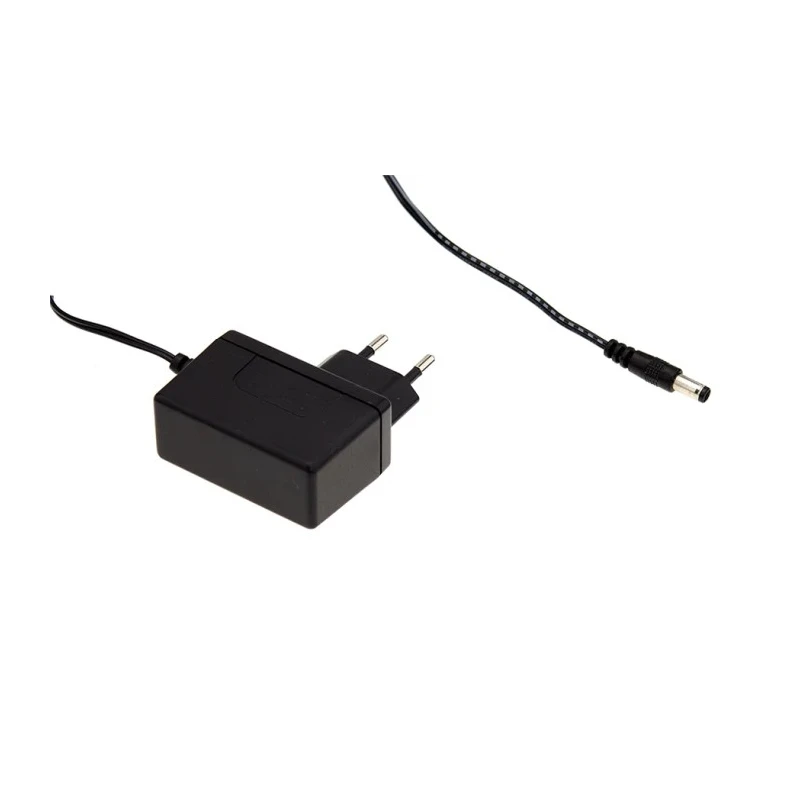

MEAN WELL AC/DC Adapter Type C Plug 264V AC Input 800mA Output 15V DC GSM12E15-P1J
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | MEAN WELL |
| Model | GSM12E15-P1J |
| Cable Length | 1.8m |
| Overall Length | 62.2mm |
| Series | GSM12E |
| Overall Width | 62.2mm |
| Maximum Operating Temperature | 70°C |
| Plug Type | Type C |
| Maximum Input Voltage | 264V ac |
| Protections | Short circuit/ Overload/ Over voltage |
| Maximum Output Current | 800mA |
| Standards/Approvals | CE, IEC 60950-1, UL 60950-1 |
| Minimum Input Voltage | 100V ac |
| Overall Depth | 56.2mm |
| Minimum Output Voltage | 15V dc |
| Input Connector Type | EU Plug |
Key Features
- Equipped with a 1.8m cable for flexible installation.
- EU Type C plug ensures secure and reliable connections.
- Compact dimensions of 62.2mm length, 62.2mm width, and 56.2mm depth.
- Designed for maximum operating temperature up to 70°C for safe usage.
- Includes protections for short circuit, overload, and over voltage.
- Compliant with CE, IEC 60950-1, and UL 60950-1 standards for safety and quality.
- Universal AC input voltage range from 100V to 264V AC.
- Features extremely low leakage current and low no-load power consumption.
Product Description
MEAN WELL GSM12E15-P1J AC/DC Adapter Type C Plug is a medical-grade wall mount power supply unit delivering stable 15V DC output at 800mA current. It supports universal AC input from 100V to 264V, suitable for international voltage standards. This adapter features an EU Type C plug with P1J tuning fork plug, OD 5.5mm, for secure connections.
Constructed to operate reliably up to 70°C, it incorporates protections against short circuit, overload, and over voltage ensuring device safety. Compliance with CE, IEC 60950-1, and UL 60950-1 standards confirms its adherence to international safety requirements.
The adapter is ideal for various electronic devices in industrial, laboratory, healthcare, and commercial applications requiring a compact, reliable power supply solution.
Physical dimensions are 62.2mm length, 62.2mm width, and 56.2mm depth with an attached 1.8m cable to accommodate flexible setup needs. Extremely low leakage current and minimal no-load power consumption enhance its energy efficiency and safety profile.
Equipped with a 1.8m cable for flexible installation. EU Type C plug ensures secure and reliable connections. Compact dimensions of 62.2mm length, 62.2mm width, and 56.2mm depth. Designed for maximum operating temperature up to 70°C for safe usage.
Includes protections for short circuit, overload, and over voltage. Compliant with CE, IEC 60950-1, and UL 60950-1 standards for safety and quality. Universal AC input voltage range from 100V to 264V AC. Features extremely low leakage current and low no-load power consumption.
MEAN WELL products are renowned for their robustness and reliability in power supply solutions. This AC/DC adapter is a versatile choice for powering medical equipment and other sensitive electronics.
Explore more AC/DC Adapters and power supplies from MEAN WELL in EnvMart's Electronics & Electricals category for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output of 15V DC at a maximum current of 800mA.
The adapter features an EU Type C plug with a P1J tuning fork design for secure connections.
The overall dimensions are 62.2mm in length, 62.2mm in width, and 56.2mm in depth.
It is designed to operate reliably at a maximum temperature of 70°C.
This model includes protections against short circuit, overload, and over voltage to ensure device safety.
The adapter comes with a cable length of 1.8m, allowing for flexible installation.
It is compliant with CE, IEC 60950-1, and UL 60950-1 standards, confirming its adherence to international safety requirements.
This model is part of the GSM12E series of power supplies.
It features extremely low leakage current and minimal no-load power consumption, enhancing its energy efficiency.
It is suitable for various electronic devices in industrial, laboratory, healthcare, and commercial applications that require a compact power supply solution.
The country of origin for this adapter is Taiwan.
