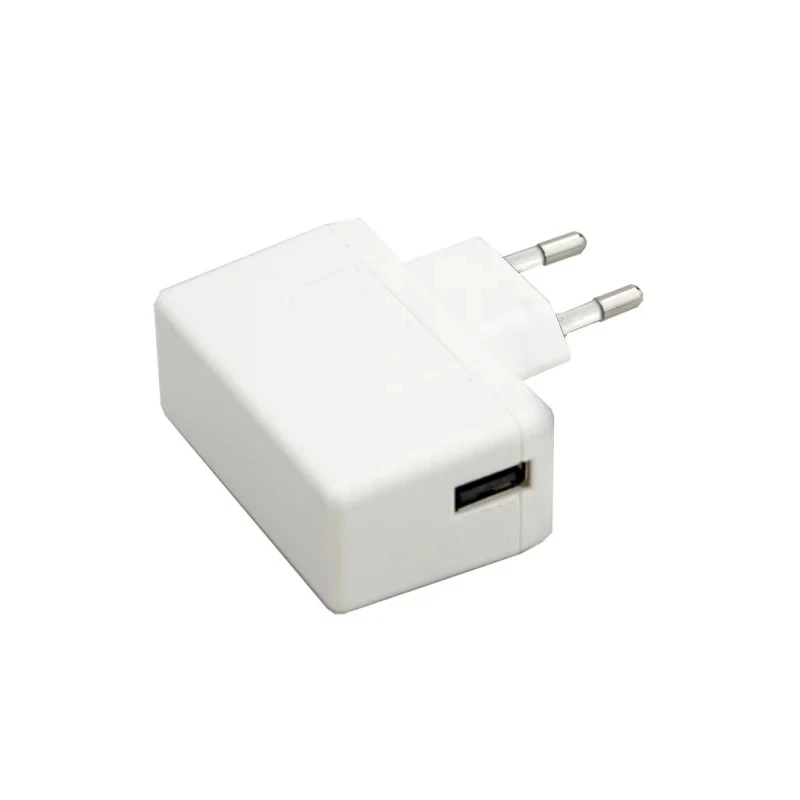

MEAN WELL AC/DC Adapter Type C 264V AC Input, Output 5V DC 2.4A GSM12E05-USB
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | MEAN WELL |
| Model | GSM12E05-USB |
| Cable Length | 1m |
| Overall Length | 62.2mm |
| Series | GSM12E |
| Overall Width | 62.2mm |
| Maximum Operating Temperature | 70°C |
| Plug Type | Type C |
| Maximum Input Voltage | 264V ac |
| Protections | Short circuit/ Overload/ Over voltage |
| Maximum Output Current | 2.4A |
| Standards/Approvals | IEC 60950-1, UL 60950-1, CE |
| Minimum Input Voltage | 100V ac |
| Overall Depth | 56.2mm |
| Minimum Output Voltage | 5V dc |
| Input Connector Type | EU Plug |
Key Features
- Supports input voltage range from 100V to 264V AC for worldwide compatibility.
- Equipped with a 1 meter cable length for flexible placement.
- Compact design with dimensions 62.2mm x 62.2mm x 56.2mm.
- Meets IEC 60950-1, UL 60950-1, and CE standards ensuring safety and compliance.
- Operating temperature up to 70°C for reliable performance in varied environments.
- Includes protections against short circuit, overload, and over voltage.
- Extremely low leakage current and low no-load power consumption for energy efficiency.
- Two MOPP isolation for medical safety applications.
Product Description
MEAN WELL GSM12E05-USB AC/DC Adapter is a medical-grade wall mount power supply delivering a regulated output of 5V DC at 2.4A with USB output and Type C Euro 2-pin plug.
This adapter supports universal AC input voltage from 100V to 264V AC, allowing use across multiple countries and power systems. Its compact size makes it suitable for installations requiring space efficiency, with overall dimensions of 62.2mm in length and width, and 56.2mm in depth.
Designed with safety and efficiency in mind, it complies with IEC 60950-1, UL 60950-1, and CE standards, making it reliable for industrial, medical, and commercial electronic power supply applications.
The device features protective functions including short circuit, overload, and over voltage protection to ensure longevity and user safety. Its extremely low leakage current and minimal no-load power consumption contribute to energy savings.
With a maximum operating temperature rating of 70°C, this adapter maintains stable performance in demanding environments. The 1 meter cable length enhances connectivity flexibility.
Applications include use in industrial tool power supplies, laboratory instruments, commercial electronic devices, and medical equipment requiring reliable 5V DC power through a USB interface.
Country of origin is Taiwan, Province Of China. Product condition is new. Supports input voltage range from 100V to 264V AC for worldwide compatibility. Equipped with a 1 meter cable length for flexible placement. Compact design with dimensions 62.2mm x 62.2mm x 56.2mm.
Meets IEC 60950-1, UL 60950-1, and CE standards ensuring safety and compliance. Operating temperature up to 70°C for reliable performance in varied environments. Includes protections against short circuit, overload, and over voltage.
Extremely low leakage current and low no-load power consumption for energy efficiency. Two MOPP isolation for medical safety applications. Explore more AC/DC Adapters and power supply solutions in EnvMart Electronics & Electricals category for reliable components certified to global standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output of 5V DC at a maximum current of 2.4A.
It supports an input voltage range from 100V to 264V AC, making it suitable for worldwide use.
The overall dimensions are 62.2mm in length, 62.2mm in width, and 56.2mm in depth.
This unit meets IEC 60950-1, UL 60950-1, and CE standards, ensuring safety and compliance.
It includes protections against short circuit, overload, and over voltage to ensure user safety and longevity.
The maximum operating temperature is rated at 70°C, allowing for reliable performance in varied environments.
The adapter comes with a cable length of 1 meter, providing flexibility in placement.
It is suitable for industrial tool power supplies, laboratory instruments, commercial electronic devices, and medical equipment requiring 5V DC power.
The country of origin for this adapter is Taiwan, Province Of China.
It features extremely low leakage current and low no-load power consumption, contributing to energy efficiency.
This product is categorized as customized, so specific requirements or configurations should be confirmed through an enquiry.
