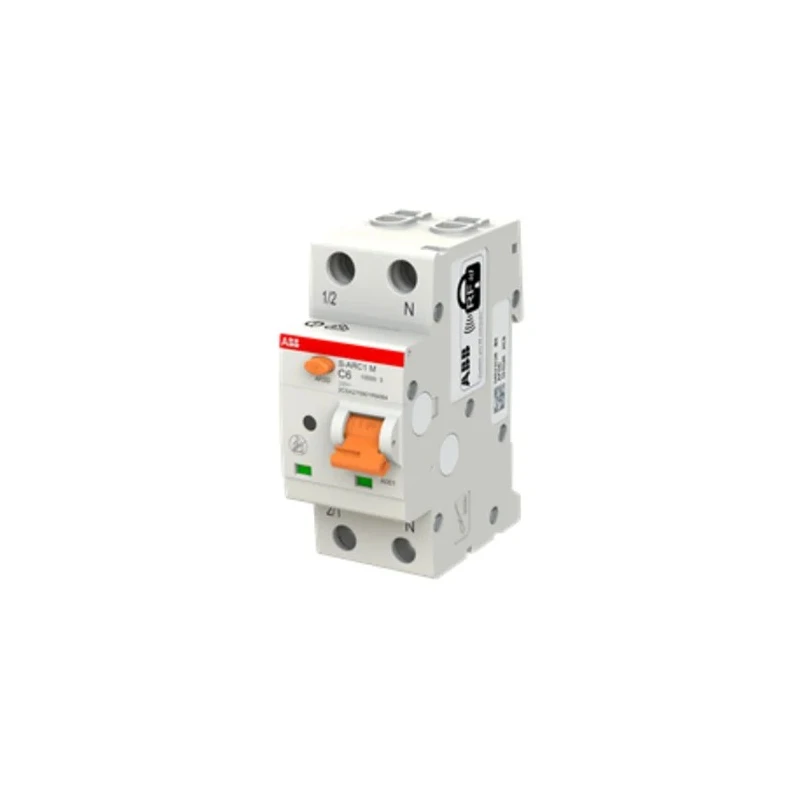

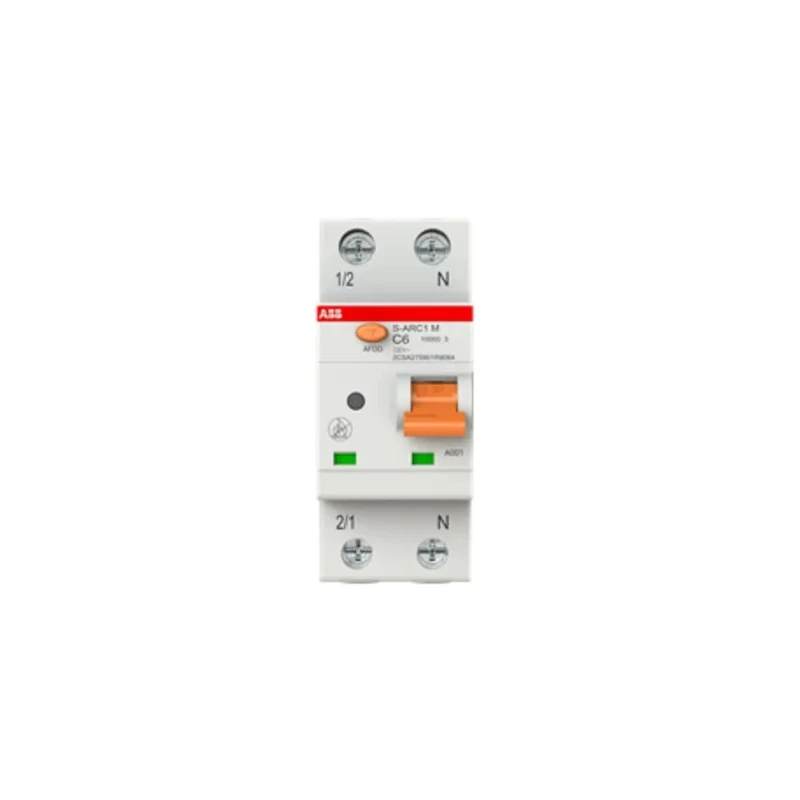

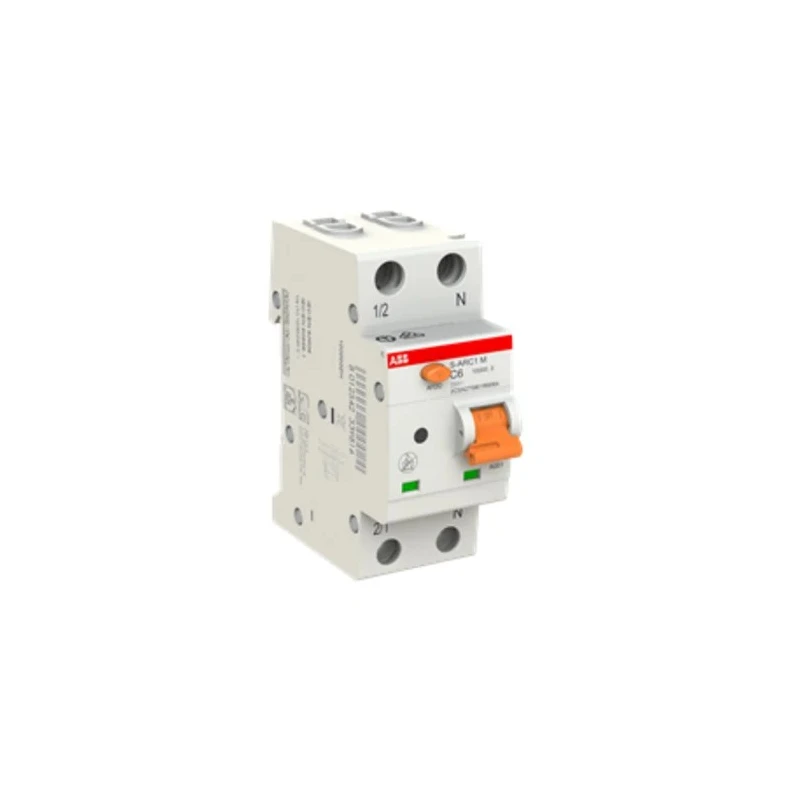

ABB Miniature Circuit Breaker 1-Pole, 6A Current Rating, Type C Tripping, 240V AC, 10 kA Breaking Capacity ARC1

ABB ARC1 Miniature Circuit Breaker model ARC1 is a 1-pole device designed for effective and reliable short circuit protection in electrical systems. Rated at 6A current and 240V AC voltage, this Miniature Circuit Breaker is equipped with Type C tripping characteristics, suitable for handling moderate inrush currents typically found in inductive loads such as motors and automation equipment.

Constructed with a compact 35mm width and compact overall dimensions (85mm height and 69mm depth), it is designed for easy installation on standard DIN rails, making it ideal for residential, commercial, and light industrial electrical installations. The device utilizes a thermal magnetic tripping mechanism to provide swift fault detection and interruption.

The MCB features screw terminals ensuring secure and reliable electrical connections, combined with a toggle switch actuator for straightforward manual resetting after a trip event. With a robust breaking capacity of 10 kA, it is capable of safely interrupting high fault currents to protect wiring and devices.

IP20 and IP40 ingress protection ratings provide adequate safety against accidental contact and dust ingress, suitable for indoor electrical panels. It fully complies with IEC/EN 60898-1 and IEC/EN 60947-2 international safety standards, guaranteeing dependable performance.

Industrial applications include residential circuit protection, automation systems, and commercial electrical installations requiring reliable short circuit interruption. The ABB ARC1 MCB ensures electrical safety, protects devices, and reduces downtime in electrical circuits.

Designed for robust short circuit protection in electrical installations. Suitable for inductive loads with Type C tripping characteristic. Rated for 240V AC operation ensuring compatibility with residential and commercial systems.

Features a 10 kA breaking capacity for handling high fault currents safely. Compact DIN rail mount design with 35mm width for space-efficient installation. Thermal magnetic tripping mechanism provides reliable and fast response.

Screw terminal type ensures secure and stable electrical connections. Toggle switch actuator allows easy manual reset after tripping. IP20 and IP40 ratings for protection against solid objects and limited ingress of dust.

Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards for safety and performance. Explore the Electronics & Electricals category for more circuit protection solutions and ABB products designed to meet your reliable electrical system requirements.
