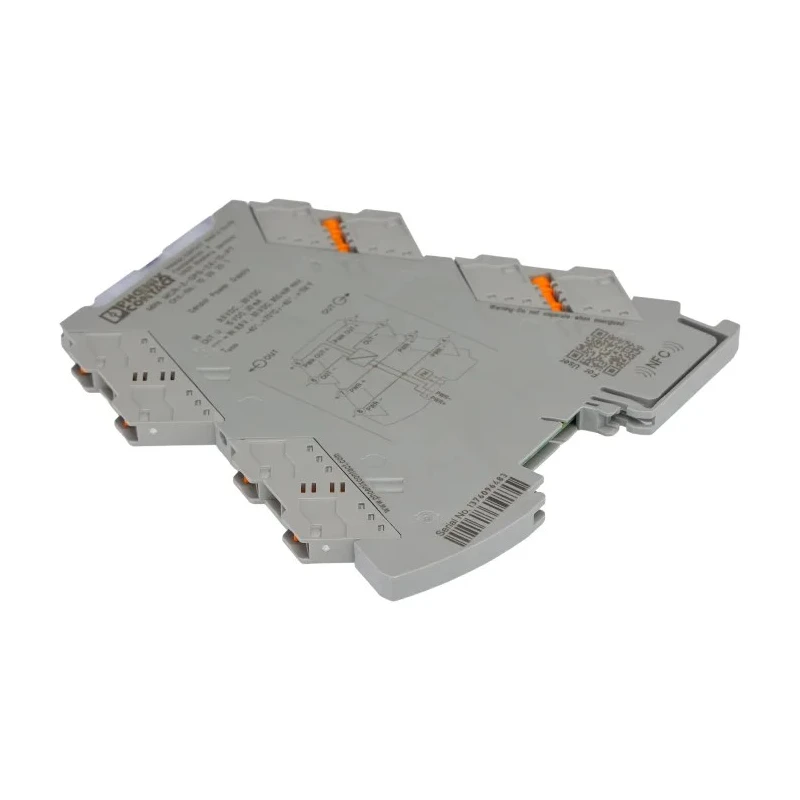

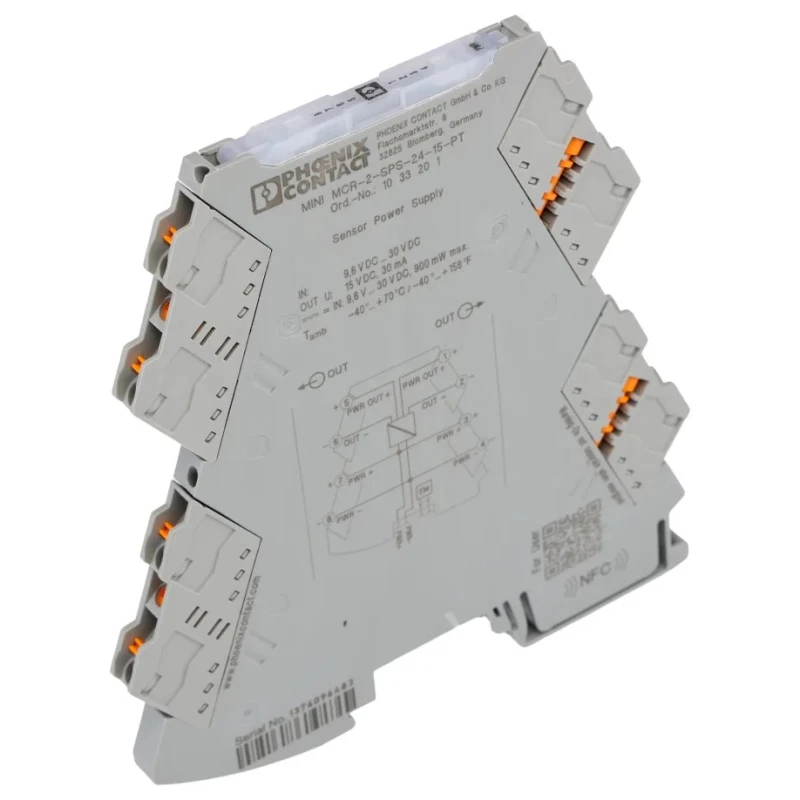

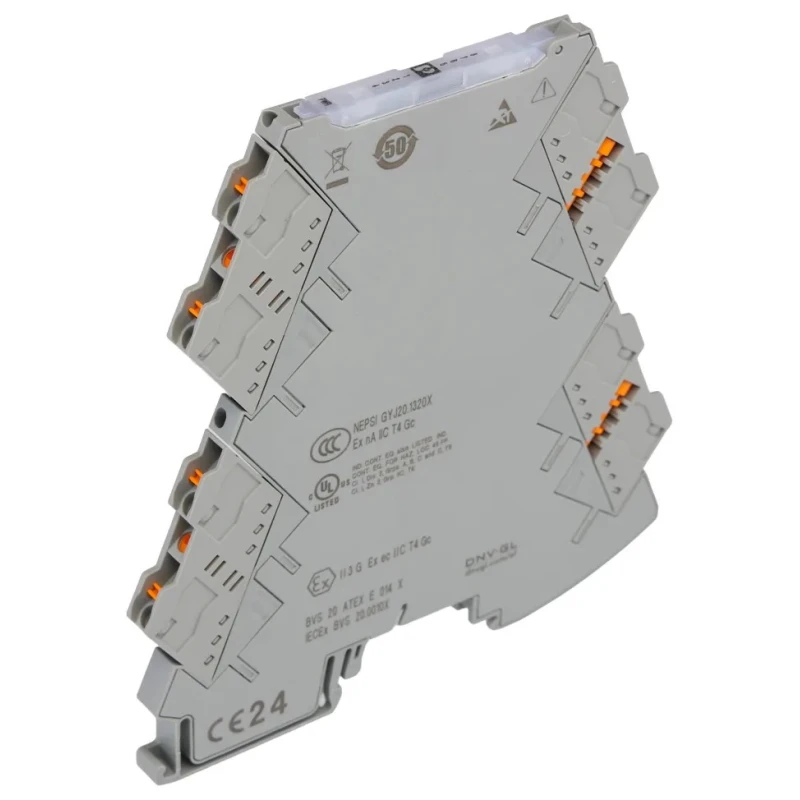

Phoenix Contact MINI MCR Series Signal Conditioner, Voltage Input 9.6-30 V DC, Stable 15 V DC Output, DIN Rail 1033201
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | Input, Voltage Output, 30V dc, 9 |
| Brand | Phoenix Contact |
| Model | 1033201 |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Series | MINI MCR |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Push-in |
| Output Range | 15 V dc |
| Input Range | 9.6 → 30 V dc |
| Supply Voltage | 30, 9.6V dc |
| Hazardous Area Certification | ATEX |
| Input Signal Type | Voltage |
Key Features
- Ensures precise output with a maximum transmission error of ≤ 0.4%.
- Equipped with push-in connection technology for secure and fast wiring.
- Features reinforced insulation enhancing electrical safety and reliability.
- Certified for operation in hazardous areas with ATEX compliance.
- Supports wide supply voltage range from 9.6 to 30 V DC for flexibility.
- Compact DIN rail mounting suitable for industrial control panels.
- Operates reliably in extreme temperatures from -40°C to +70°C.
- IP20 rated protection suitable for standard industrial environments.
Product Description
Phoenix Contact 1033201 MINI MCR Series Signal Conditioner provides a stable and precise voltage output suitable for voltage input signals within the 9.6 to 30 V DC range. Designed specifically to deliver a constant 15 V DC output, this signal conditioner supports a wide array of industrial and automation applications requiring reliable sensor power and signal conditioning.
This unit features a compact design for easy DIN rail mounting, allowing seamless integration into control panels without occupying excessive space. The push-in terminal technology ensures secure connection and straightforward installation, reducing maintenance downtime and ensuring long-term reliability.
Certified with ATEX hazardous area approval, the signal conditioner is suitable for potentially explosive environments, ensuring safety and robustness. Its reinforced insulation provides enhanced electrical safety by preventing faults due to voltage spikes or external disturbances.
Operating over a temperature range of -40°C to +70°C, this device withstands harsh industrial environments with high temperature and humidity conditions, supporting reliable operation in demanding situations. The IP20 rated enclosure protects internal components from accidental contact and dust ingress in controlled environments.
Precise output with transmission error ≤ 0.4% ensures measurement accuracy. Push-in terminal connections facilitate quick and durable wiring. Reinforced insulation for enhanced safety and performance. ATEX certification makes it fit for use in hazardous locations.
Wide supply voltage range from 9.6 to 30 V DC accommodates varying sources. Compact DIN rail mount design optimizes panel space utilization. Wide operating temperature range from -40°C to +70°C with humidity resistance. IP20 rated enclosure suitable for industrial installations.
Green LED status indicator simplifies operational monitoring. Complies with CE, EN, GB/T, and IEC standards for quality assurance.
This Phoenix Contact signal conditioner finds extensive application in industrial automation systems for converting and monitoring voltage signals. It powers sensors that require a steady and reliable voltage source, especially in environments demanding ATEX certification. Its rugged build and compliance with international standards make it an essential component in process control, manufacturing automation, and safety-critical systems. Consider this MINI MCR series unit when precise signal conditioning and stable sensor operation are required under demanding conditions.
Explore more signal conditioning solutions and electrical components at EnvMart for comprehensive industrial automation needs.
Explore more products in our Electrical, Automation & Cables category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is 9.6 to 30 V DC.
This unit provides a stable output voltage of 15 V DC.
The maximum transmission error for this signal conditioner is ≤ 0.4%.
It operates reliably in a temperature range from -40°C to +70°C.
Yes, it is certified for operation in hazardous areas with ATEX compliance.
This unit is designed for DIN rail mounting, making it suitable for industrial control panels.
It features push-in terminal connections for secure and fast wiring.
The device has an IP20 rating, which is suitable for standard industrial environments.
It complies with CE, EN, GB/T, and IEC standards for quality assurance.
It is designed for industrial automation systems, particularly for converting and monitoring voltage signals.
The reinforced insulation enhances electrical safety and reliability by preventing faults due to voltage spikes or disturbances.
The country of origin for this model is Germany.
