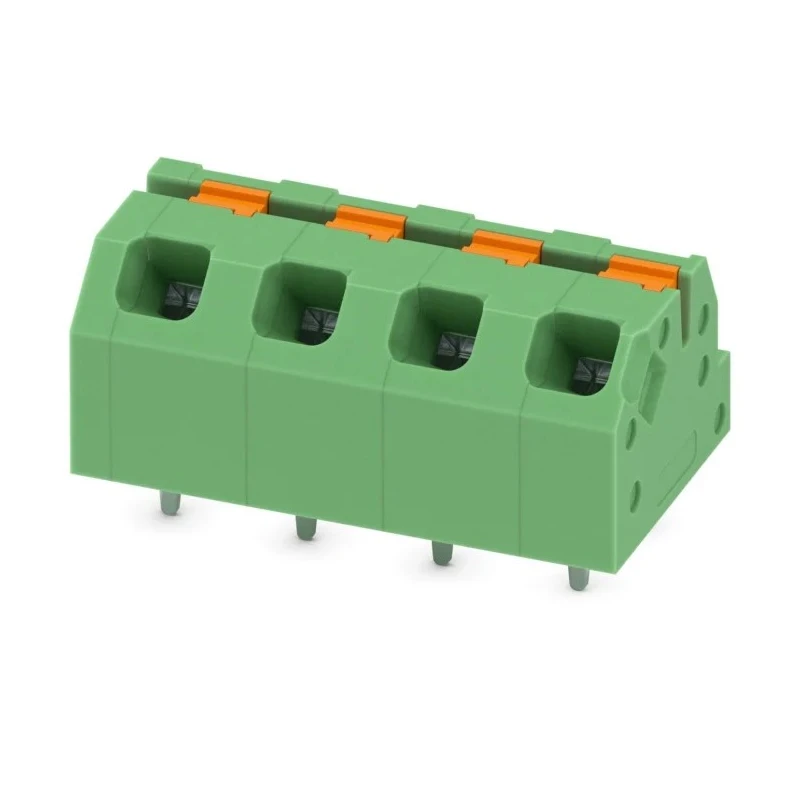

Phoenix Contact SPTAF 1/ 4-5.0-IL Angled Wave Soldering Mount PCB Terminal Block 4 Contacts 5 mm Pitch 16 A 320 V 1862291
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Phoenix Contact |
| Orientation | Angled |
| Current | 16A |
| Model | 1862291 |
| Mount Type | Wave Soldering Mount |
| Housing Material | Polyamide |
| Series | SPTAF 1/ 4-5.0-IL |
| Number of Rows | 1 |
| Pitch | 5mm |
| Standards/Approvals | EU RoHS, cULus Recognised |
| Number of Contacts | 4 |
| PCB Terminal block, nominal current | 16 A, nom. voltage: 320 V, pitch: 5 mm, number of positions: 4, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, colour: green |
Key Features
- Nominal current rating of 16 A ensures robust electrical performance.
- Designed with 4 contact positions for efficient wiring solutions.
- 5 mm pitch spacing supports standard PCB layouts.
- Wave soldering mount type enables secure PCB attachment.
- Angled conductor/PCB connection at 45 degrees facilitates compact design.
- Constructed using durable polyamide housing material for long-lasting use.
- Recognized with EU RoHS compliance and cULus approvals.
- Nominal voltage rating of 320 V suitable for various electronic applications.
Product Description
Phoenix Contact 1862291 PCB Terminal Block from the SPTAF 1/ 4-5.0-IL series is a precision angled wave soldering mount connector designed for printed circuit boards. It features 4 contacts spaced at a 5 mm pitch, supporting a nominal current of 16 A and voltage rating of 320 V, ensuring reliable electrical performance in demanding industrial and electronic applications.
This terminal block utilizes a push-in spring connection mechanism, providing fast and secure wiring without tools. The single-row angled orientation with a 45° conductor to PCB connection optimizes board space and wiring layout. Its polyamide housing ensures durability and electrical insulation, while the green color enhances easy identification during assembly or maintenance.
Recognized by EU RoHS standards and cULus approvals, this product meets stringent safety and environmental requirements, making it suitable for use in a wide range of applications including industrial automation, power electronics, and manufacturing equipment.
Manufactured in Germany, the terminal block delivers premium quality and performance consistency, ideal for reliable PCB interconnections in commercial and industrial environments.
Nominal current rating of 16 A ensures robust electrical performance. Designed with 4 contact positions for efficient wiring solutions. 5 mm pitch spacing supports standard PCB layouts. Wave soldering mount type enables secure PCB attachment.
Angled conductor/PCB connection at 45 degrees facilitates compact design. Constructed using durable polyamide housing material for long-lasting use. Recognized with EU RoHS compliance and cULus approvals. Nominal voltage rating of 320 V suitable for various electronic applications.
Colour coded green for clear identification on PCB assemblies. Made in Germany ensuring premium quality manufacturing standards. Explore more PCB Terminal Block solutions from Phoenix Contact to find fitting components for your electronic assembly needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal current rating of this terminal block is 16 A, ensuring robust electrical performance.
This model has a nominal voltage rating of 320 V, suitable for various electronic applications.
It features 4 contact positions, allowing for efficient wiring solutions.
The pitch spacing is 5 mm, which supports standard PCB layouts.
This unit utilizes a wave soldering mount type, enabling secure PCB attachment.
The conductor connection is angled at 45 degrees to the PCB, facilitating a compact design.
The housing is constructed from durable polyamide, providing electrical insulation.
It is recognized with EU RoHS compliance and cULus approvals, meeting safety and environmental standards.
This product is manufactured in Germany, ensuring premium quality manufacturing standards.
It employs a push-in spring connection mechanism, allowing for fast and secure wiring without tools.
This model is part of the SPTAF 1/ 4-5.0-IL series.
The terminal block is color coded green for clear identification during assembly or maintenance.
