MEAN WELL AC/DC Adapter 264V AC Input 17.4 A Output 13.8 V DC ENP-240-12

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL AC/DC Adapter 264V AC Input 17.4 A Output 13.8 V DC ENP-240-12

Name: MEAN WELL AC/DC Adapter 264V AC Input 17.4 A Output 13.8 V DC ENP-240-12
Brand: MEAN WELL
SKU: 397876
Price: 20.22 USD
Availability: InStock



Category AC/DC Adapters Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Model	ENP-240-12
Overall Length	192mm
EMC Immunity	Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, light industry level, criteria A
Series	ENP-240
Overall Width	178mm
Maximum Operating Temperature	70°C
Maximum Input Voltage	264V ac
Maximum Output Current	17.4A
Standards/Approvals	UL 60950-1, CE, IEC 60950-1
Minimum Input Voltage	85V ac
Overall Depth	45.5mm
Minimum Output Voltage	13.8V dc
EMC Emission	Compliance to EN55022 (CISPR22) class B, EN61000-3-2,-3, FCC PART 15 / CISPR22 class B

Key Features

Supports universal AC input voltage from 85V to 264V AC.
Delivers maximum output current of 17.4 A at 13.8 V DC output voltage.
Provides 240 W rated power with a rugged fanless design.
Meets UL 60950-1, CE, and IEC 60950-1 safety standards.
Includes overload, overvoltage, overtemperature, and short circuit protections.
High efficiency between 91% and 94% with built-in power factor correction.
No-load power consumption under 0.15 W for energy saving.
Complies with EMC emission and immunity standards for industrial use.

Product Description

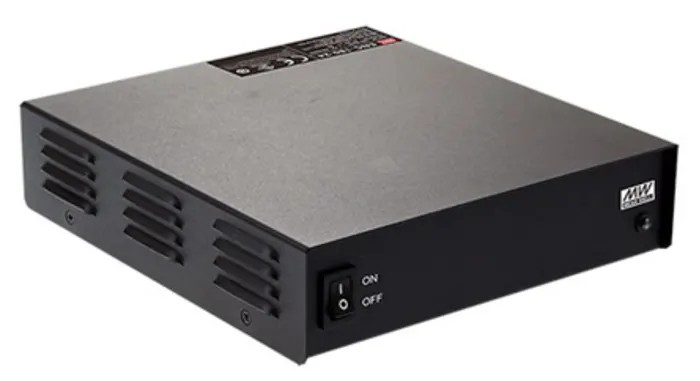

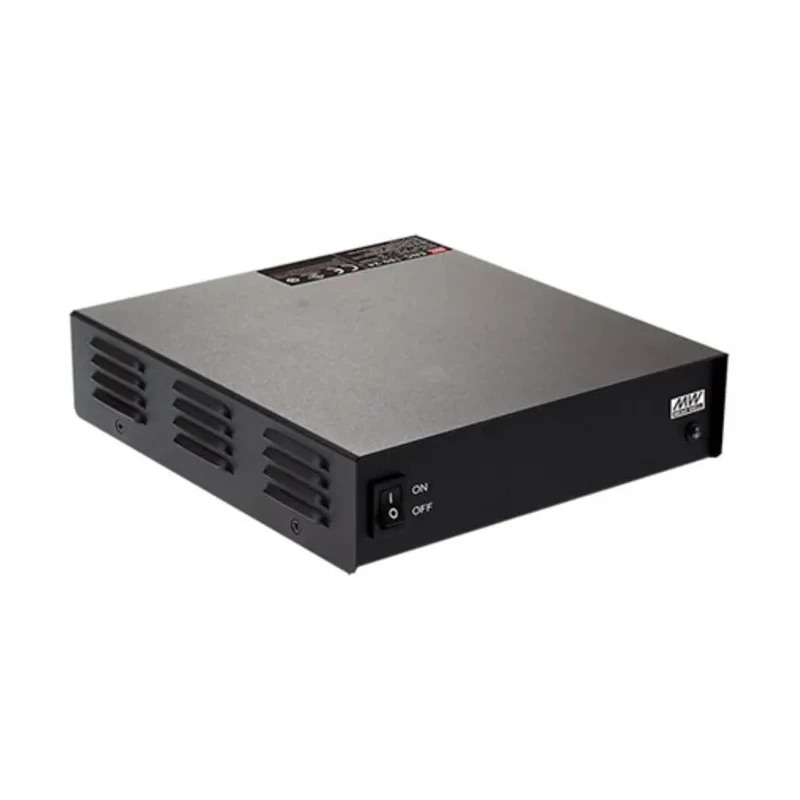

MEAN WELL ENP-240-12 AC/DC Adapter is a desktop power supply designed for high reliability in communication systems and industrial applications. It supports a wide input voltage range of 85V to 264V AC and delivers a stable 13.8V DC output at a maximum current of 17.4 A and rated power of 240 W. Its robust fanless design enables operation within a temperature range of -30°C to +70°C.

The series complies with stringent safety standards including UL 60950-1, CE, and IEC 60950-1, ensuring safe integration into various electrical equipment. The adapter incorporates multiple protections such as overload, overvoltage, overtemperature, and short circuit to prevent damage and enhance operational durability.

Efficiency is optimized between 91% and 94%, and it meets VI level energy efficiency regulations. The device also features a built-in power factor correction function and low standby power consumption under 0.15 W, contributing to energy savings and environmental compliance.

EMC emissions comply with EN55022 (CISPR22) class B, as well as FCC PART 15 and EN61000 series standards for immunity against electrostatic discharge, radiated and conducted disturbances, ensuring reliable performance in industrial and light industry environments.

Supports universal AC input from 85V to 264V AC. Provides 17.4 A maximum output current at 13.8 V DC output voltage. 240 W rated power with fanless convection cooling. Compliance with UL 60950-1, CE, and IEC 60950-1 safety standards.

Comprehensive protection features including overload and short circuit. High efficiency and VI level energy saving compliance. Low no-load power consumption below 0.15 W.

This adapter is well-suited for a variety of industrial and communication uses such as TV antenna facilities, surveillance systems, electric scooter charging stations, and land mobile radio systems. Its wide temperature range and rugged build allow reliable operation in challenging environments.
