Block Toroidal Transformer Dual 115 V ac Primary 2 x 30 V ac Secondary 120 VA RKD 120/2x30

Free Delivery in India | Lowest Global Shipping Charges

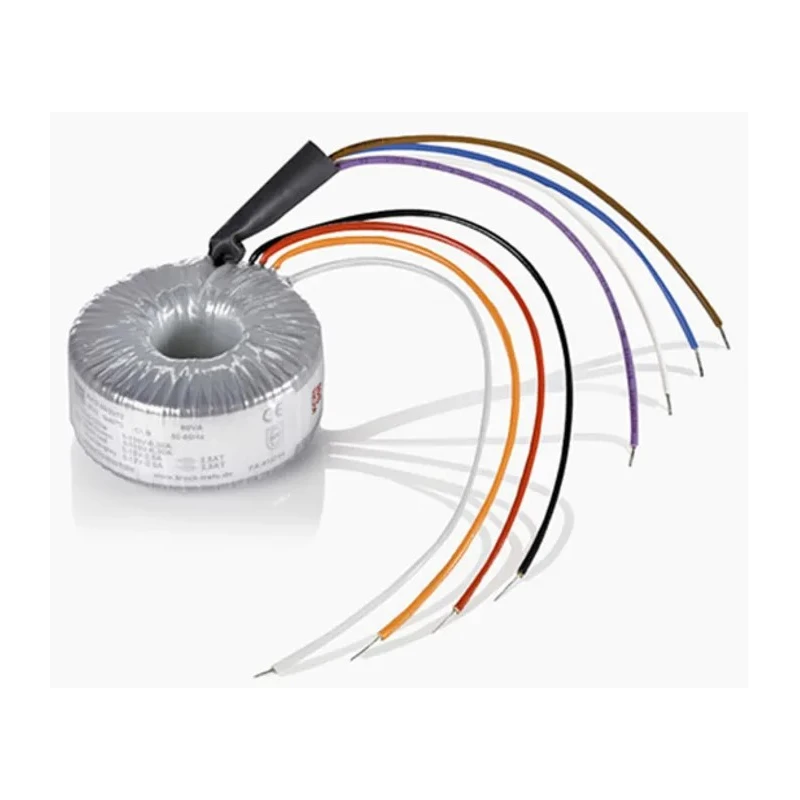

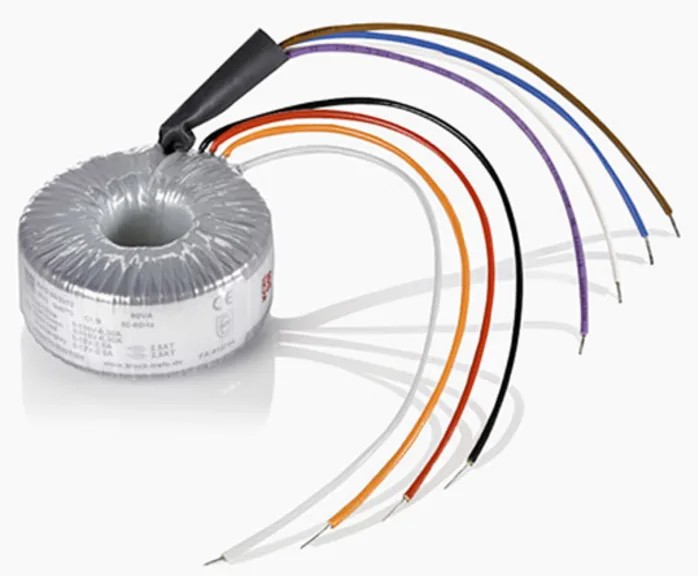

Block Toroidal Transformer Dual 115 V ac Primary 2 x 30 V ac Secondary 120 VA RKD 120/2x30

Name: Block Toroidal Transformer Dual 115 V ac Primary 2 x 30 V ac Secondary 120 VA RKD 120/2x30
Brand: Block
SKU: 397263
Price: 118.25 USD
Availability: InStock



Category Toroidal Transformer Brand Block Condition New

Specifications

Country of Origin	Germany
Diameter	94mm
Brand	Block
Height	46mm
Model	RKD 120/2x30
Gross Weight	1.4kg
Mount Type	Surface
Series	RKD
Termination Type	Wire
Maximum Operating Temperature	40°C
Number of outputs	2
Winding Type	Dual Secondary
Standards/Approvals	cURus, RoHS, UL, EAC
Primary Voltage	2 x 115 V ac
Secondary Voltage	2 x 30 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
Toroid Centre	Open

Key Features

Dual 115 V ac primary winding suitable for 50/60Hz frequency operation.
Two independent 30 V ac secondary outputs for versatile usage.
Compact toroidal design reduces magnetic field radiation and induced noise.
Surface mount type with wire termination for easy installation.
Lightweight construction weighing 1.4 kg with 94 mm diameter and 46 mm height.
Open toroid center with dual secondary winding configuration.
Maximum operating temperature of 40°C ensures reliable performance.
Meets cURus, RoHS, UL, and EAC standards for safety and compliance.

Product Description

Block RKD 120/2x30 toroidal transformer provides high efficiency power transformation with dual 115 V ac primary windings operating at 50Hz to 60Hz frequency. Designed for industrial and electronic component applications, this transformer offers 2 x 30 V ac secondary outputs delivering 120 VA power capacity. Its surface mount wire termination design facilitates straightforward installation.

The toroidal construction minimizes radiated magnetic fields and significantly reduces induced electrical noise (hum), resulting in quieter operation. Built with an open toroidal center and dual secondary windings, it supports flexible connection in series or parallel configurations.

With a compact diameter of 94 mm and height of 46 mm, the transformer weighs only 1.4 kg, making it suitable for space-constrained environments. Its maximum operating temperature is 40°C, ensuring stable and durable performance under normal electrical loads.

This model complies with international standards including cURus, RoHS, UL, and EAC, reflecting its quality and safety for industrial, laboratory, and commercial electrical power supply uses. The transformer is manufactured in Germany, assuring high build quality.

Dual 115 V ac primary windings for 50/60Hz operation. Two 30 V ac secondary outputs supporting various output configurations. Low magnetic flux and minimal electrical noise due to toroidal design. Surface mount installation type with wire termination.

Compact size with 94 mm diameter and 46 mm height. Lightweight at 1.4 kg for easy handling and integration. Maximum operating temperature of 40°C. Certified to cURus, RoHS, UL, and EAC standards. Manufactured in Germany with high quality control.

This Block Toroidal Transformer is ideal for integration in industrial machines, electronic devices, power supply units, laboratory instruments, and HVAC systems where reliable low noise power transformation is critical. Explore more transformers and power supplies in the Electronics & Electricals category at EnvMart.
