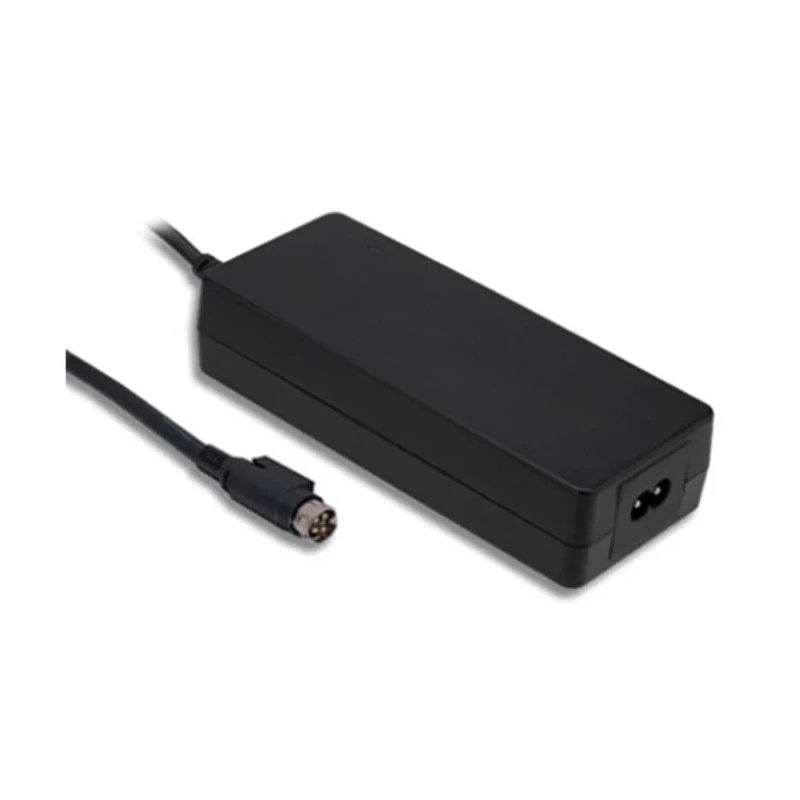

MEAN WELL AC/DC Adapter Type C 264V AC Input 6.67 A Maximum Output Current 24 V DC GSM160B24-R7B
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Model | GSM160B24-R7B |
| Cable Length | 1200mm |
| Overall Length | 175mm |
| Series | GSM160B |
| Overall Width | 72mm |
| Maximum Operating Temperature | 70°C |
| Plug Type | Type C |
| Maximum Input Voltage | 264V ac |
| Maximum Output Current | 6.67A |
| Standards/Approvals | IEC 60950-1, CE, UL 60950-1 |
| Minimum Input Voltage | 80V ac |
| Overall Depth | 35mm |
| Minimum Output Voltage | 24V dc |
| Input Connector Type | IEC 320-C8 |
| Better World Verification | UL Energy Verified |
Key Features
- Equipped with Type C plug and IEC 320-C8 input connector type for universal compatibility.
- Supports wide input voltage range from 80 V AC to 264 V AC for flexible operation.
- Compact dimensions with 175mm length, 72mm width, and 35mm depth to fit various installations.
- Medical safety approved with Class 2 power and integral active PFC function.
- Fanless design ensures silent operation and supports maximum operating temperature up to 70°C.
- Efficiency rating of up to 94% with very low no-load power consumption below 0.15 W.
- LED indication for power status to enable easy visual monitoring.
- Complies with IEC 60950-1, CE, and UL 60950-1 safety standards.
Product Description
MEAN WELL GSM160B24-R7B AC/DC Adapter is a high-quality medical grade desktop power supply offering 160 W of reliable power for a wide range of industrial and medical applications. It features a Type C plug and IEC 320-C8 input connector, supporting an extensive input voltage range of 80 V AC to 264 V AC.
This adapter provides a stable 24 V DC output voltage with a maximum output current of 6.67 A, featuring an efficiency rating of up to 94% and extremely low no-load power consumption below 0.15 W. The fanless design supports silent operation within a maximum operating temperature of 70°C, making it suitable for usage in sensitive clinical environments.
The device is medical safety approved with Class 2 power certification and is constructed with a fully enclosed casing adhering to 94V-0 flame retardant standards. Integrated active power factor correction (PFC) and comprehensive protection features such as short circuit, overload, over voltage, and over temperature protection ensure robust and safe operation.
LED indication enables clear power status monitoring. The compact size, measuring 175mm in length, 72mm in width, and 35mm in depth with a 1200mm cable length, suits various industrial, laboratory, medical, and commercial power supply needs.
Typical applications include mobile clinical workspaces, breath machines, medical computer monitors, oral irrigators, and portable hemodialysis machines. It meets international safety standards IEC 60950-1, CE, and UL 60950-1, along with environmental certifications including UL Energy Verified and Level VI energy efficiency rating. Manufactured in China.
Equipped with Type C plug and IEC 320-C8 connector for universal input. Wide input voltage range of 80 V AC to 264 V AC ensures versatile usage. Medical safety approved with integral active PFC for high power quality. Fanless design supports working temperatures up to 70°C with silent operation.
Multiple protections: short circuit, overload, over voltage, over temperature. LED power status indication for operational monitoring. Compact size and 1200 mm cable length for easy installation. Efficiency up to 94% with below 0.15 W no-load consumption.
Compliance with IEC 60950-1, CE, UL 60950-1 safety standards. Suitable for medical and industrial applications. Explore EnvMart for more quality AC/DC Adapters and industrial power supplies to meet all your electronic power management requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this model is 6.67 A.
It supports a wide input voltage range from 80 V AC to 264 V AC.
The adapter provides a stable output voltage of 24 V DC.
The overall dimensions are 175 mm in length, 72 mm in width, and 35 mm in depth.
The cable length is 1200 mm.
Yes, it complies with IEC 60950-1, CE, and UL 60950-1 safety standards.
The maximum operating temperature is 70°C.
It uses a Type C plug and has an IEC 320-C8 input connector type.
The efficiency rating can reach up to 94%, with very low no-load power consumption below 0.15 W.
It includes protections for short circuit, overload, over voltage, and over temperature.
Yes, it is medical safety approved with Class 2 power certification, making it suitable for medical applications.
This power supply is manufactured in China.
