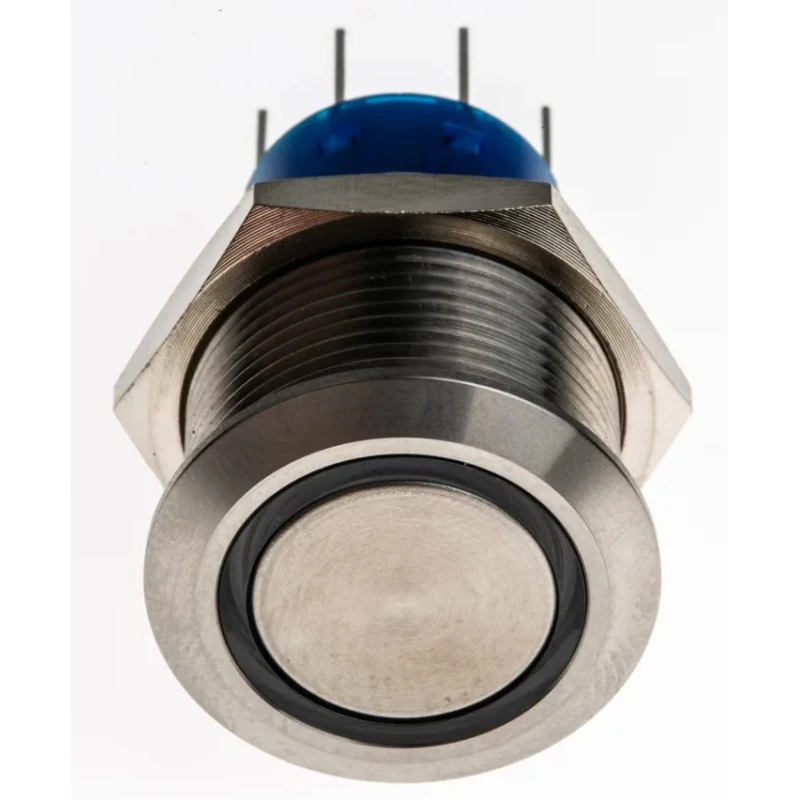

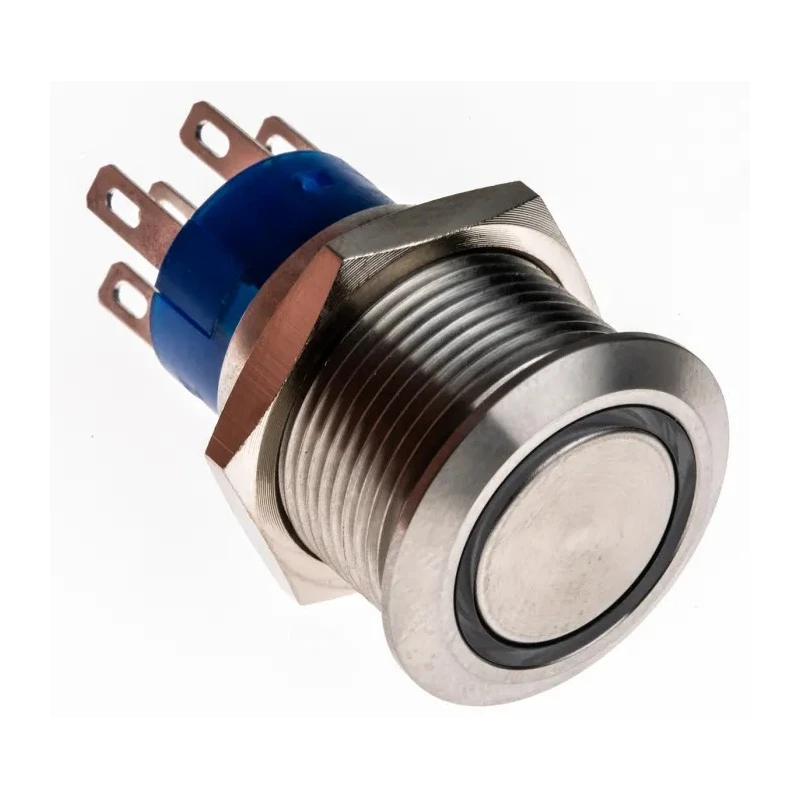

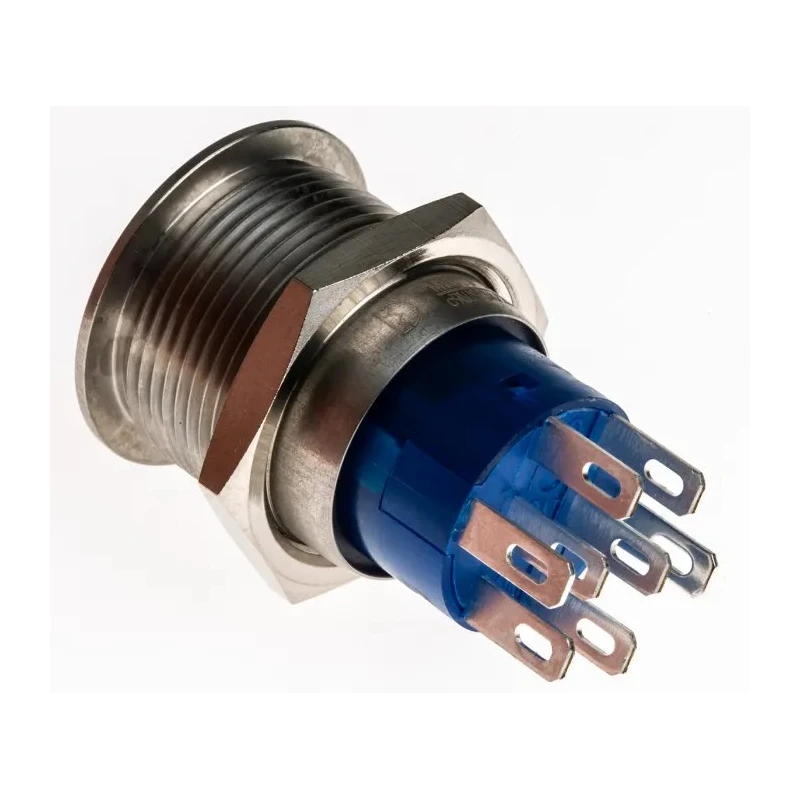

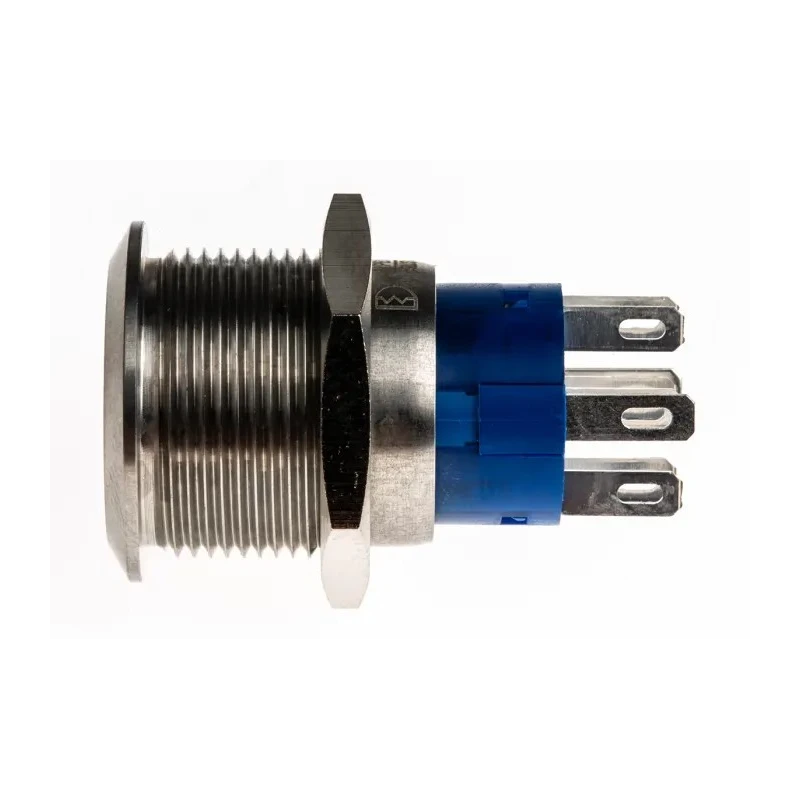

RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 19.2 mm Cutout, DPDT, White LED, IP67, 250 V AC 5A 111-5800
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 111-5800 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19.2 mm |
| Terminal type | Solder Pin |
| Standards/Approvals | cULus Recognized E 187490, ENEC 18, IK10 |
| LED Colour | White |
| Switch Operation | Latching |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Round |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
Key Features
- The panel mount switch requires a 19.2 mm cutout size for installation.
- Configured with DPDT contacts enabling versatile circuit connections.
- Silver actuator with round style enhances user interface comfort.
- The IP67 rating ensures protection against dust and water ingress.
- Suitable for operating temperatures ranging from -20°C to 55°C.
- Supports AC and DC contact voltages up to 250 V with 5A contact current rating.
- Construction includes solder pin terminals for reliable electrical connections.
- Silver plated copper contacts ensure firm connection and long service life.
Product Description
RS PRO 111-5800 is a high-quality Illuminated Push Button Switch designed for industrial and commercial panel mounting applications. It features a latching switch operation and is illuminated with a white LED to provide clear indication of switch status. The switch fits a panel cutout size of 19.2 mm, making it suitable for space-restricted installations.
The device uses DPDT (Double Pole Double Throw) contact configuration allowing for multiple circuit operation with a reliable 5A contact current rating. Its IP67 ingress protection rating guarantees reliable performance even in dusty and wet environments, ensuring durability and longevity.
The actuator is silver-colored in a round style for easy and tactile operation. The switch has solder pin terminals to provide secure and stable electrical connections. It supports contact voltages of up to 250 V AC and DC, making it versatile for various electrical applications.
Featuring silver plated copper contacts, the switch delivers firm and corrosion-resistant contact performance, essential for industrial control gear, medical equipment, and communications systems. Operating temperature ranges from -20°C to a maximum of 55°C, suitable for many environment conditions.
The panel mount push button switch requires a 19.2 mm cutout dimension for installation. Contains a latching switch mechanism for maintained ON/OFF states. Illuminated with a white LED for visual status indication. Double Pole Double Throw (DPDT) contact configuration supports complex control circuits.
IP67 rated for dust and water resistance, ideal for harsh industrial environments. 5 Amp contact current rating for reliable electrical load handling. Solder pin terminals provide secure electrical connections. Silver actuator with a round style enhances user experience.
Complies with safety and performance standards including cULus Recognized, ENEC 18, and IK10 impact rating. Country of Origin: China.
This RS PRO illuminated Push Button Switch is widely used in industrial automation, control panels, medical devices, and communication equipment. It is designed to meet demanding industrial standards and provides reliable long-term performance.
Explore the extensive range of RS PRO switches and industrial components available on EnvMart to meet your automation and control system requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile circuit connections.
The maximum operating temperature for this switch is 55°C.
It has an IP67 rating, ensuring protection against dust and water ingress.
The switch requires a panel cutout size of 19.2 mm for proper installation.
The switch has a contact current rating of 5A, suitable for reliable electrical load handling.
It uses solder pin terminals for secure and stable electrical connections.
The switch is illuminated with a white LED, providing clear visual status indication.
The minimum operating temperature is -20°C, making it suitable for various environmental conditions.
It complies with safety and performance standards including cULus Recognized, ENEC 18, and IK10 impact rating.
The actuator is designed in a round style and is silver in color, enhancing user interface comfort.
Yes, it supports contact voltages of up to 250 V for both AC and DC applications.
It is widely used in industrial automation, control panels, medical devices, and communication equipment.
