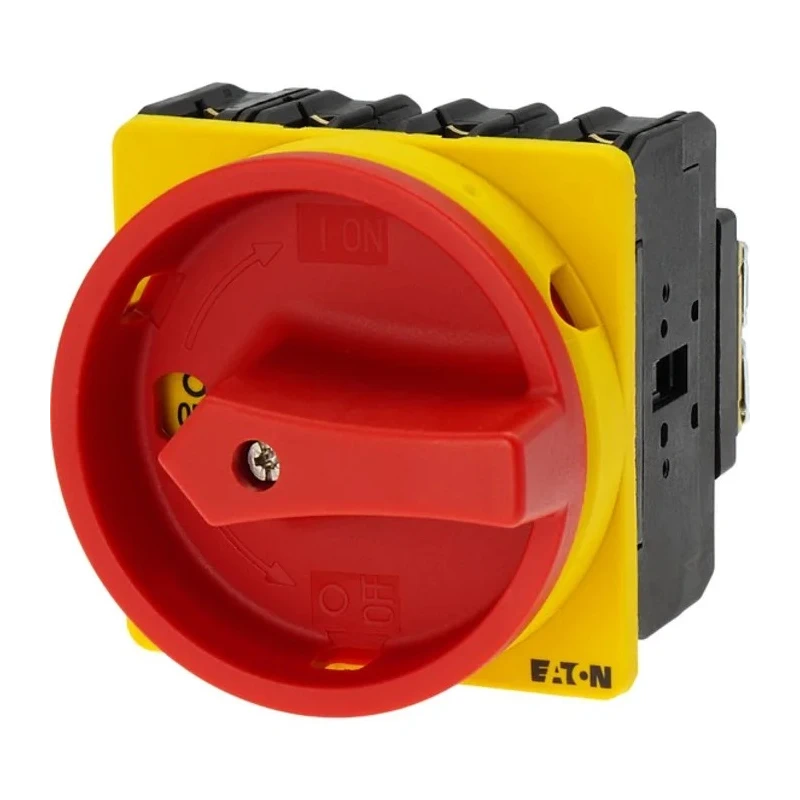

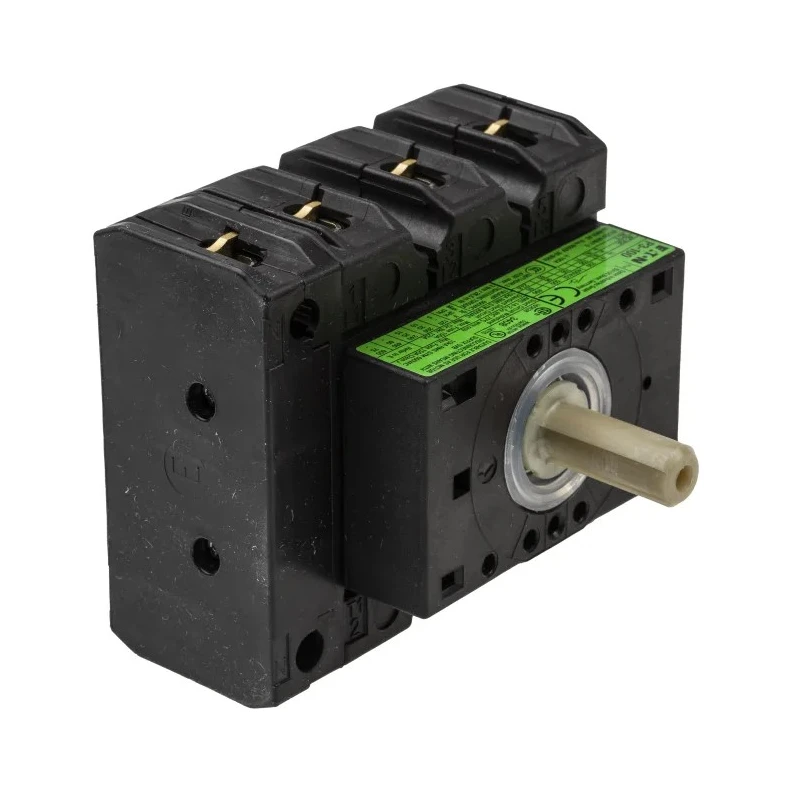

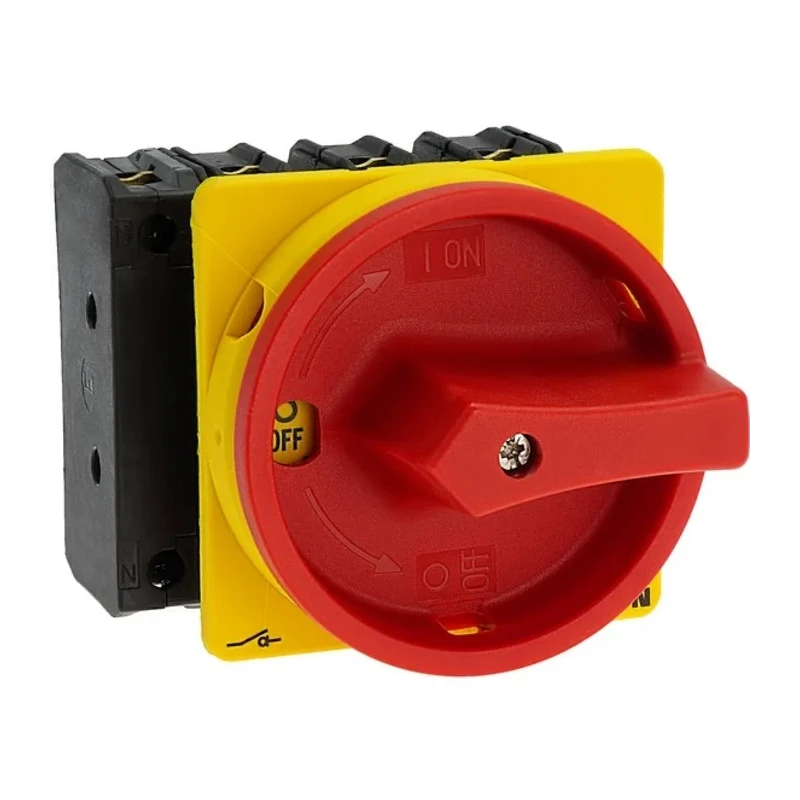

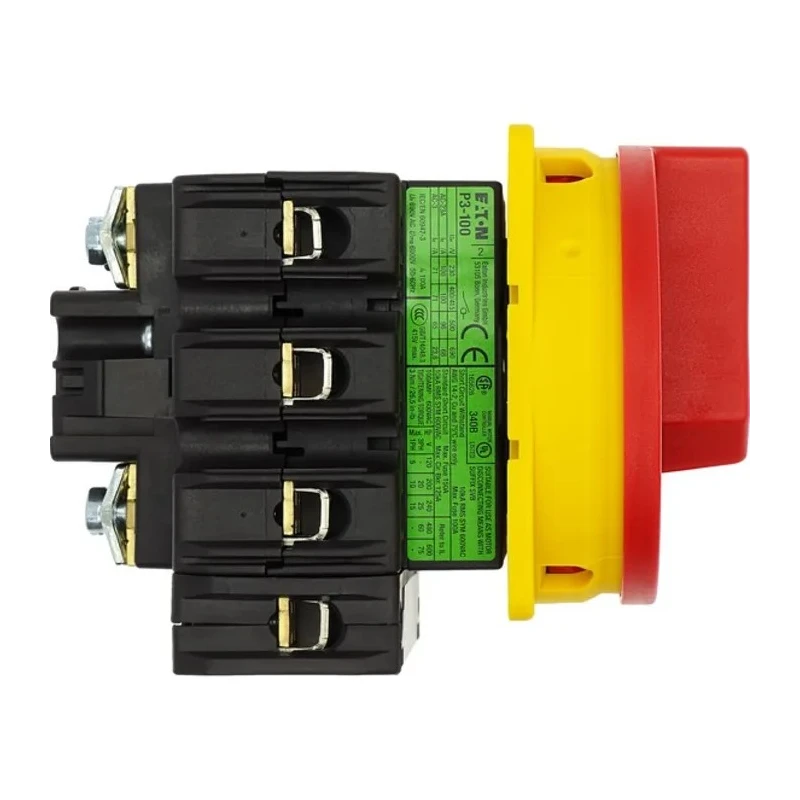

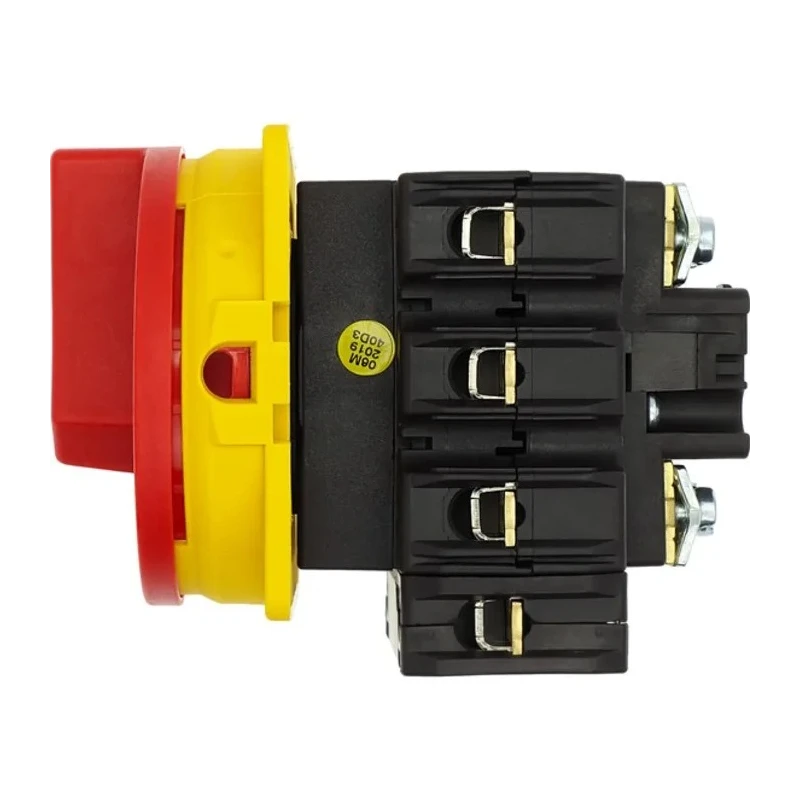

Eaton 3-Pole Panel Mount Isolator Switch IP65 Rated 760A Current 55kW Power P3-100 Series MPN

Free Delivery in India | Lowest Global Shipping Charges

Eaton 3-Pole Panel Mount Isolator Switch IP65 Rated 760A Current 55kW Power P3-100 Series MPN

Name: Eaton 3-Pole Panel Mount Isolator Switch IP65 Rated 760A Current 55kW Power P3-100 Series MPN
Brand: Eaton
SKU: 396928
Price: 23974.82 INR
Availability: InStock



Category Isolator Switch Brand Eaton Condition New

Specifications

Country of Origin	United Kingdom
Brand	Eaton
Length	87mm
Model	IP65
Depth	114mm
IP Rating	IP65
Width	101mm
Mount Type	Panel Mount
Series	P3-100
Maximum Operating Temperature	50°C
Minimum Operating Temperature	-25°C
Switching Current	760A
Terminal type	Screw
Handle Colour	Red
Number of Poles	3
Standards/Approvals	UL, CSA, IEC
Switching DC Voltage	60V dc
Switching AC Voltage	230V ac
Switching Power	55kW

Key Features

Non-fused design allows quick reset without fuse replacement.
IP65 rating ensures dust tightness and protection against low-pressure water jets.
Suitable for harsh industrial environments with operating temperatures from -25°C to 50°C.

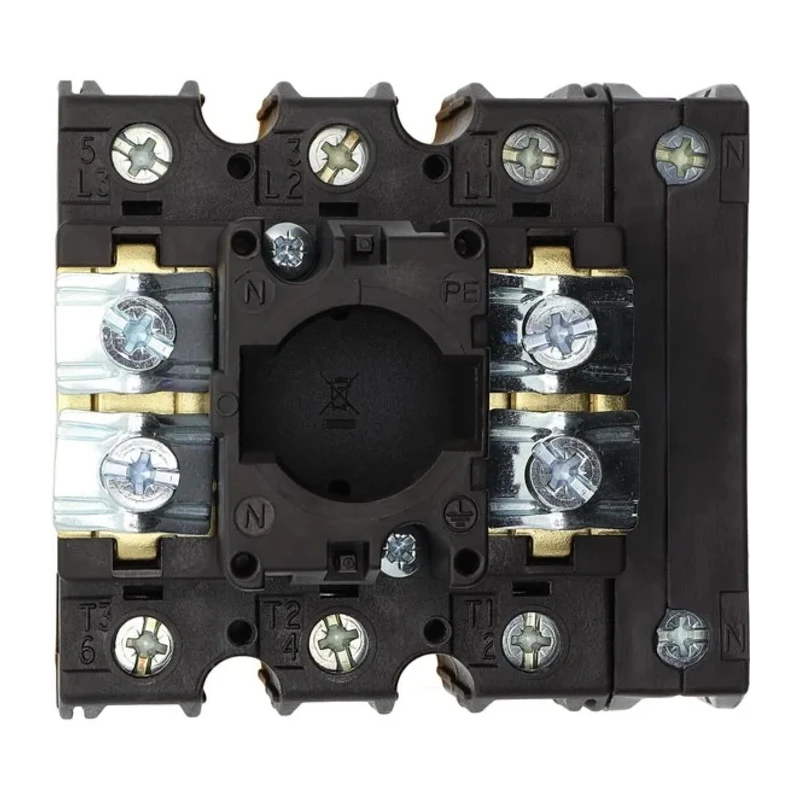

Standard screw terminals for easy installation and secure connections.
Complies with UL, CSA, and IEC standards for safety and performance.

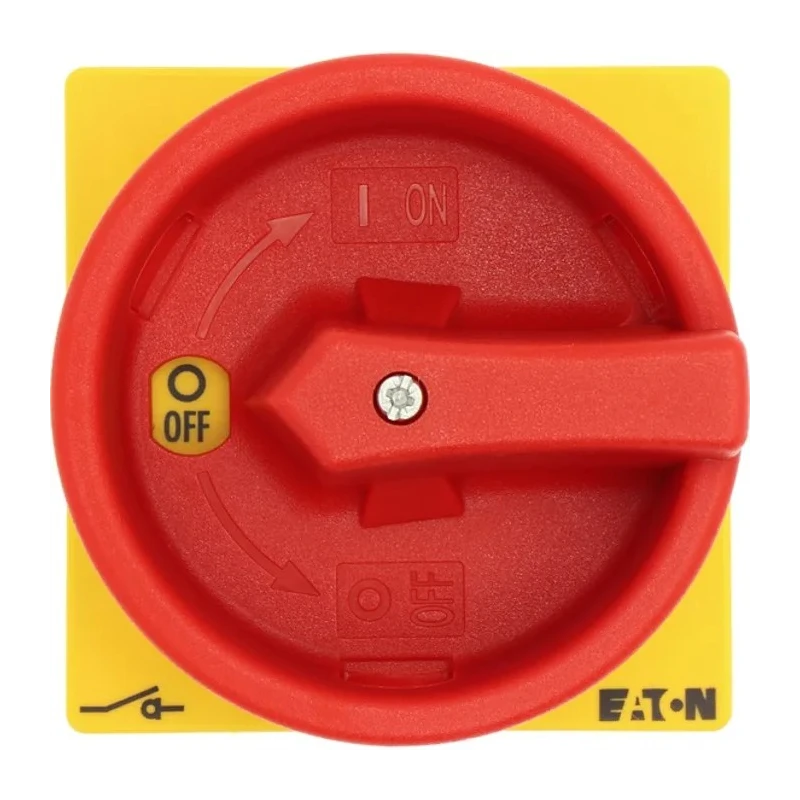

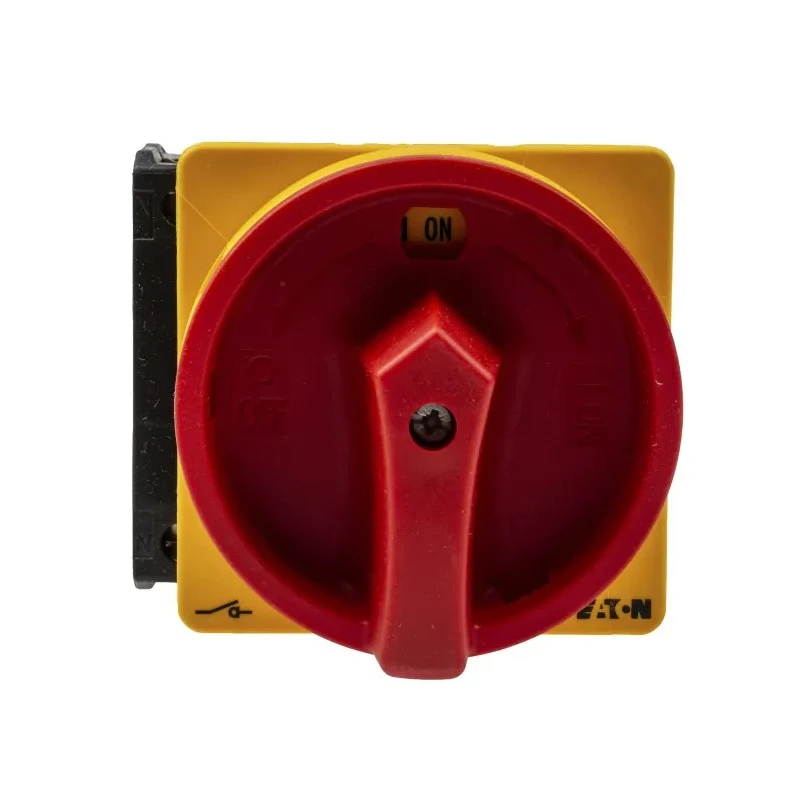

Equipped with a red rotary handle for quick circuit isolation.
Designed for isolating circuit breakers, transformers, and transmission lines.
Compatible with 3-phase electrical systems with 690V AC voltage rating.

Product Description

The Eaton P3-100 3-Pole Panel Mount Isolator Switch with model number 019890 P3-100/EA/SVB/N is engineered for industrial electrical control applications where safety and reliability are paramount.

This isolator switch is designed to safely interrupt electrical circuits up to a switching current of 760A and power capacity of 55kW. Its IP65 rating provides excellent dust protection and resistance to water jets, making it suitable for demanding industrial environments such as manufacturing, HVAC systems, electrical panels, and power distribution units.

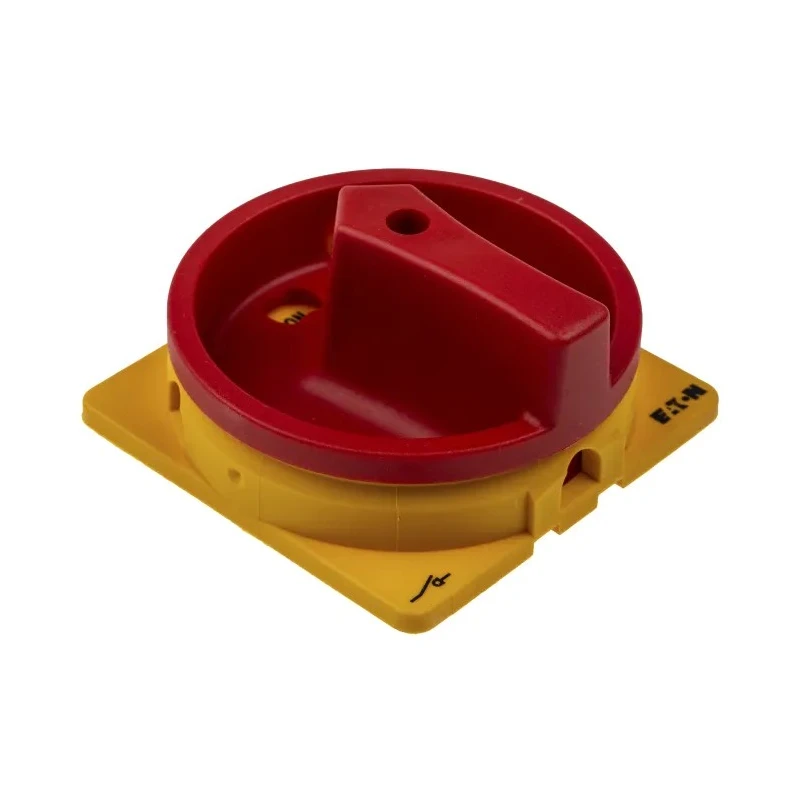

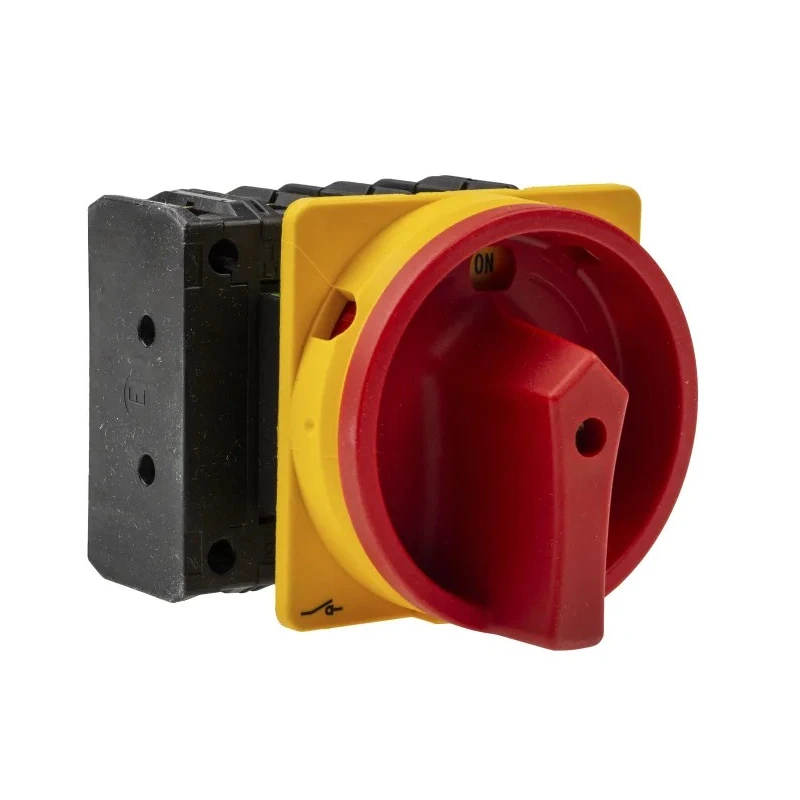

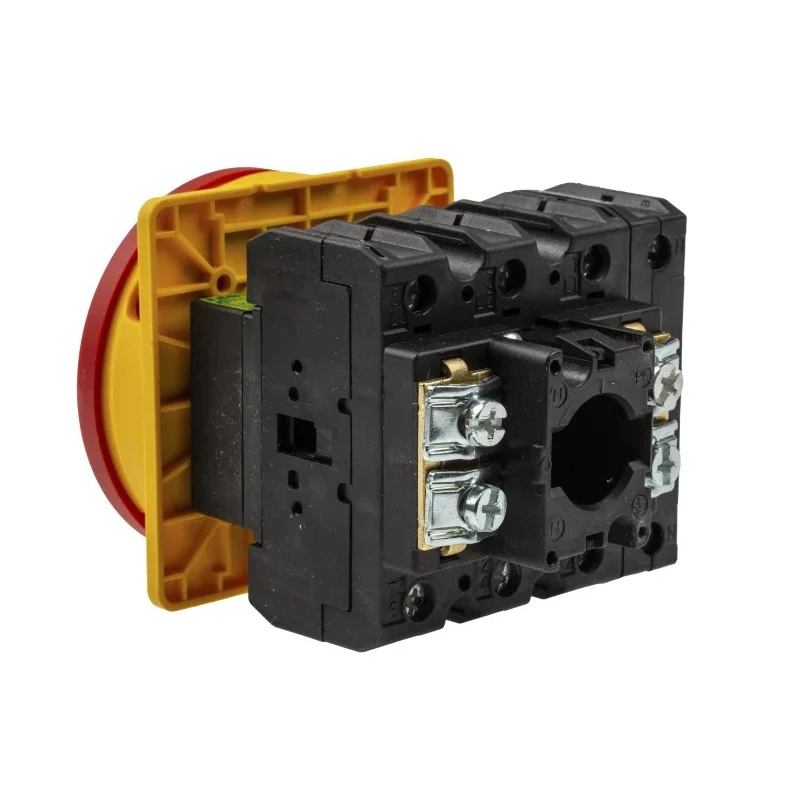

The switch features a red rotary handle for clear visual indication and fast manual operation. It uses screw terminal types for secure and reliable wire connections. With a broad operating temperature range from -25°C to 50°C, it performs dependably in varying ambient conditions.

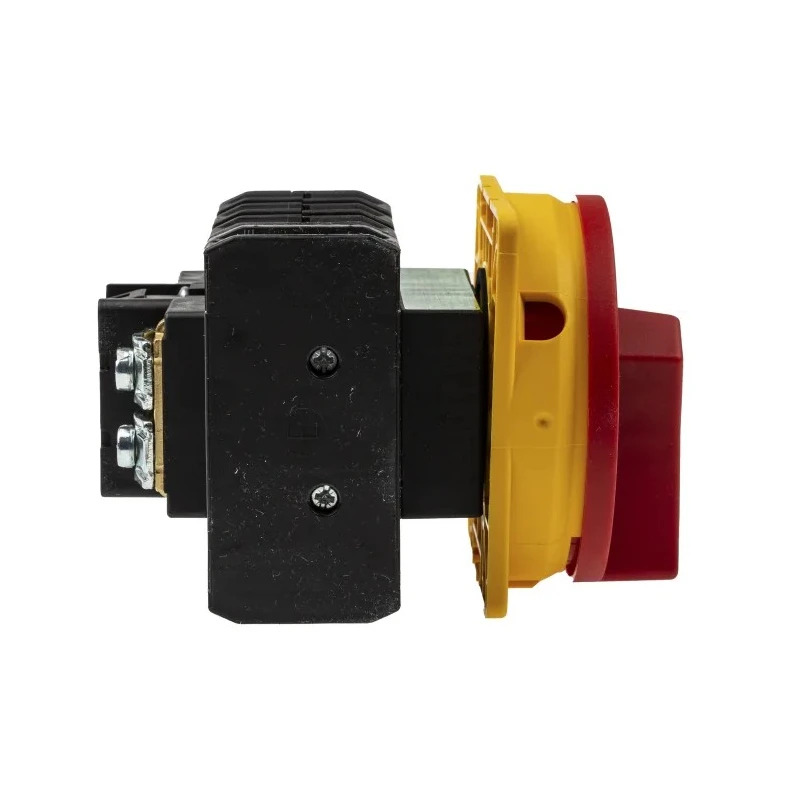

This unit complies with major international standards including UL, CSA, and IEC, ensuring safe integration into electrical systems. Its compact dimensions of 87mm by 101mm by 114mm allow for efficient panel mounting without occupying excessive space.

Typical use cases include isolating circuit breakers, transformers, and transmission lines in electrical installations. While it is non-fused for faster resetting after trips, it supports padlock compatibility to prevent accidental operation during maintenance, enhancing workplace safety.

Non-fused design allowing easy reset without fuse replacement. IP65 dust and water jet protection for robust industrial use. Red rotary handle for quick and intuitive isolation. Suitable for 3-pole 3-phase systems switching up to 760A.

Screw terminal connections for ease of installation. Compatible with switching voltages of 690V AC, 230V AC, and 60V DC. Operating temperature range from -25°C to 50°C ensures versatile deployment. Complies with UL, CSA, and IEC safety and quality standards.

Compact panel mount form factor measuring 87mm x 101mm x 114mm. Manufactured in the United Kingdom assuring quality and reliability.

This Eaton isolator switch provides a reliable solution to deactivate electrical circuits safely and efficiently, minimizing machine downtime during maintenance. It is ideal for industrial, commercial, manufacturing, and electrical infrastructure applications.
