TE Connectivity PCB Signal Relay 12V DC Coil 2A DPDT IM26TS 3-1462039-2

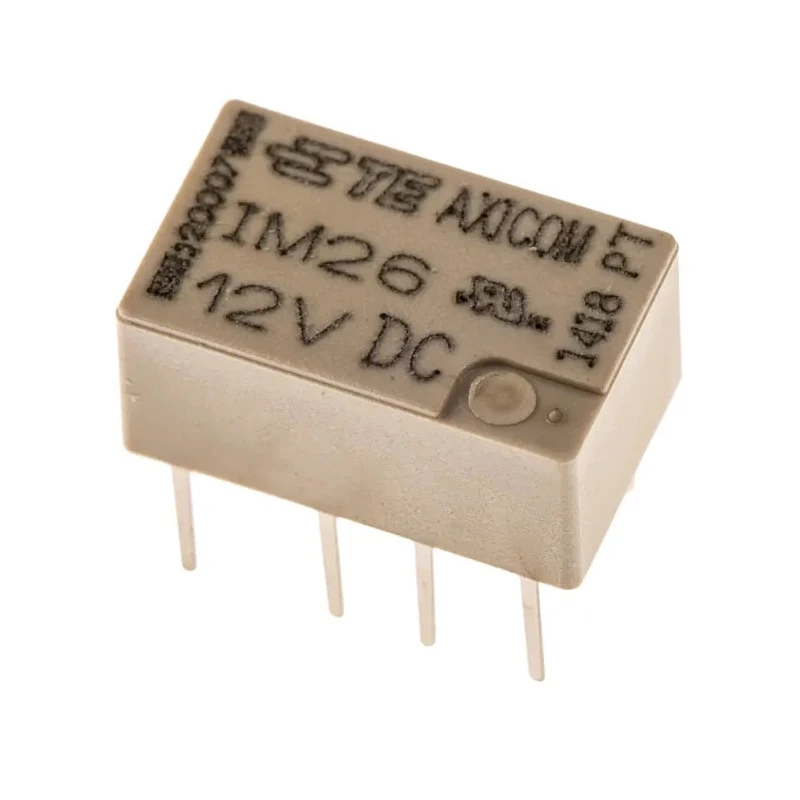

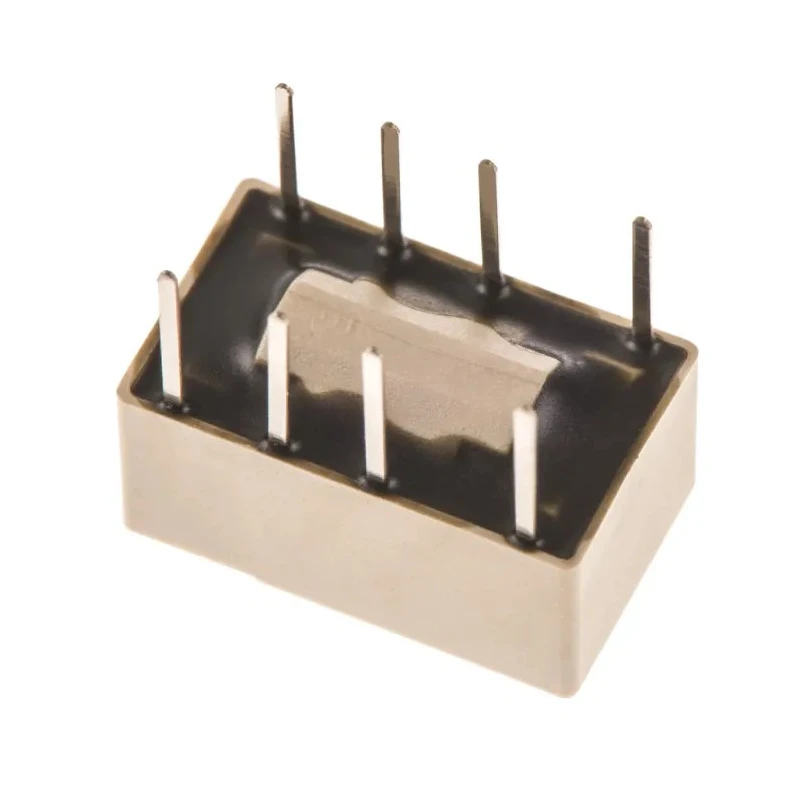

TE Connectivity IM26TS 3-1462039-2 PCB Signal Relay is a high-quality DPDT relay designed for PCB mounting applications. Operating with a 12V DC coil and capable of switching currents up to 2A, this relay offers reliable performance with compact dimensions of 10 mm in length, 6 mm in width, and 5.65 mm in height.

This IM series relay features a low coil power consumption of 50 mW, contributing to efficient circuit designs. Its gold plated bifurcated contacts improve conductivity while minimizing signal loss. The hermetically sealed relay casing provides IP67 level protection, ensuring resistance to dust and moisture ingress.

Designed for rugged industrial use, it withstands mechanical shocks up to 300G in operation and survives shocks up to 500G. The relay supports switching AC voltages up to 250V and DC up to 220V, withstanding operating temperatures ranging from -40°C to 85°C for versatile use in industrial, telecommunications, medical, and automotive equipment.

Its coil resistance of 2800 ohms ensures stable coil characteristics, while the solder terminal type guarantees easy PCB assembly. The product complies with RoHS standards, aligning with environmental and safety regulations.

This signal relay is ideal for use in telecommunication equipment, optical network terminals, office devices, test and measurement instruments, medical devices, and automotive applications, offering dependable switching in compact form factors.

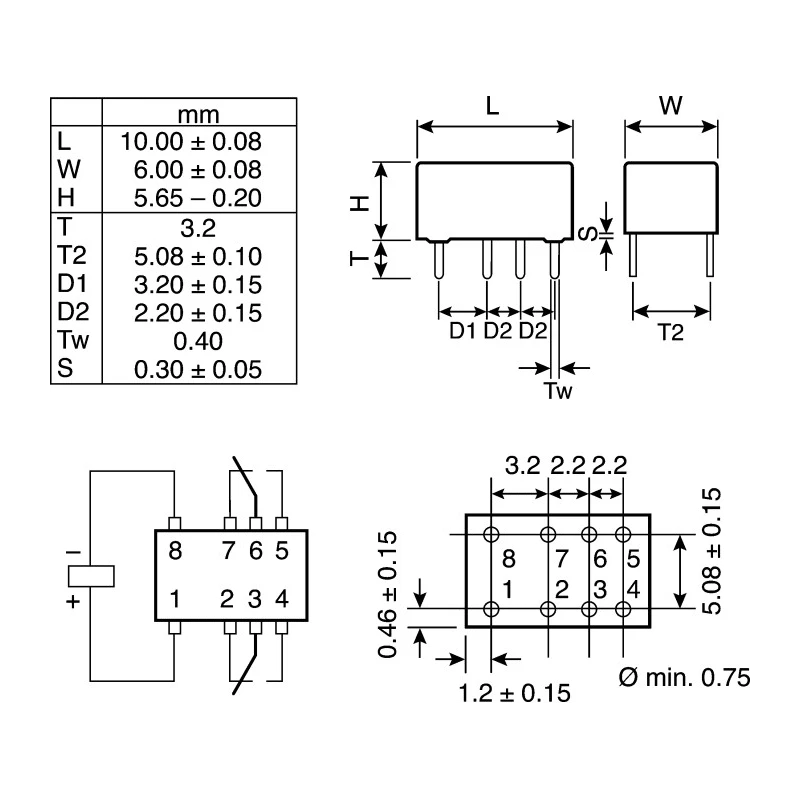

The relay features a low profile design with dimensions 10 x 6 x 5.65 mm. Coil power consumption is only 50 mW, improving energy efficiency. Gold plated bifurcated contacts enhance conductivity and durability. Offers high shock resistance up to 300G functional and 500G survival.

Suitable for switching AC voltages up to 250V and DC voltages up to 220V. Operating temperature range from -40°C to 85°C ensures reliable performance in varied environments. Hermetically sealed construction provides IP67 protection against contaminants.

Coil resistance precisely at 2800 ohms for stable operation. Explore more Signal Relay options and TE Connectivity products in the EnvMart catalog for your electronic and electrical applications.
