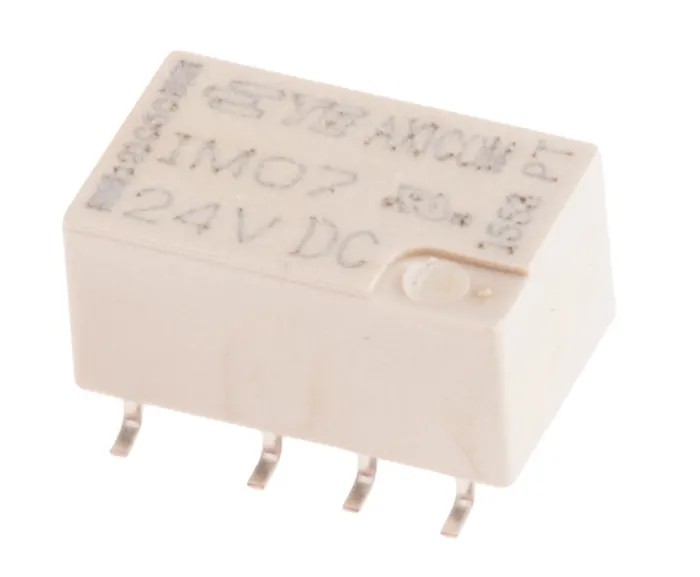

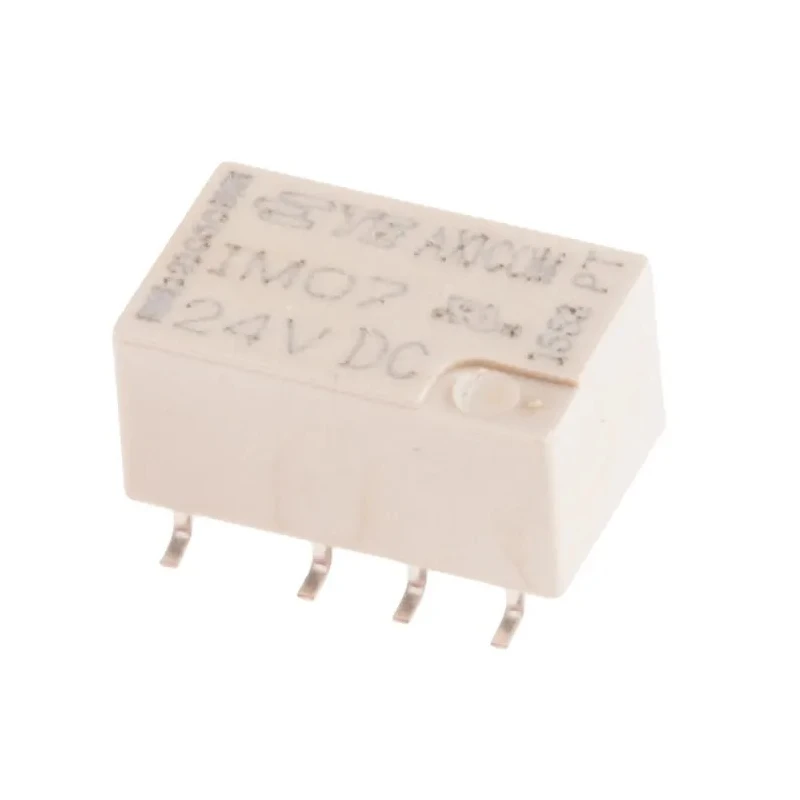

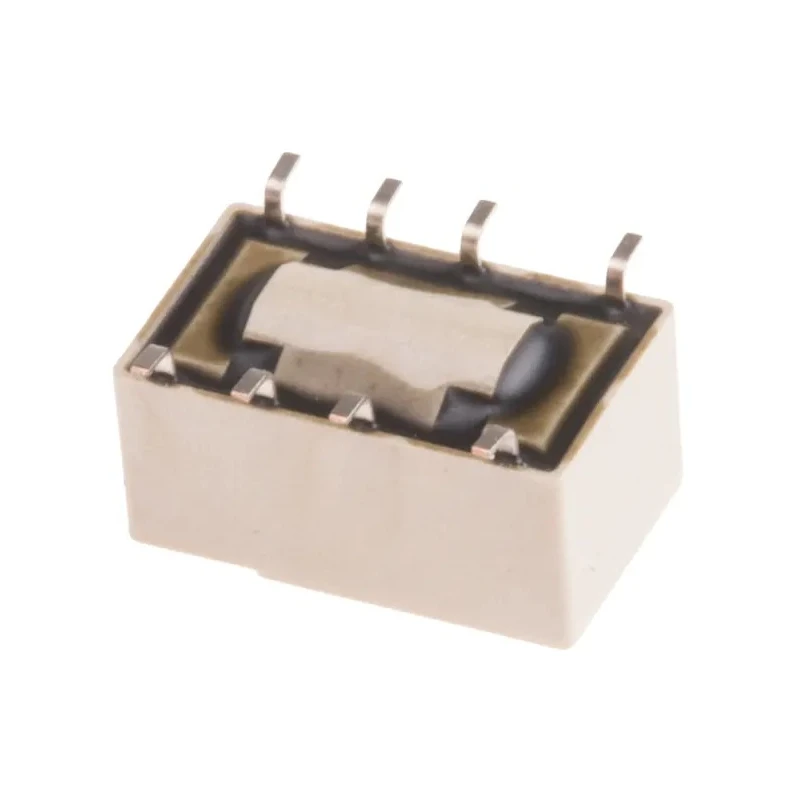

TE Connectivity Surface Signal Relay 24V DC Coil, 2A Switching Current, DPDT, Surface Mount IM07GR 4-1462037-7 IM07GR
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 5.65mm |
| Length | 10mm |
| Model | 4-1462037-7 IM07GR |
| Width | 6mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 2880Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
Key Features
- This relay operates with a coil voltage of 24V DC and supports a switching current of 2A.
- It is designed as a surface mount device for easy PCB integration.

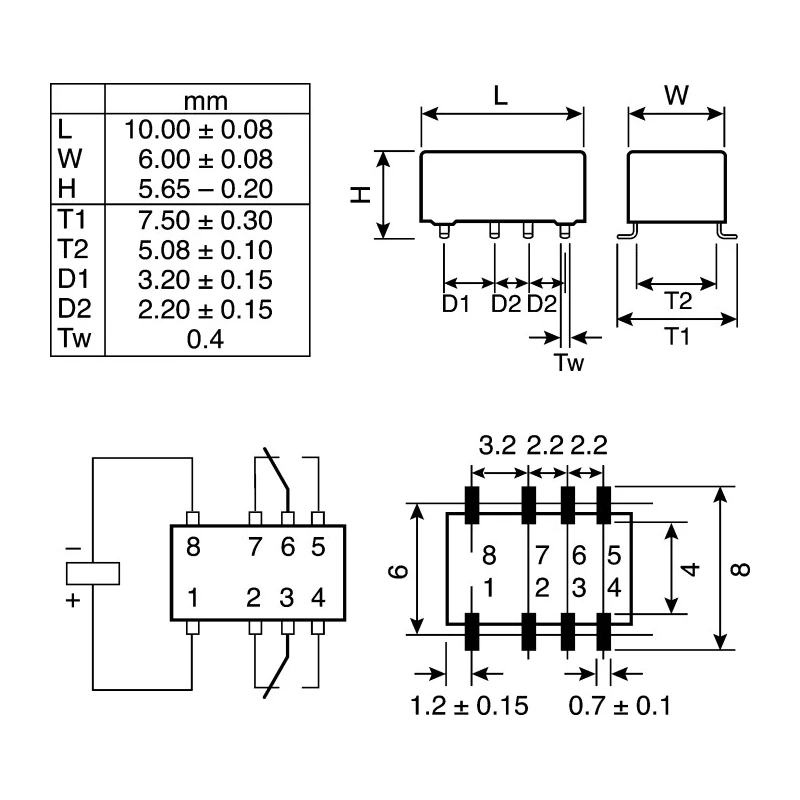

- The compact dimensions of 10mm length, 6mm width, and 5.65mm height ensure a small board footprint.
- The coil resistance is 2880Ω, and the coil power consumption is 140mW, enhancing energy efficiency.
- Gold-plated bifurcated contacts provide high electrical reliability and low contact resistance.
- The relay is hermetically sealed, rated IP67, and withstands mechanical shocks up to 300G functional and 500G survival.
- Operational temperature range spans from -40°C to +85°C, making it suitable for varied environments.
- It complies with RoHS standards, ensuring environmental safety and sustainability.
Product Description
TE Connectivity 4-1462037-7 IM07GR Surface Signal Relay is a reliable and compact relay designed for signal switching applications. Featuring a 24V DC coil voltage and a 2A switching current capacity, this DPDT (Double Pole Double Throw) relay is engineered for surface mounting on PCBs, offering a slim footprint with dimensions of 10mm in length, 6mm in width, and 5.65mm in height.
The relay utilizes gold-plated bifurcated contacts to ensure low contact resistance and high reliability under electrical load. Its hermetically sealed construction rated at IP67 provides robust environmental protection, including resistance to dust and moisture. Furthermore, it offers high mechanical shock resistance, withstanding shocks up to 300G during operation and 500G survival levels, making it suitable for demanding industrial and telecommunications environments.
With a coil resistance of 2880Ω and a power consumption of 140mW, the relay balances energy efficiency with performance. It supports switching voltages of up to 250V AC and 220V DC, accommodating various electrical systems. The operational temperature range from -40°C to 85°C ensures versatility in different climates and installation conditions.
This relay conforms to RoHS standards, demonstrating compliance with environmental regulations. Its solder terminal type facilitates SMT assembly processes in modern electronics manufacturing. Applications typically include telecommunications equipment, optical network terminals, modems, office automation devices, and other business or consumer electronic products requiring reliable Signal Relay functions.
This relay is part of the IM series, known for small size and dependable telecom performance. Its slimline and low-profile design contribute to space-saving PCB layouts in compact electronic assemblies. High surge capability adheres to Telcordia TR-NWT-001089 and EC 60950 standards, assuring durability against transient electrical stresses.
Manufactured in Portugal, the product maintains a high standard of quality and craftsmanship. Explore EnvMart categories for more TE Connectivity relays and related electronic components suited for industrial, telecommunications, and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC.
It supports a maximum switching current of 2A.
This relay has dimensions of 10mm in length, 6mm in width, and 5.65mm in height.
The operational temperature range spans from -40°C to +85°C.
It is designed for surface mounting on PCBs.
The coil resistance is 2880Ω.
It features gold-plated bifurcated contacts for high electrical reliability and low contact resistance.
It supports switching voltages of up to 250V AC and 220V DC.
The coil power consumption is 140mW.
The relay is hermetically sealed and rated IP67, providing resistance to dust and moisture.
It complies with RoHS standards, ensuring environmental safety and sustainability.
This relay is manufactured in Portugal.
