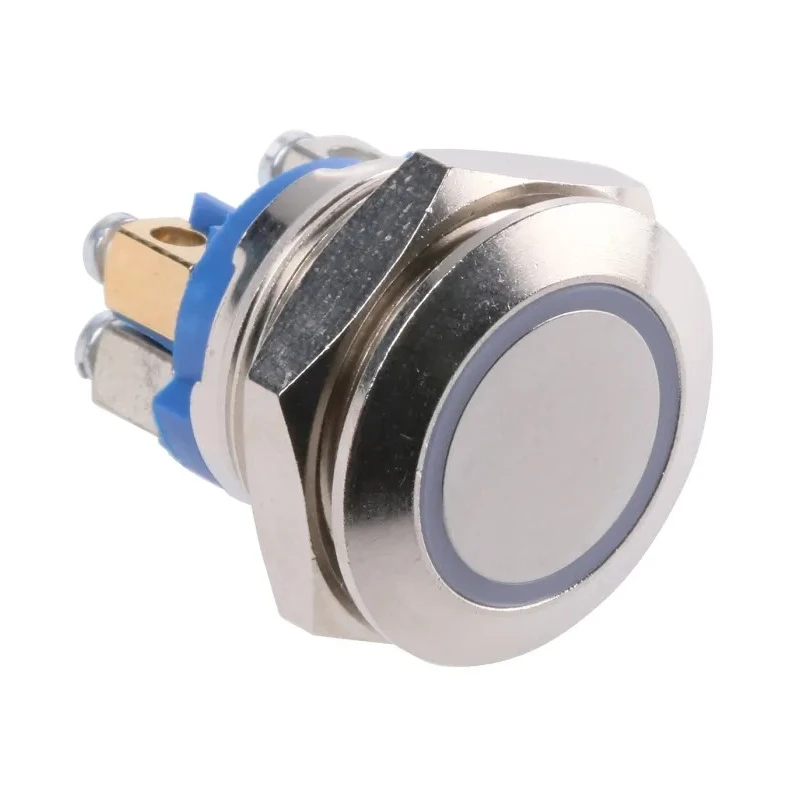

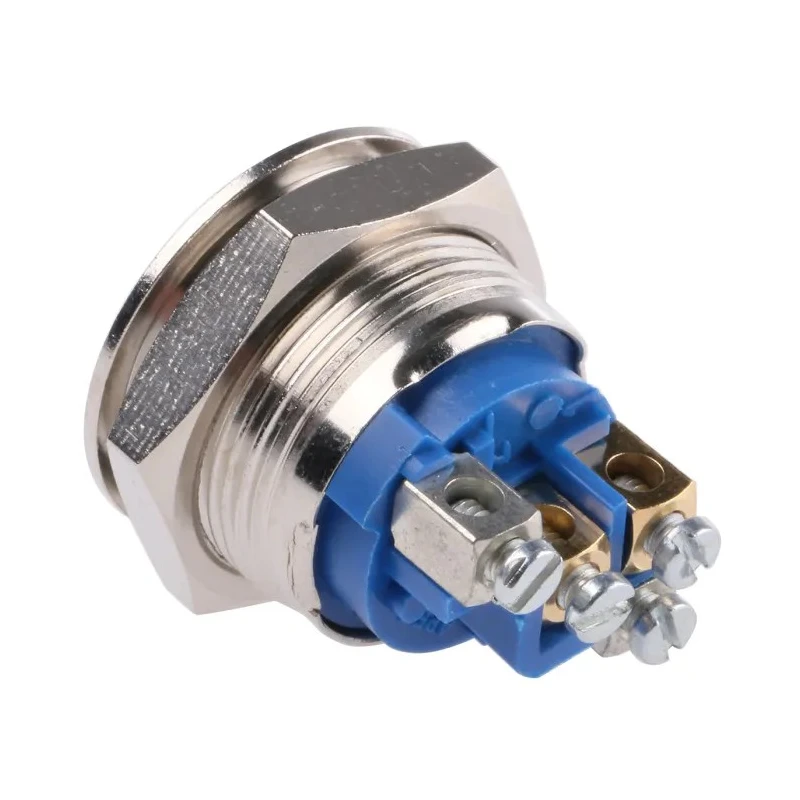

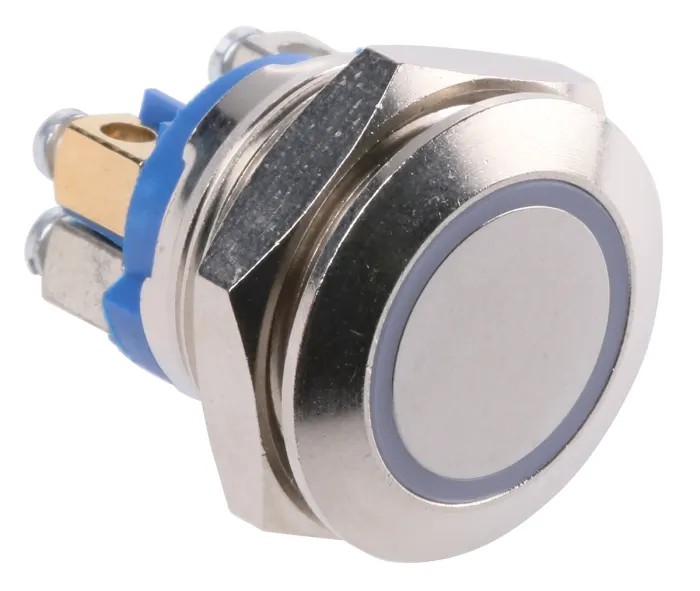

APEM AV Series Illuminated Push Button Switch, Momentary Operation, 19.2 mm Cutout, SPST Contact, Blue LED AV9SLD9081002
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Model | AV9SLD9081002 |
| IP Rating | IP65 |
| Panel Thickness | 1 to 6mm maxi |
| Service Life | 1 million operations |
| Series | AV |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 19.2 mm |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| LED Colour | Blue |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Actuator Style | Flat |
| Switch Contact Current | 50mA |
Key Features
- The switch provides a tactile momentary N/O operation with flat actuator style.
- Features a robust stainless steel or nickel plated brass body designed for durability.
- Includes a blue LED ring powered at 3 V DC, 10 mA for clear indication.
- Panel mount thickness compatibility ranges from 1 to 6 mm maximum.
- Suitable for operating temperatures from -30°C to 70°C.
- IP65 rating ensures protection against dust and water ingress in industrial environments.
- Switch contact current rating is rated at 50 mA for reliable signal switching.
- Complies with RoHS standards ensuring hazardous substance compliance.
Product Description
APEM AV9SLD9081002 is an advanced illuminated push button switch from the AV Series, designed for industrial and commercial electrical control panels requiring reliable momentary control.
This SPST single-pole switch features a tactile momentary operation with a flat silver actuator, providing a distinct and responsive user interface. The switch is designed for a 19.2 mm panel cutout and is compatible with panel thicknesses ranging from 1 to 6 mm.
The device is equipped with a blue LED illumination ring, operating at 3 VDC and 10 mA, which provides clear visual feedback for operational status in control applications. Encased in rugged stainless steel or nickel plated brass housing, the switch is rated IP65, providing excellent sealing against dust and water ingress, suitable for harsh industrial environments.
It supports a switch contact current of 50 mA and has an operating temperature range from -30°C to 70°C, making it fit for a wide range of environmental conditions. The switch meets RoHS compliance standards and offers a service life of 1 million operations, ensuring durability and long-term performance.
The switch delivers tactile feedback for precise operator control. Blue LED illumination enhances visibility in low-light conditions. Robust construction with stainless steel or nickel plated brass materials provides excellent mechanical protection.
IP65 rating ensures reliable performance in wet or dusty areas. Complies with RoHS directives to reduce environmental impact. Supports panel thickness between 1 and 6 mm for flexible installation. Designed for 1 million cycle repetitive use without degradation.
Operation temperature limits support use in extreme environments. Suitable for automation, control panels, and machinery applications.
This APEM illuminated Push Button Switch is ideal for electronics, electrical control, HVAC, industrial automation, and manufacturing environments requiring a high-quality, reliable momentary switch solution.
Explore more from the AV Series in the Electronics & Electricals section at EnvMart for professional industrial components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch requires a panel cutout size of 19.2 mm for installation.
It operates within a temperature range of -30°C to 70°C, making it suitable for various environmental conditions.
The switch contact current rating is 50 mA, ensuring reliable signal switching.
This model features a momentary operation, allowing for temporary activation of the circuit.
The switch is constructed with a robust stainless steel or nickel plated brass body for durability.
It has an IP65 rating, providing protection against dust and water ingress in industrial environments.
The switch has a service life of 1 million operations, ensuring long-term performance.
The switch features a blue LED ring that operates at 3 V DC and 10 mA for illumination.
It is compatible with panel thicknesses ranging from 1 mm to 6 mm maximum.
This switch complies with RoHS standards, ensuring it meets hazardous substance regulations.
The switch uses screw terminals for electrical connections.
It is suitable for automation, control panels, and machinery applications in various industrial environments.
