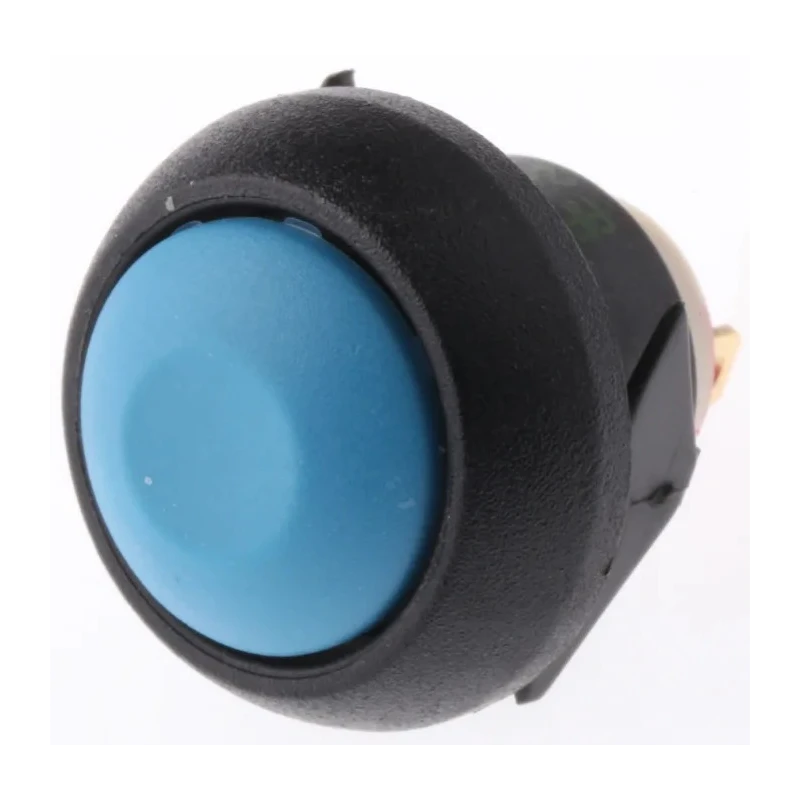

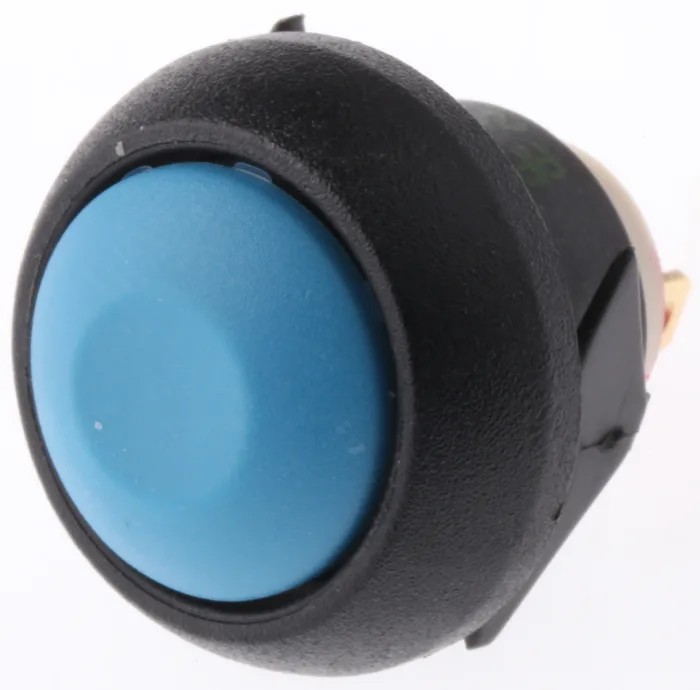

APEM IB Series Miniature Momentary Push Button Switch, Panel Mount, Blue Dome Actuator, 12.2 mm Cutout, SPST IBR3SAD100

Name: APEM IB Series Miniature Momentary Push Button Switch, Panel Mount, Blue Dome Actuator, 12.2 mm Cutout, SPST IBR3SAD100
Brand: APEM
SKU: 396080
Price: 7.47 USD
Availability: InStock



Category Push Button Switch Brand APEM Condition New

Specifications

Country of Origin	France
Brand	APEM
Model	IBR3SAD100
IP Rating	IP67
Mount Type	Panel
Series	IB
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	Momentary
Minimum Operating Temperature	-40°C

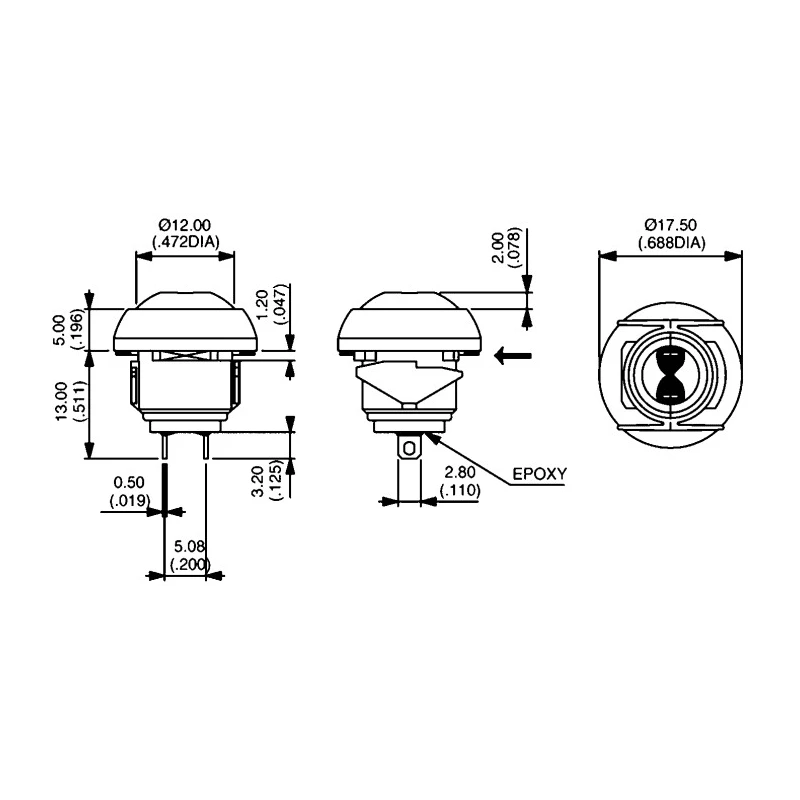

Panel Cutout Size	12.2 mm
Terminal type	Solder
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Blue
Contact DC Voltage	50V dc
Actuator Style	Dome
Switch Contact Current	400mA

Key Features

The switch features a momentary SPST contact configuration rated for 50 V dc and 400 mA current.
The actuator is blue colored with dome style and is not illuminated.
It offers a shallow behind-panel depth with compact and lightweight plastic construction.

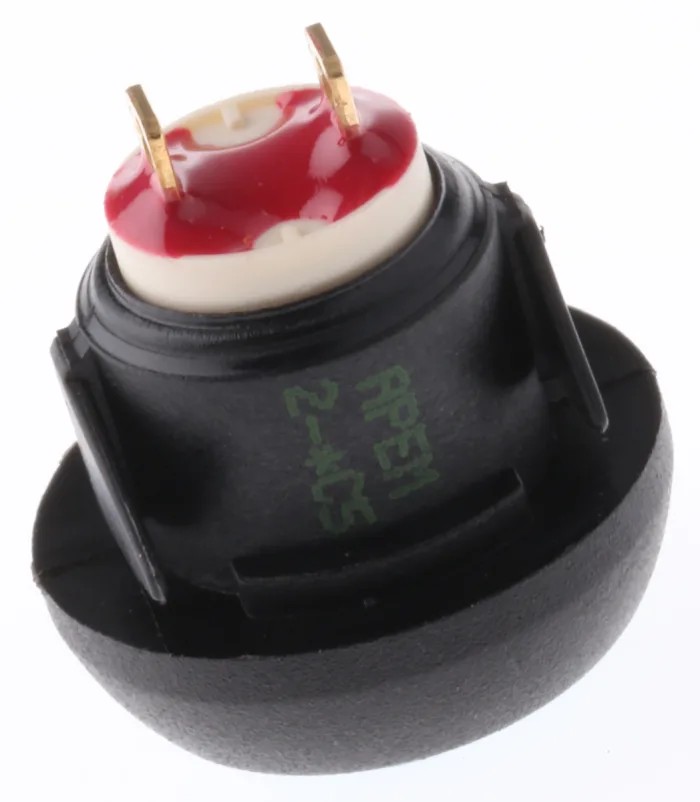

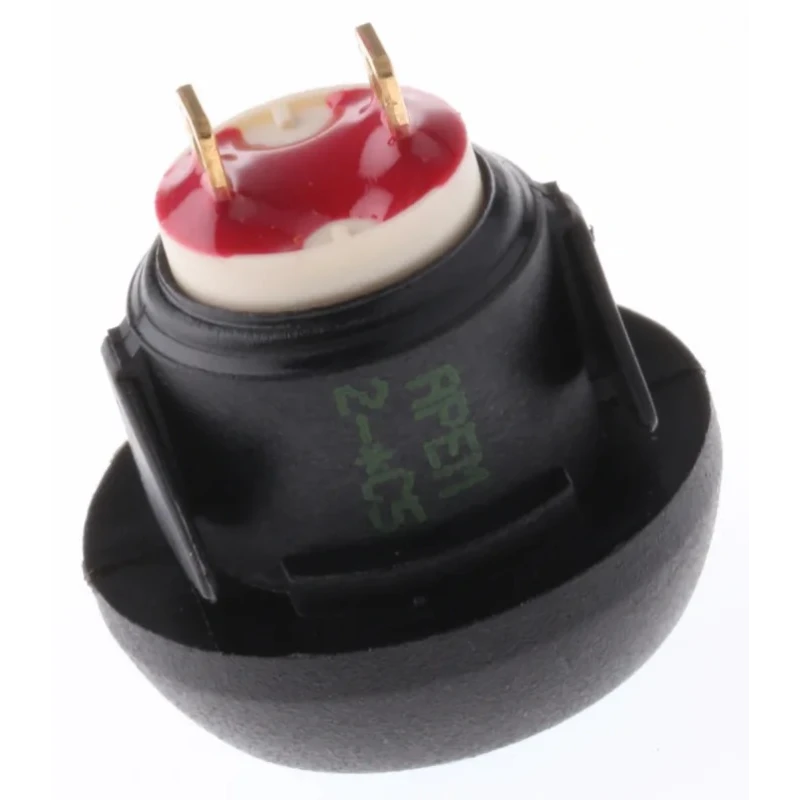

The epoxy terminal seal ensures durability and resistance to environmental conditions.
Operating temperature range spans from -40°C to 85°C for versatile applications.
The switch is RoHS compliant and made in France ensuring quality standards.
IP67 rating provides excellent protection against dust and water ingress.

Product Description

APEM IBR3SAD100 miniature momentary push button switch is engineered for high-performance industrial and electrical applications requiring reliable on/off control through a panel mount installation with 12.2 mm panel cutout. Featuring a blue dome actuator, this switch ensures clear tactile feedback and robust durability. It is designed to operate at 50 V dc with a maximum contact current of 400 mA, suitable for control circuits and low-power switching tasks.

The plastic button and case construction contribute to a lightweight, compact device with a shallow depth behind the panel, optimizing space in panel assemblies. The epoxy terminal seal and IP67 ingress protection rating allow the switch to withstand harsh environments, making it ideal for automation, electrical equipment, and control panel applications in industrial, manufacturing, and commercial settings.

The actuator color is blue with a dome style, momentary switch operation with SPST contact configuration and solder terminal type. It operates reliably in temperatures ranging from -40°C up to 85°C. The switch complies with RoHS standards, ensuring no harmful substances are present, supporting environmentally responsible manufacturing and usage.

The momentary tactile pushbutton delivers precise responsiveness for control operations. The panel mount design simplifies integration into existing enclosures or machinery. IP67 sealing safeguards against dust and water ingress, suitable for demanding environments.

Compact and light, it suits applications where space constraints are critical. RoHS certification guarantees compliance with environmental regulations. Manufactured in France, upholding high quality and reliability standards.

This miniature Push Button Switch is widely used in industrial equipment, automation systems, electrical control panels, machinery operation, and various commercial electrical assemblies. Its robust design and compliance make it a dependable choice for engineers and maintenance professionals seeking a compact and durable switching solution.
