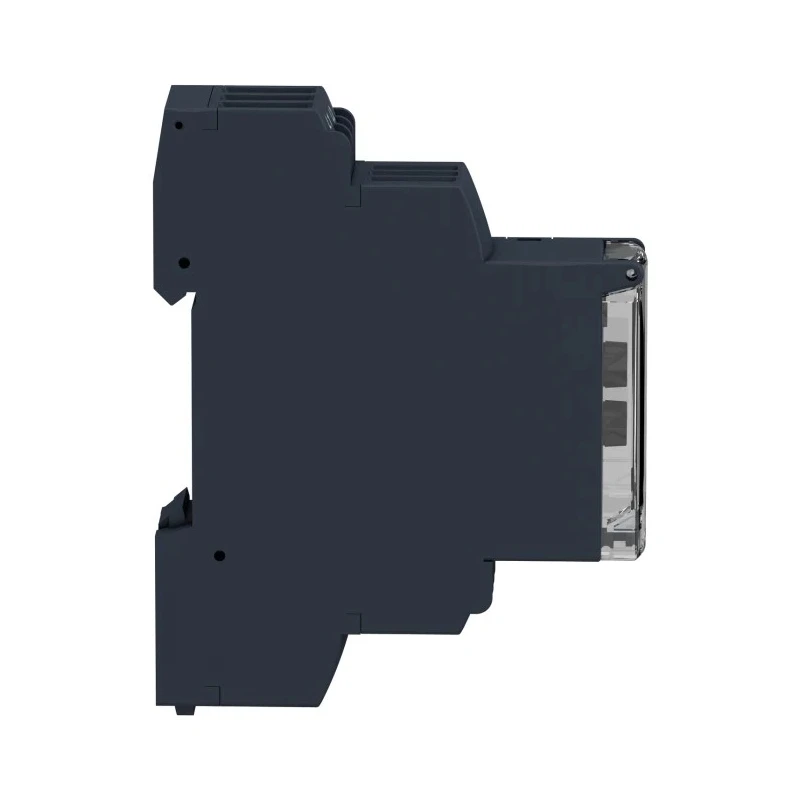

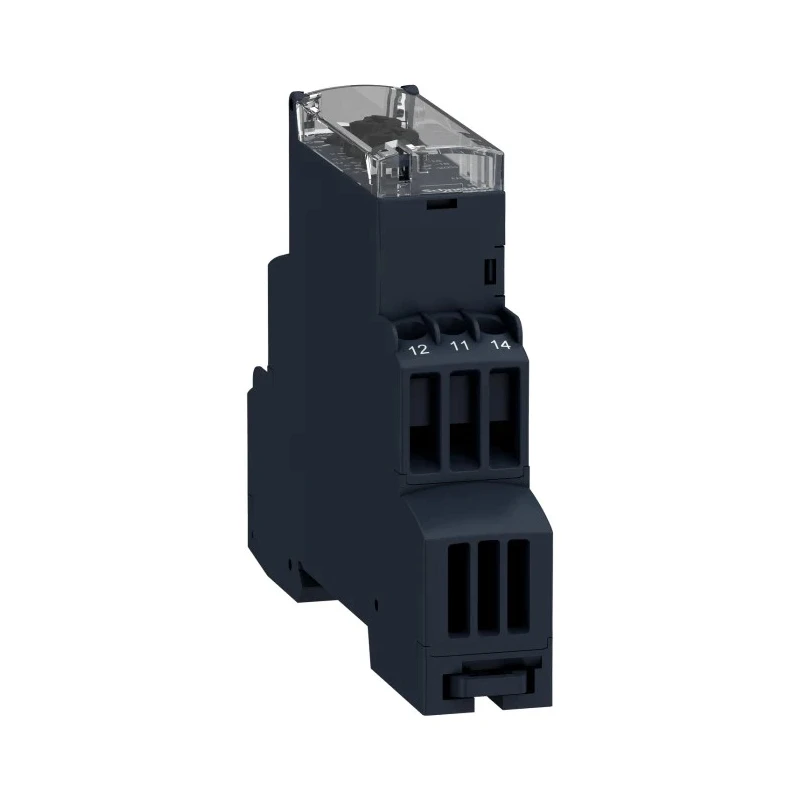

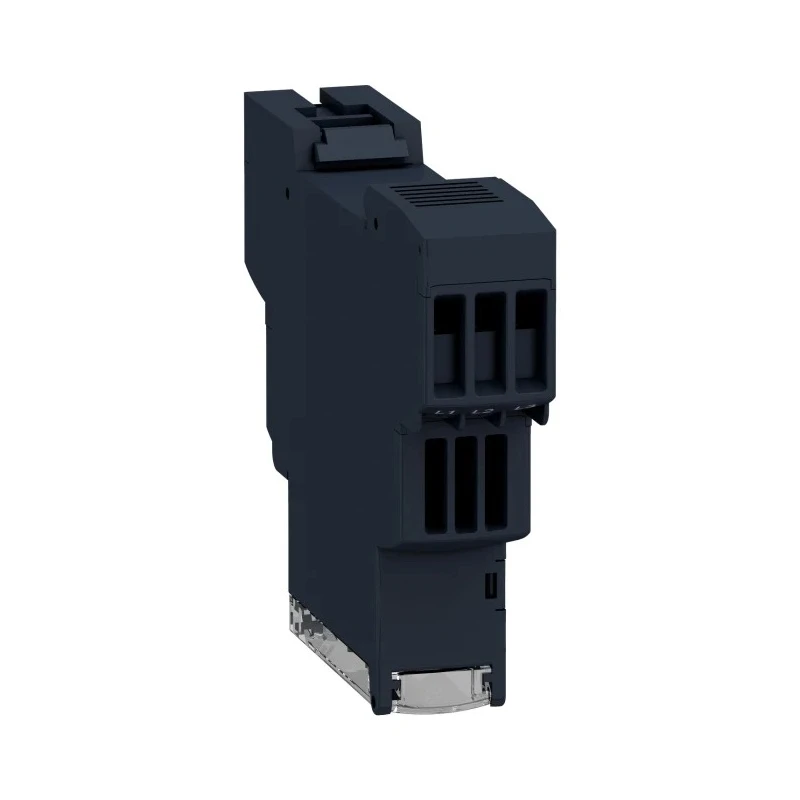

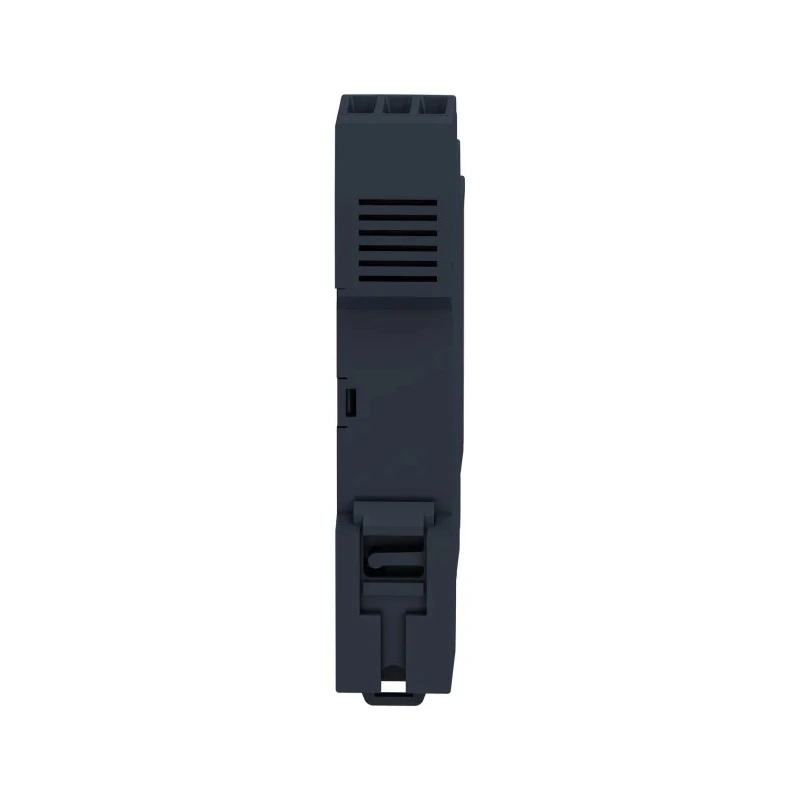

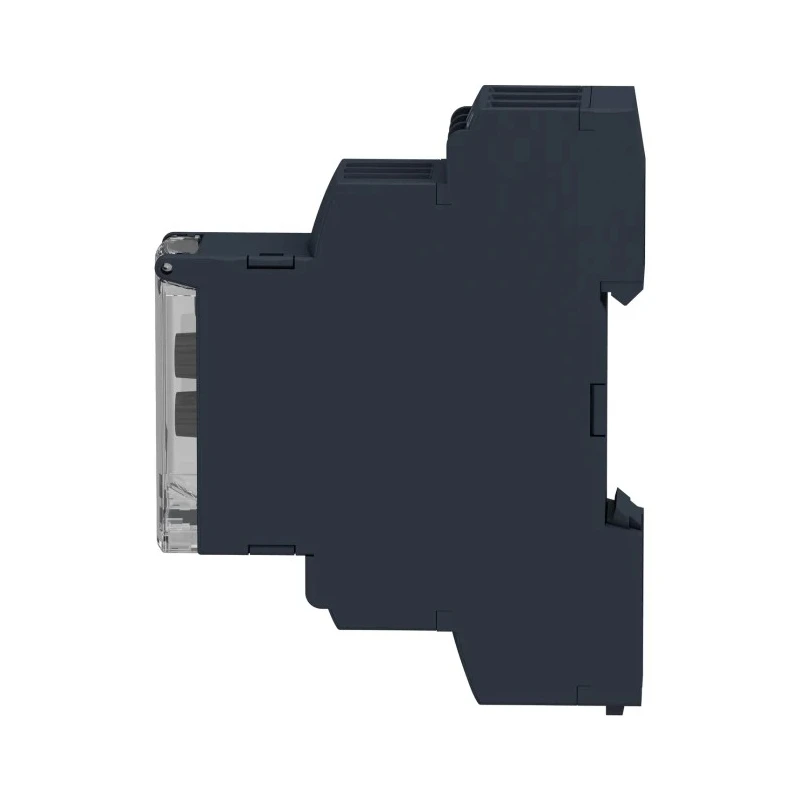

Schneider Electric Monitoring Relay 3 Phase SPDT DIN Rail Mount 480V AC RM17TA00
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Height | 90mm |
| Length | 72mm |
| Model | RM17TA00 |
| IP Rating | IP30, IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | Harmony Control |
| Maximum Operating Temperature | 50°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Standards/Approvals | CE, CSA, UL |
| Switching Voltage | 250V ac/dc |
| Contact Current | 5A |
| Supply AC Voltage | 480V ac |
Key Features
- Adjustable time delay from 0.1 to 10 seconds for flexible response timing.
- Monitors phase asymmetry, phase failure, and phase sequence to ensure system integrity.
- High voltage sensing range from 183 to 528 V AC for versatile use.
- Compact DIN rail design allows easy installation in control panels.
- Screw terminal type offers secure electrical connections.
- Designed for operation in the temperature range of -20°C to 50°C.
- SPDT contact configuration supports switching voltage up to 250V AC/DC.
- Contact current rated at 5 A for both AC and DC applications.
Product Description
Schneider Electric RM17TA00 Monitoring Relay is a high-quality device designed to monitor and protect 3-phase electrical systems. Featuring an SPDT (Single Pole Double Throw) contact configuration, it is suitable for industrial automation and electrical system monitoring applications. The relay mounts easily on DIN rails, allowing integration into standard control panels.
This model offers an adjustable time delay ranging from 0.1 to 10 seconds, enabling precise customization of response times according to operational requirements. It effectively monitors critical parameters such as phase asymmetry, phase failure, and phase sequence, providing essential protection against electrical irregularities that can damage equipment or disrupt processes.
The relay supports a wide voltage sensing range of 183 to 528 V AC and operates reliably within a temperature range of -20°C to 50°C. Its screw terminal connections ensure secure wiring, while compact dimensions (L 72 mm, W 17.5 mm, H 90 mm) facilitate installation in confined spaces.
Designed to handle a contact current of up to 5 A for both AC and DC circuits, and switching voltage up to 250V AC/DC, this relay is versatile for various control applications. Certified to meet CE, CSA, and UL safety standards, it ensures dependable performance in demanding industrial environments.
Typical applications include monitoring three-phase electrical supply lines, validating phase sequences, and protecting sensitive equipment from phase failures. The compact and robust design makes it suitable for use in industrial automation, manufacturing plants, electrical distribution systems, and HVAC controls.
Adjustable time delay from 0.1 to 10 seconds for customized operation. Monitors phase asymmetry, phase failure, and phase sequence for enhanced system protection. High voltage sensing capability up to 528 V AC. Compact and easy DIN rail mounting for space-efficient installation.
Durable screw terminal connections for reliable wiring. Operates safely within -20°C to 50°C ambient temperature. SPDT contact configuration rated for 5 A contact current. Compliant with CE, CSA, and UL safety standards.
Explore a comprehensive range of Schneider Electric relays and monitoring solutions at EnvMart for industrial and commercial control system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schneider Electric RM17TA00 monitoring relay has a voltage sensing range of 183 to 528 V AC.
This model features an adjustable time delay ranging from 0.1 to 10 seconds, allowing for flexible response timing.
It has a Single Pole Double Throw (SPDT) contact configuration, suitable for various control applications.
The relay is rated for a maximum contact current of 5 A for both AC and DC applications.
The dimensions of the RM17TA00 are 72 mm in length, 17.5 mm in width, and 90 mm in height.
It operates reliably within a temperature range of -20°C to 50°C.
This relay is designed for DIN rail mounting, facilitating easy installation in control panels.
The RM17TA00 is designed for 3-phase electrical systems.
It is certified to meet CE, CSA, and UL safety standards, ensuring compliance with industry regulations.
The relay supports a switching voltage of up to 250V AC/DC.
It features screw terminal connections, which provide secure wiring for electrical connections.
This monitoring relay is typically used for monitoring three-phase electrical supply lines, validating phase sequences, and protecting sensitive equipment from phase failures.
