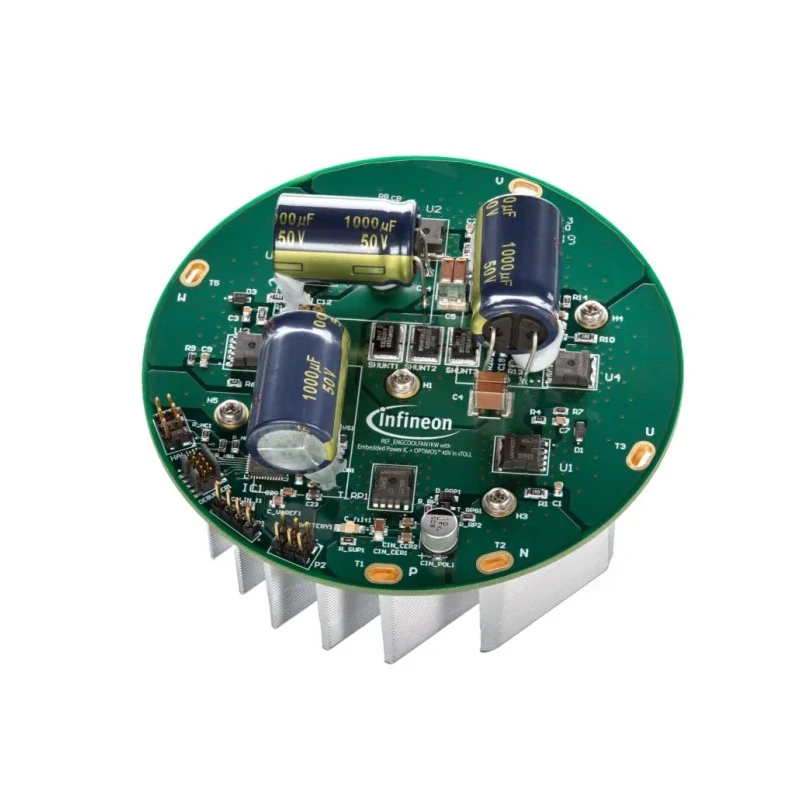

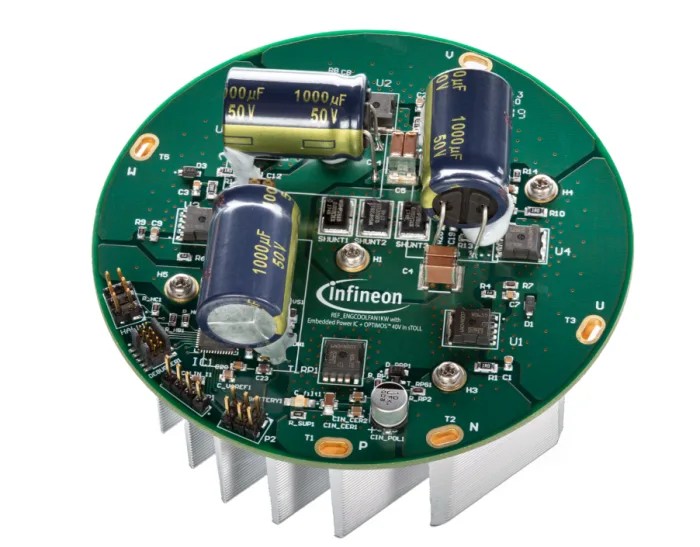

Infineon 3-Phase Motor Drive Development Board 1 kW Power for TLE9879QXW40 ENGCOOLFAN1KW

Infineon ENGCOOLFAN1KW 3-Phase Motor Drive Development Board is a new, high-performance tool designed for powering and controlling motors in automotive engine cooling fan applications, featuring a power rating up to 1 kW at a 12 V battery voltage. This advanced development board utilises the OptiMOS -6™ technology combined with the TLE9879QXW40 embedded IC, delivering efficient three-phase motor drive capabilities while maintaining a compact PCB footprint.

The board's design enhances thermal performance through effective heat dissipation and optimised component placement, ensuring reliable operation under challenging thermal conditions typically found in automotive environments. It employs standard PCB materials to facilitate ease of development and manufacturing.

EMC compliance is achieved through testing to CISPR25 standards, providing assurance for electromagnetic compatibility in rigorous automotive and industrial settings. The development board supports various control schemes, including both sensor-based and sensor-less motor algorithms, making it adaptable for diverse applications including radiator fans and 1 kW BLDC motors used in robotics and power management systems.

Engineers benefit from comprehensive documentation that covers electrical design considerations, layout guidelines, and thermal management strategies. This enables efficient design iteration and system integration when using the REF-ENGCOOLFAN1KW kit.

Supports driving loads up to 1 kW at a 12 V battery voltage. Utilises OptiMOS -6™ technology and TLE9879QXW40 embedded IC for advanced motor control. Compact design minimises PCB space requirements for easy integration. Enhanced thermal performance ensures reliable operation in demanding environments.

Standard PCB materials enable straightforward development and production. EMC tested according to CISPR25 standards for electromagnetic compatibility. Ideal for radiator fan and various 1 kW BLDC motor applications. Offers flexible motor control with sensor-based and sensor-less options.

Includes comprehensive documentation for layout, thermal management, and electrical design. Suited for automotive, robotics, and power management design experimentation.

This product is manufactured in Germany and is ideal for use in automotive, laboratory, construction, robotics, and other industrial applications requiring efficient and reliable motor drive solutions. Explore more products in the Motors category at EnvMart for your development and production needs.
