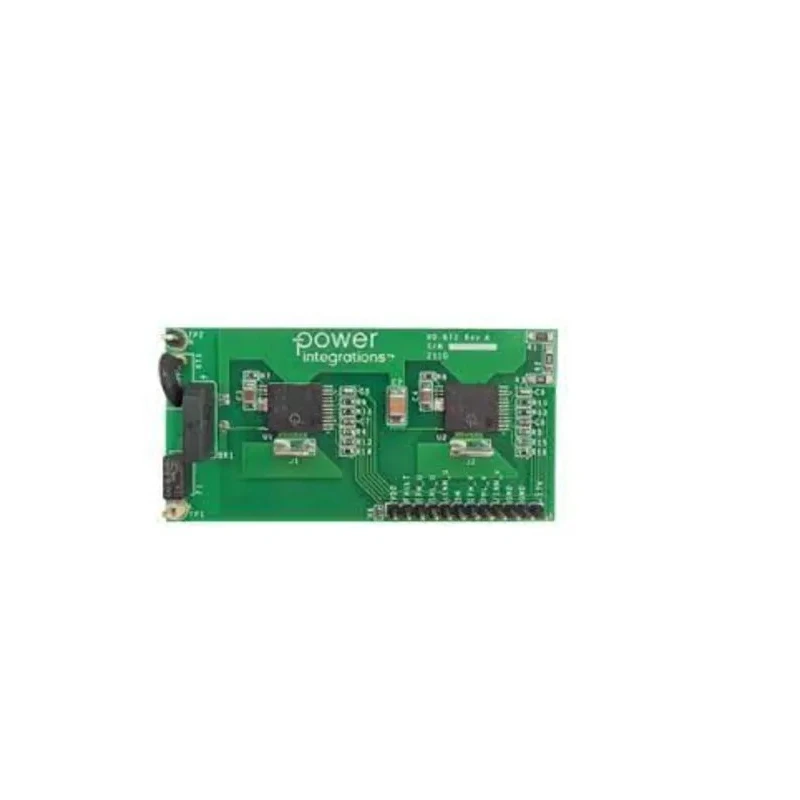

Power Integrations Development Board for BRD1261C High Voltage Single-Phase Brushless DC Motor Fan Application RDK-872
Specifications
| Country of Origin | India |
|---|---|
| Brand | Power Integrations |
| Model | RDK-872 |
| For Use With | High Voltage Single-Phase Brushless DC Motor for Fan Application |
| Kit Classification | Reference Design |
| Featured Device | BRD1261C |
| Kit Name | RDK-872 |
Key Features
- The board supports low-side external bias operation for reduced no-load input power consumption.
- Integrated with 600 V FREDFETs equipped with ultra-soft, fast recovery diodes for high efficiency.
- Utilizes the BRD1261C bridge switch for optimized performance.
- Delivers inverter efficiency up to 97% employing block commutation schemes.
- Operates fully self-biased without requiring auxiliary power supply.
- Provides instantaneous phase current information output on each bridge switch device.
Product Description
Power Integrations RDK-872 is a development board serving as a reference design for single-phase inverters specialized in high-voltage brushless DC motor (BLDC) applications, particularly fans. It incorporates the BRD1261C bridge switch and integrates 600 V FREDFETs with ultra-soft, fast recovery diodes, ensuring durability and efficiency.
This board supports low-side external bias operation which significantly reduces the no-load power consumption, enhancing overall power efficiency in applications. The inverter achieves efficiency levels up to 97% using a block commutation control scheme, making it ideal for reliable fan motor drive solutions.
Designed to operate fully self-biased, it eliminates the need for any additional auxiliary power supply, simplifying system architecture and reducing component count. The device features instantaneous phase current information output for precise control over each bridge switch element, enabling enhanced system diagnostics and performance monitoring.
The RDK-872 development kit is classified as a reference design ideal for electronic engineers working on motor and robotics development tools, focusing on high voltage single-phase BLDC motors for fan applications. This product supports industrial, HVAC, manufacturing, and research and development sectors requiring efficient, reliable motor control solutions.
The board supports low-side external bias operation for reduced no-load input power consumption. Integrated with 600 V FREDFETs equipped with ultra-soft, fast recovery diodes for high efficiency. Utilizes the BRD1261C bridge switch for optimized performance.
Delivers inverter efficiency up to 97% employing block commutation schemes. Operates fully self-biased without requiring auxiliary power supply. Provides instantaneous phase current information output on each bridge switch device.
Explore our extensive catalog of power and motor development tools on EnvMart for advanced electronics projects and commercial products.
Explore more products in our Other Motors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RDK-872 development board delivers inverter efficiency levels up to 97% using block commutation schemes.
This board is designed for high voltage single-phase brushless DC motors, specifically for fan applications.
No, the RDK-872 operates fully self-biased without requiring any auxiliary power supply, simplifying the system architecture.
The BRD1261C bridge switch is utilized in the RDK-872 for optimized performance in controlling the motor.
Key features include support for low-side external bias operation, integrated 600 V FREDFETs with ultra-soft, fast recovery diodes, and instantaneous phase current information output.
The RDK-872 development board is manufactured in India.
It is suitable for industrial, HVAC, manufacturing, and research and development sectors requiring efficient motor control solutions.
The board provides instantaneous phase current information output for precise control and performance monitoring of each bridge switch element.
The RDK-872 is classified as a reference design kit, ideal for electronic engineers working on motor and robotics development tools.
Low-side external bias operation reduces no-load input power consumption, enhancing overall power efficiency in applications.
The board integrates 600 V FREDFETs equipped with ultra-soft, fast recovery diodes to ensure high efficiency in operation.
The model name of this development board is RDK-872.
