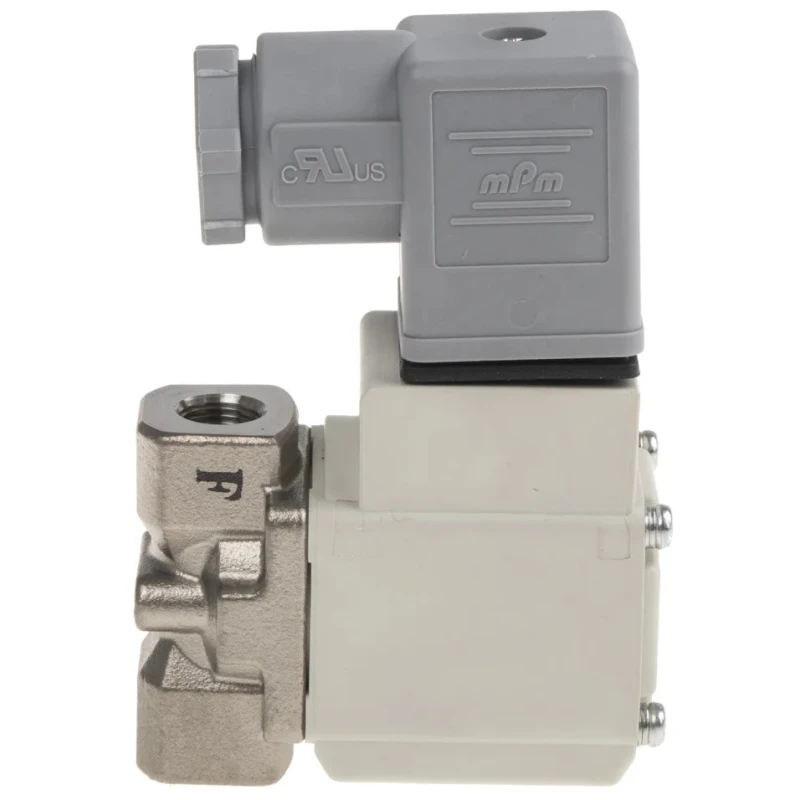

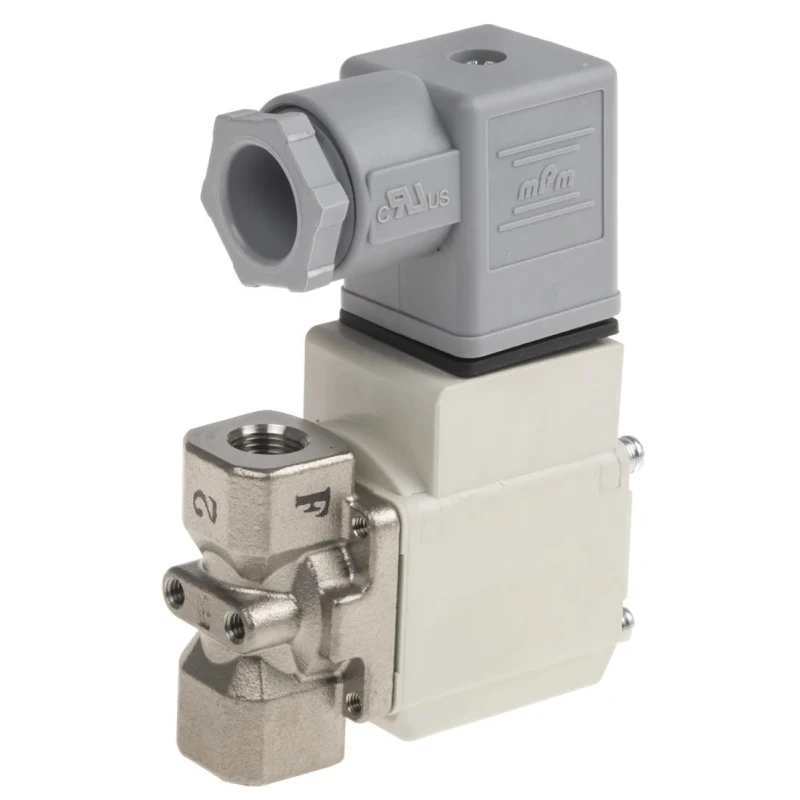

SMC Pneumatic 2/2 Solenoid/Spring Valve G 1/8 Threaded Port Stainless Steel Body 24V dc VX212HGKXB

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic 2/2 Solenoid/Spring Valve G 1/8 Threaded Port Stainless Steel Body 24V dc VX212HGKXB



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Stainless Steel
Maximum Operating Pressure	1 Mpa
Height	53.5mm
Length	84.5mm
Model	VX212HGKXB
Width	30mm
Mount Type	Bracket
Series	VX
Number Of Ports	2
Maximum Operating Temperature	60°C
Port Type	Threaded
Number of Positions	2
Port Size	1/8 in
Seal Material	Fluorelastomer
Minimum Operating Temperature	-20°C
Actuation Type	Solenoid/Spring
Maximum Flow Rate	424.7L/min
Standards/Approvals	CE, cULus, RoHS
Connection Thread Standard	G 1/8
Valve Function	2/2
Electrical Connection Type	DIN Connector
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	4.5W

Key Features

Operates at 24V dc voltage with 4.5W solenoid power consumption.
Designed for two-port valve function with a maximum flow rate of 424.7 L/min.
Suitable for operating pressures up to 1 Mpa and temperatures from -20°C to 60°C.
Features a fluor elastomer seal and a stainless steel body for durability.

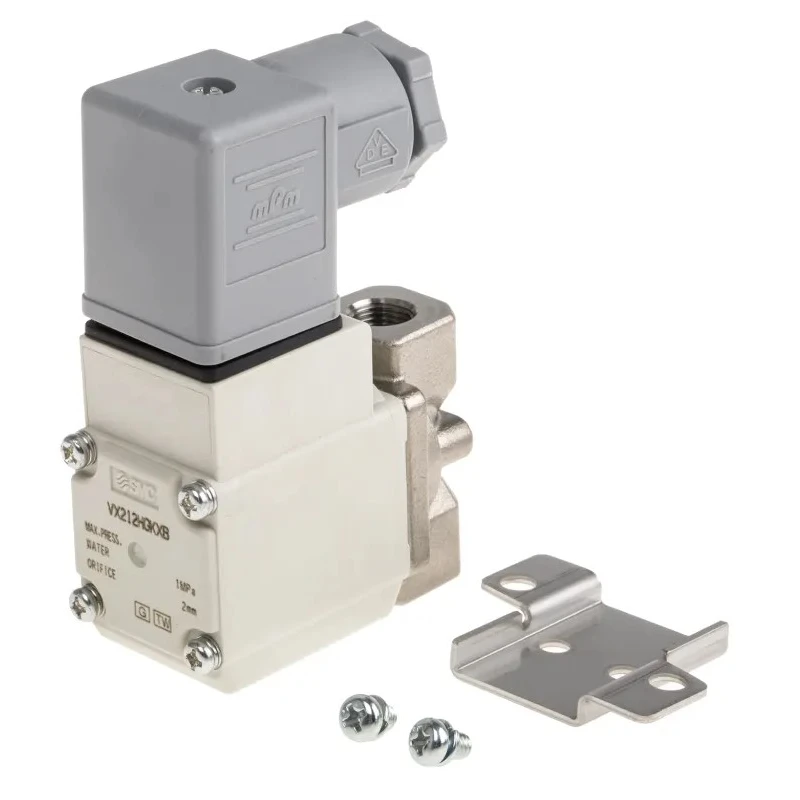

Includes a bracket mount and DIN electrical connector for secure installation.
Complies with CE, cULus, and RoHS standards for quality assurance.

Product Description

SMC VX212HGKXB Pneumatic Solenoid Valve is a robust 2/2 valve designed for precise fluid control in industrial and pneumatic applications. Operating on a 24V dc power supply, this valve features a stainless steel body with a G 1/8 threaded connection port and is actuated by a solenoid/spring mechanism for reliable switching.

The valve supports a maximum operating pressure of 1 Mpa and can function efficiently within a temperature range of -20°C to 60°C, making it suitable for a wide range of environments. Its fluor elastomer seals ensure tight closure and long-lasting operation, while the valve's compact dimensions (84.5mm length, 53.5mm height, and 30mm width) allow easy integration in limited spaces.

With a maximum flow rate of 424.7 L/min, the valve provides improved flow compared to conventional models. Its bracket mounting and DIN connector style facilitate straightforward installation and maintenance. This valve meets CE, cULus, and RoHS certifications, guaranteeing compliance with international quality and safety regulations.

Operates on 24V dc voltage with 4.5W solenoid power consumption. Two-port valve function suitable for air, vacuum, water, and oil media. Corrosion-resistant stainless steel body designed for durability. Compact design with mounting bracket and secure DIN connector.

Wide operating temperature and pressure range for versatile industrial use. Compliant with CE, cULus, and RoHS standards.

This SMC VX Series valve is ideal for industrial automation, pneumatic systems, and fluid power control applications in manufacturing, HVAC, and water treatment sectors. It offers enhanced flow efficiency and quieter operation, contributing to improved industrial productivity.

Explore more high-quality pneumatic valves and accessories on EnvMart for reliable and precise fluid control solutions.
