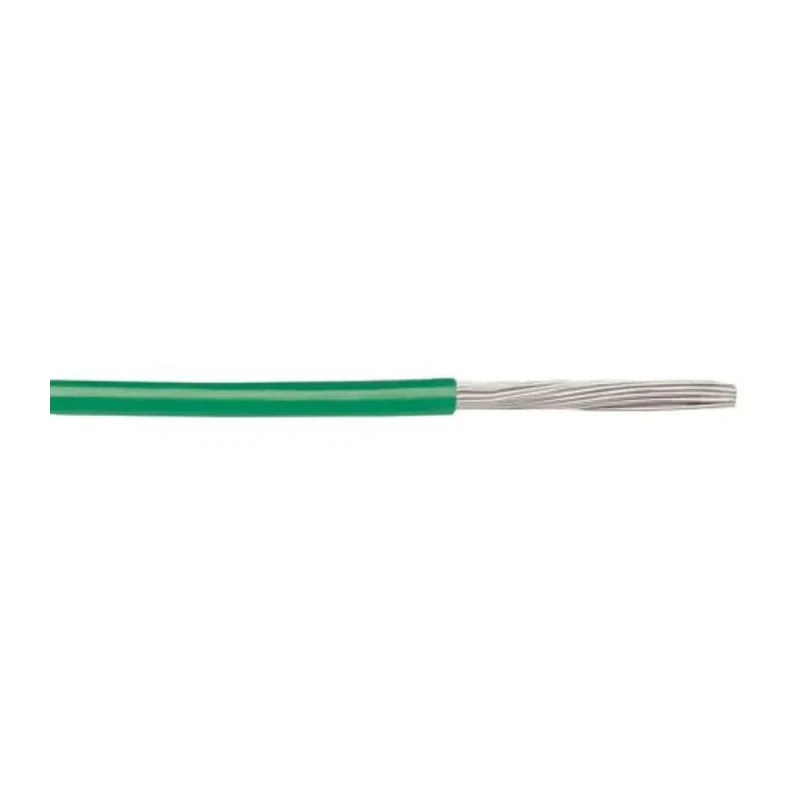

Alpha Wire Hook Up Wire PVC Series Green 0.13 mm², 26 AWG, 7/0.16 mm Core Strands, 30 m Length, Polyvinyl 7053 GR005

Free Delivery in India | Lowest Global Shipping Charges

Alpha Wire Hook Up Wire PVC Series Green 0.13 mm², 26 AWG, 7/0.16 mm Core Strands, 30 m Length, Polyvinyl 7053 GR005

Name: Alpha Wire Hook Up Wire PVC Series Green 0.13 mm², 26 AWG, 7/0.16 mm Core Strands, 30 m Length, Polyvinyl 7053 GR005
Brand: ALPHA WIRE
SKU: 393946
Price: 48.54 USD
Availability: InStock



Category Hook Up Wire Brand ALPHA WIRE Condition New

Specifications

Country of Origin	India
Voltage	150V
Brand	Alpha Wire
CROSS SECTIONAL AREA	0.13mm²
Model	7053 GR005
Cable Length	30m
Series	Hookup Wire PVC
Outside diameter	0.99mm
Maximum Operating Temperature	105°C
Conductor Material	Copper
Cable Type	Hookup
Minimum Operating Temperature	-55°C
Jacket Material	Polyvinyl Chloride
Standards/Approvals	CSA International AWM I A/B, FT1, Military MIL-W-16878E TYPE B, UL AWM/STYLE 1429
Jacket Colour	Green
Fire Behaviour	FT1
American Wire Gauge	26AWG
Number of Strands	7
Core Strands	7 x 0.16mm
Size of Strands	0.16mm

Key Features

The wire cross sectional area is 0.13 mm² with 26 AWG size.
Constructed with 7 copper strands of 0.16 mm core diameter for flexibility and durability.
The cable length is 30 meters with an outside diameter of 0.99 mm.
The jacket material is polyvinyl chloride offering abrasion resistance and soldering iron heat resistance.
Rated for 150V voltage and can operate between -55°C to 105°C temperatures.
Meets CSA International AWM I A/B, FT1, Military MIL-W-16878E TYPE B, and UL AWM/STYLE 1429 standards.
Color-coded green insulation allows easy circuit identification.
Suitable for demanding industrial and military electronics applications.

Product Description

Alpha Wire 7053 GR005 Hook Up Wire PVC Series Green 0.13 mm² is an industrial-grade, stranded copper conductor wire insulated with irradiated PVC, providing excellent resistance to soldering iron heat and abrasive environments. This wire features a green color-coded polyvinyl chloride jacket for easy circuit identification and protection against corrosive elements.

The wire has a cross sectional area of 0.13 mm² and consists of 7 strands, each 0.16 mm in diameter, totaling 26 AWG size. It provides a cable length of 30 meters with an outer diameter of 0.99 mm, suitable for demanding low voltage and low current wiring applications within enclosed electronic equipment and control cabinets.

This hook up wire is rated for operation at voltages up to 150V and temperatures ranging from -55°C to a maximum of 105°C, making it ideal for use in high temperature ovens, off-road construction equipment, transformers, switchboards, and military devices. Compliance with CSA International AWM I A/B, FT1, Military MIL-W-16878E TYPE B, and UL AWM/STYLE 1429 standards ensures safety and reliability in industrial and military environments.

The irradiated PVC insulation contributes to excellent uniformity, low fraying, and easy handling, stripping, and termination. Its abrasion resistance and fire behaviour rating of FT1 further enhance its suitability for protective environments.

Stranded tinned copper conductor for reliable conductivity. Irradiated PVC insulation with excellent heat and abrasion resistance. Color-coded green insulation for easy circuit tracking. Meets stringent military, UL, and CSA approvals.

Suitable for applications including control cabinets, machine tools, transformers, and military electronics. Rated for 150V and temperatures from -55°C to 105°C. Wire length of 30 meters and 0.99 mm outside diameter. 7 strands of 0.16 mm diameter composing 26 AWG size.

This Alpha Wire Hook Up Wire provides dependable performance in industrial, laboratory, electronic manufacturing, HVAC, and military use cases. Explore more options for wires and cables in the Electronics & Electricals category on EnvMart.
