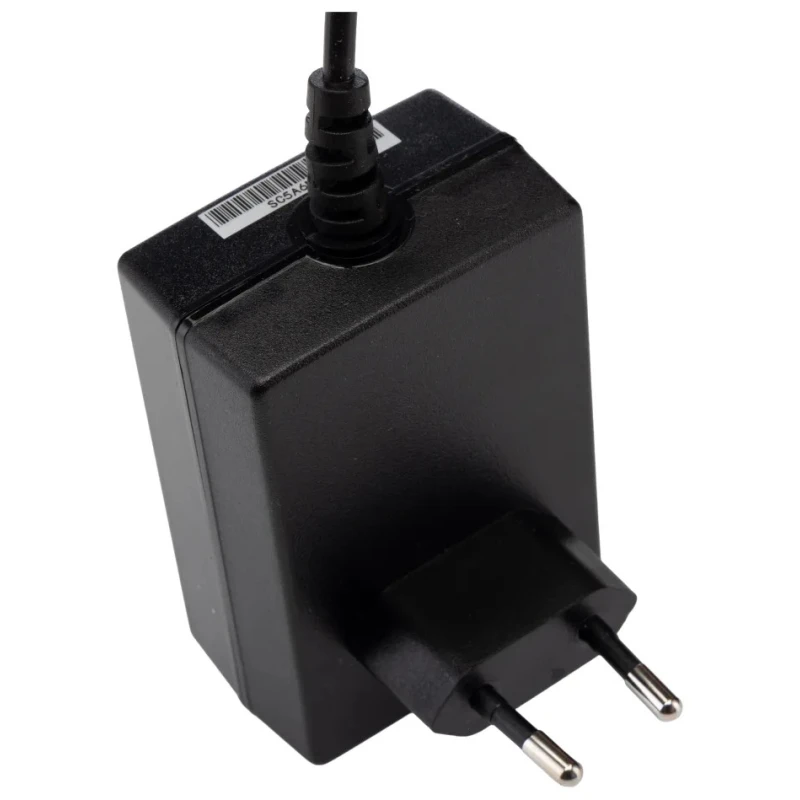

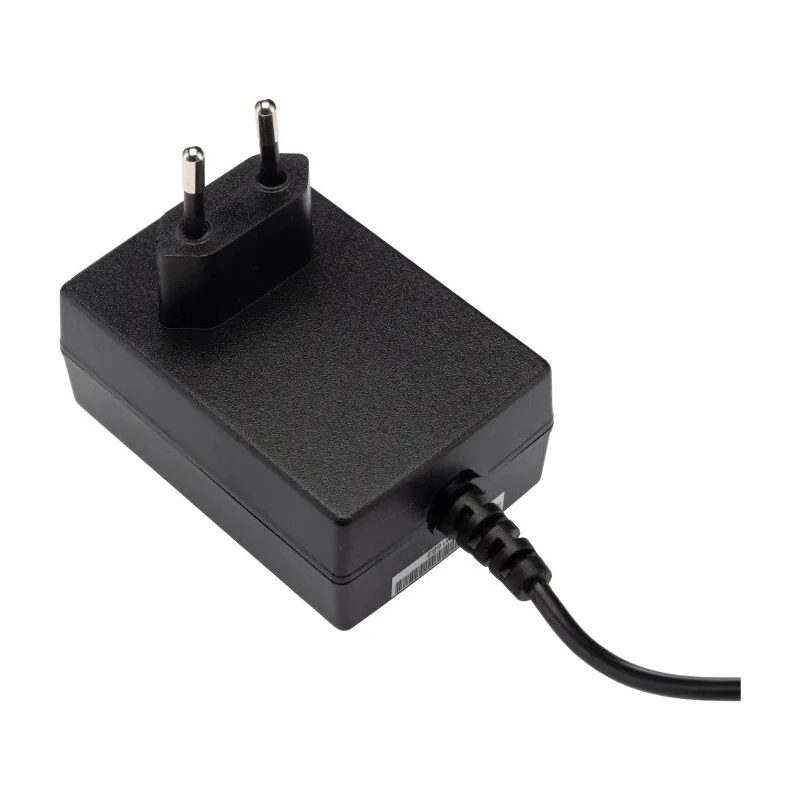

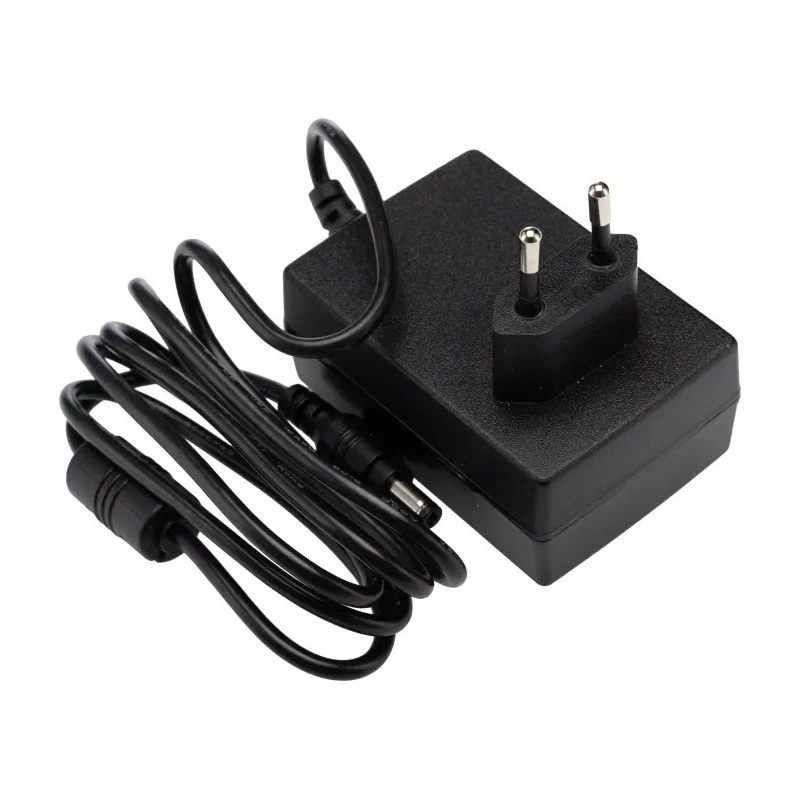

MEAN WELL AC/DC Adapter Type C 264V AC Input, 5V DC Output 3A GSM18E05-P1J

MEAN WELL GSM18E05-P1J AC/DC Adapter is engineered for medical and energy-saving applications, offering a universal AC input ranging from 100V to 264V and a stabilized 5V DC output capable of delivering up to 3A current. This power supply complies with international medical safety regulations including CE, IEC 60950-1, and UL 60950-1, making it suitable for patient contact and portable medical equipment.

The adapter features a Type C 2-pin Euro plug with a 1.2-meter cable length, enclosed within a UL 94V-0 rated plastic case that ensures Class II insulation. It maintains low leakage current below 50 μA and power consumption less than 0.1W when no load is applied, fulfilling energy efficiency standards like ErP step 2 and EISA 2007.

Its robust design includes protections against short circuit, overload, and over voltage conditions, supporting reliable operation up to an ambient temperature of 60°C. The GSM18 series has earned TUV, CB, and CE certifications, ensuring safety and compliance for various electrical systems in hospital, home healthcare, and other critical environments.

This AC/DC adapter is ideal for industrial, medical, laboratory, and commercial applications requiring dependable low-voltage DC power with strict safety requirements. Its versatile input voltage range allows global compatibility without additional converters.

Complies with international medical safety standards and level V energy saving regulations. Equipped with a Type C 2-pin Euro plug. Low leakage current below 50 μA and no load power consumption under 0.1W. UL 94V-0 rated plastic enclosure provides Class II insulation.

Short circuit, overload, and over voltage protection included. Input voltage range: 100V AC to 264V AC. Maximum operating temperature of 60°C. 1.2 meter cable length for flexible connectivity. Explore more quality AC/DC Adapters and power supplies for your industrial and medical equipment needs on EnvMart.
