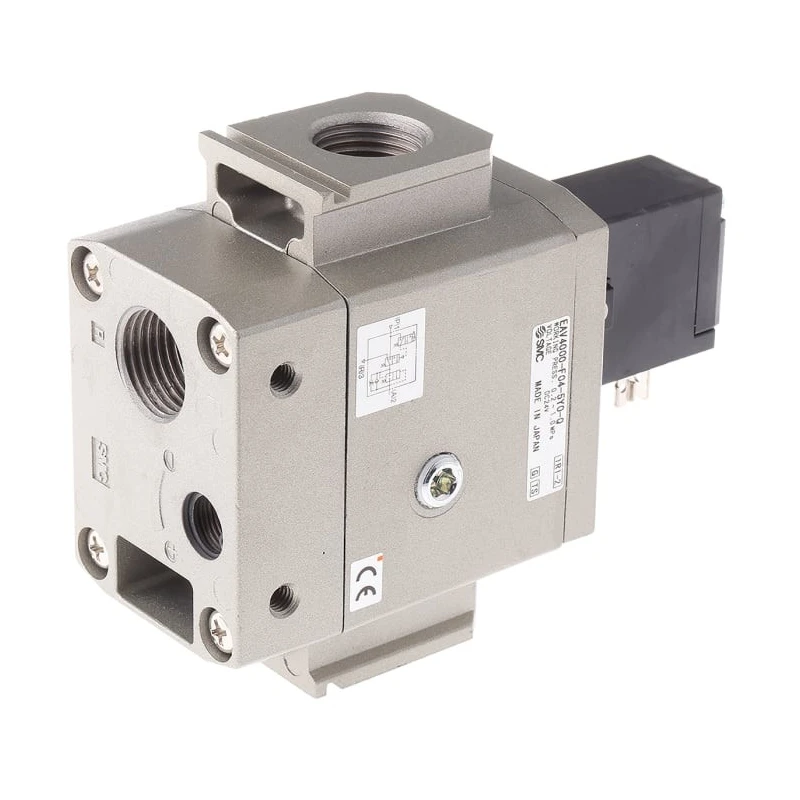

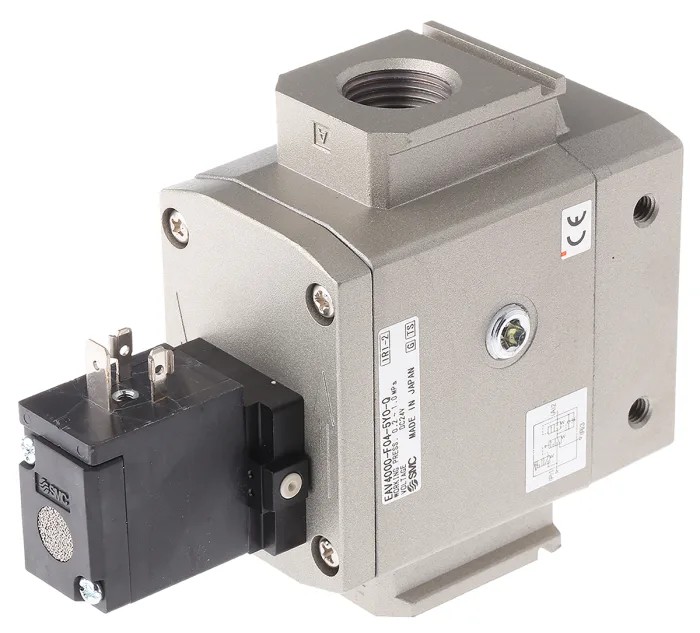

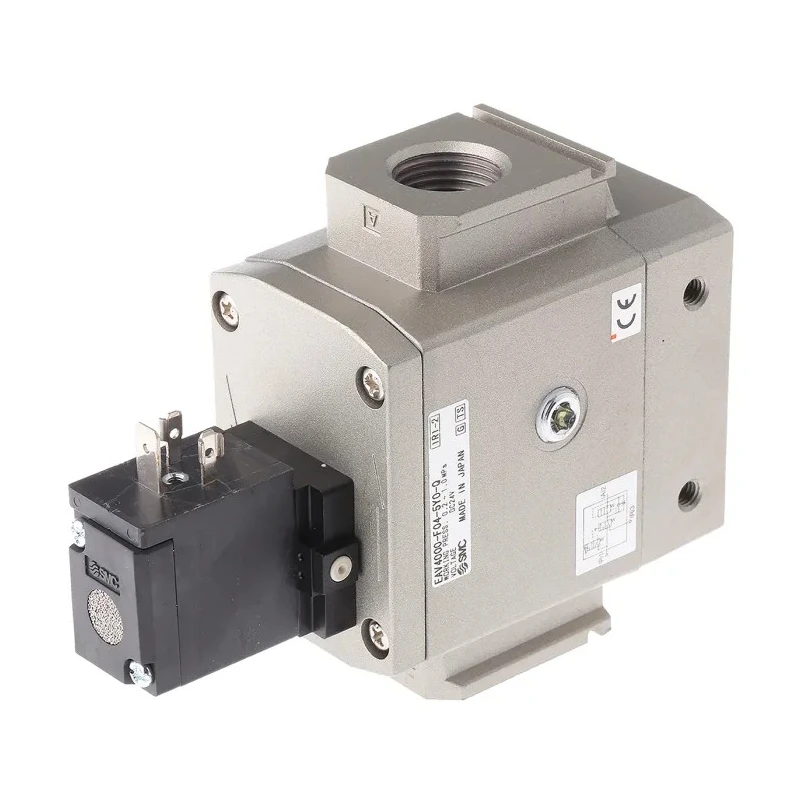

SMC Pneumatic Soft Start Up Solenoid Valve G 1/2 Inch Port Size 24V DC 1.8W Power EAV4000

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Soft Start Up Solenoid Valve G 1/2 Inch Port Size 24V DC 1.8W Power EAV4000



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	1 Mpa
Model	EAV4000
Mount Type	Stand Alone
Series	EAV4000
Number Of Ports	3
Maximum Operating Temperature	60°C
Port Size	1/2 in
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	0°C
Actuation Type	Solenoid
Maximum Flow Rate	3321L/min
Standards/Approvals	RoHS
Connection Thread Standard	G
Minimum Pilot Pressure	0.2MPa
Valve Function	Soft Start Up
Electrical Connection Type	DIN Connector
Solenoid Power Consumption	1.8W
SMC Pneumatic Control Valve - G 1/2 EAV4000 Series 24V dcBrand	SMC

Key Features

Operates with 24V DC coil consuming only 1.8W power.
Features 3 ports with 1/2 inch G-thread connections.
Die-cast aluminium body ensures durable mechanical wear resistance.
Nitrile Rubber (NBR) seals compatible with compressed air.
Maximum operating pressure of 1 MPa with a flow rate up to 3321 L/min.
Supports operating temperatures from 0 to 60°C for versatile industrial applications.
Designed for standalone mounting with type Y DIN electrical connector.
Includes a non-locking push-style manual override for temporary manual actuation.

Product Description

SMC EAV4000-F04-5YO-Q Pneumatic Soft Start Up Solenoid Valve is engineered for smooth startup in pneumatic systems, enabling gradual air pressurisation to safeguard equipment and improve system reliability. This valve supports operational pressure range from 0.2 MPa up to a maximum working pressure of 1 MPa and a media temperature range of 0 to 60 degrees Celsius.

The valve features a die-cast aluminium body providing robustness against wear and mechanical stress, while nitrile rubber (NBR) seals ensure compatibility with compressed air environments. Its three-port configuration, combined with 1/2 inch G-threaded pneumatic connections, facilitates controlled air routing in complex pneumatic rigs.

The DIN type Y terminal connection provides easy wiring options and supports alternative connector types including grommet or type D DIN connectors.

A non-locking flush manual override permits temporary manual actuation when necessary, and the coil tolerates voltage fluctuations from -15% to +10% of rated voltage, ensuring consistent performance in variable supply conditions. The valve has been proof-tested to a safety margin of 1.5 MPa, exceeding maximum operational pressure for enhanced reliability.

This valve is suitable for industrial pneumatic applications such as sequencing cylinders, gradual manifold pressurisation, and use with high-flow actuators. Its robust design and proven standards like RoHS certification make it ideal for demanding environments.

Operates with 24V DC coil consuming only 1.8W power. Features 3 ports with 1/2 inch G-thread connections. Die-cast aluminium body ensures durable mechanical wear resistance. Nitrile Rubber (NBR) seals compatible with compressed air.

Maximum operating pressure of 1 MPa with a flow rate up to 3321 L/min. Supports operating temperatures from 0 to 60°C for versatile industrial applications. Designed for standalone mounting with type Y DIN electrical connector.

Includes a non-locking push-style manual override for temporary manual actuation.
