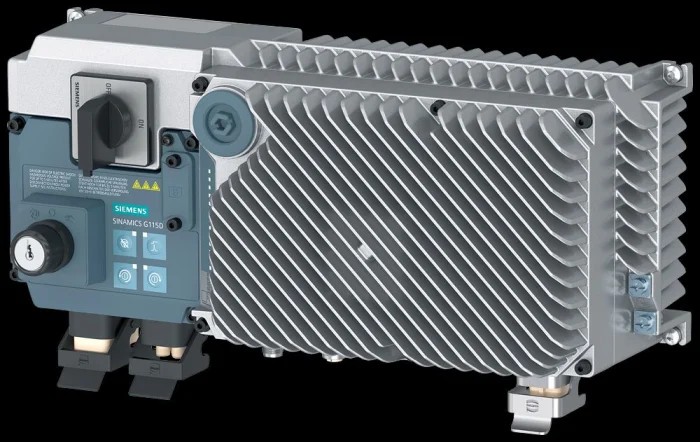

Siemens SINAMICS G115D Wall-Mounted AC Inverter Drive 380-480V 6.2A 6SL3520-1XM01-1AA0
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Siemens |
| Height | 216mm |
| Length | 129mm |
| Model | 6SL3520-1XM01-1AA0 |
| Width | 380mm |
| Mount Type | Wall |
| Series | SINAMICS G115D |
| Input Type | AC |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -30°C |
| Standards/Approvals | CE, C-Tick RCM, cUL, EAC, EMC 2014/30/EC, KCC, Low-Voltage 2014/35/EC, REACH, SEMI F47, UL |
| Maximum Supply Voltage | 480V |
| Minimum Supply Voltage | 380V |
| Maximum High Level Output Current | 6.2A |
| Maximum Low Level Output Current | 3.1A |
Key Features
- Features easy installation and modular design for versatile industrial applications.
- Supports three-phase asynchronous motors up to efficiency class IE3 and synchronous reluctance motors up to IE4.
- Wall mount type that eliminates the need for control cabinets, optimizing space and cooling.
- Wide operating temperature from -30°C to 55°C ensures reliable performance in diverse environments.
- Complies with multiple international standards, guaranteeing safety and quality.
- Compact dimensions measuring 380 mm width, 216 mm height, and 129 mm length.
- Includes approvals such as CE, UL, cUL, and others relevant to global markets.
- Ideal for applications in industrial automation, manufacturing, HVAC systems, and water treatment.
Product Description
Siemens 6SL3520-1XM01-1AA0 inverter drive, part of the SINAMICS G115D series, is a high-performance wall-mounted AC inverter drive designed for motor control applications across various industries. Rated for AC input voltages from 380 to 480V, it delivers a maximum high-level output current of 6.2A and supports asynchronous motors with efficiency class up to IE3 as well as high-efficiency synchronous reluctance motors up to IE4.
The product features a modular and user-friendly design enabling quick installation and commissioning without the need for control cabinets. This wall-mounted format reduces installation space, lowers cooling requirements, and minimizes power losses due to shorter cable runs.
Operating reliably in harsh environments, its temperature range extends from -30°C to 55°C, making it suitable for industrial automation, manufacturing processes, HVAC systems, and water treatment plants. The inverter drive supports the globally recognized SIMOGEAR geared motors for versatile use independent of line voltage variations.
The compact dimensions (380mm width, 216mm height, 129mm length) make it adaptable to various installation configurations. Included certifications cover CE, C-Tick RCM, cUL, EAC, EMC 2014/30/EC, KCC, Low-Voltage 2014/35/EC, REACH, SEMI F47, and UL standards, ensuring compliance with international safety and environmental regulations.
Easy and flexible installation with modular construction. Ready-to-connect solution providing dependable motor performance. Wide input voltage and current ratings to accommodate varied industrial needs. Reliable operation in extreme temperatures and demanding applications.
Compact size permits integration in constrained spaces. International standards and approvals ensure market compatibility. Supports both asynchronous and synchronous motor technology. Reduced power losses and interference due to installation on the machine.
Siemens Inverter Drives are ideal for industrial automation, manufacturing, HVAC, water treatment, and other commercial applications requiring precise motor speed and torque control. Explore more Siemens products and advanced control equipment on EnvMart for your technical and engineering requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with an input voltage range of 380 to 480V.
The maximum high-level output current is rated at 6.2A.
It has compact dimensions of 380 mm in width, 216 mm in height, and 129 mm in length.
The inverter drive operates reliably within a temperature range from -30°C to 55°C.
It supports three-phase asynchronous motors up to efficiency class IE3 and synchronous reluctance motors up to IE4.
This model includes certifications such as CE, cUL, UL, and others relevant to international standards.
It is designed for wall mounting, eliminating the need for control cabinets.
The modular design allows for easy installation and commissioning, optimizing space and cooling requirements.
It is ideal for applications in industrial automation, manufacturing, HVAC systems, and water treatment.
The minimum operating temperature is -30°C.
It complies with multiple international standards, including EMC 2014/30/EC and Low-Voltage 2014/35/EC.
The maximum low-level output current is rated at 3.1A.
