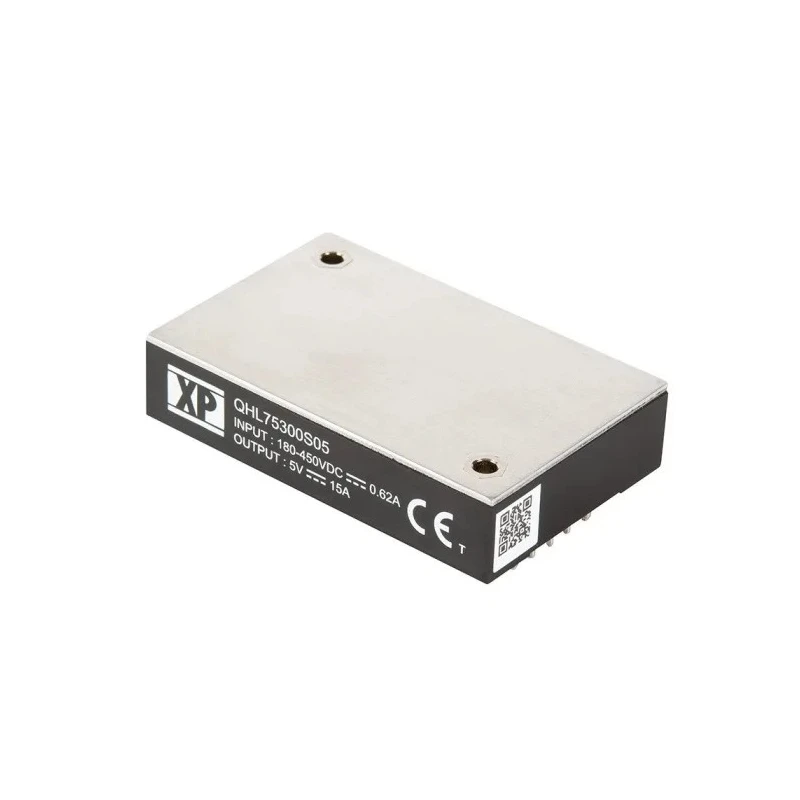

XP Power QHL75 DC/DC Converter 5V DC 15A 450V DC Input 180V Input 3W Through Hole 105°C Max Temp

Free Delivery in India | Lowest Global Shipping Charges

XP Power QHL75 DC/DC Converter 5V DC 15A 450V DC Input 180V Input 3W Through Hole 105°C Max Temp

Name: XP Power QHL75 DC/DC Converter 5V DC 15A 450V DC Input 180V Input 3W Through Hole 105°C Max Temp
Brand: XP Power
SKU: 391774
Price: 234.99 USD
Availability: InStock



Category DC/DC Converter Brand XP Power Condition New

Specifications

Country of Origin	Taiwan
Voltage	Converters / DC-DC Converters XP Power QHL75 DC/DC Converter, 5V dc/ 15 A, 450V
Brand	XP Power
Efficiency	82%
Length	57.9mm
Model	QHL75
Depth	12.7mm
Gross Weight	65g
Width	36.8mm
Mount Type	Through Hole
Series	QHL75
Maximum Operating Temperature	105°C
Package Type	Quarter Brick
Minimum Operating Temperature	-40°C
Number of outputs	1
Ripple and Noise	100mV Pk-Pk
Maximum Output Power	3W
Maximum Input Voltage	450V dc
Minimum Input Voltage	180V
Number of Pins	8
Output Voltage 1	5V dc
Output Current 1	15A
Isolation Voltage	3kV

Key Features

Compact 3W power rating ensures efficient energy management.
Supports a wide input voltage range from 180V to 450V DC.
Industry standard quarter brick form factor provides mounting flexibility.
Reinforced isolation voltage of 3kV enhances safety and reliability.
Operates over a wide temperature range from -40°C to 105°C.
Includes protection features for overcurrent, overvoltage, and overtemperature conditions.
Efficiency rating of 82% improves energy savings.
Ripple and noise level is low at 100mV peak-to-peak, suitable for sensitive electronics.

Product Description

XP Power QHL75 DC/DC Converter model QHL75300S05 is an industrial-grade power module engineered to deliver a regulated 5V DC output at 15A current. The converter supports a wide input voltage range of 180V to 450V DC, making it suitable for various distributed power systems including AC front ends, power factor correction front ends, and battery systems.

Its quarter brick through-hole package offers compactness and ease of mounting, while the reinforced insulation delivers a high isolation voltage rating of 3kV to ensure operational safety. The module features a baseplate cooled design, allowing for effective conduction cooling to optimize thermal management.

The QHL75 series is constructed to withstand harsh industrial environments, with an extended operating temperature range spanning from -40°C minimum to 105°C maximum. Protection circuits guard against short circuits, overvoltage, and overheating, thus enhancing system durability and reliability.

Performance efficiency reaches up to 82%, contributing to energy-efficient power conversion. The output voltage can be trimmed ±20% to meet specific system requirements, and ripple and noise levels are minimized to 100mV peak-to-peak for sensitive electronic components.

Typical applications include industrial power supply designs, telecommunications, and other commercial electronic systems requiring stable DC/DC conversion with high input voltage capability and robust protection features.

Compact quarter brick through-hole package. Wide input voltage range: 180V to 450V DC. Regulated 5V output at 15A current. High isolation voltage of 3kV with reinforced insulation. Robust operating temperature range from -40°C to 105°C.

Overcurrent, overtemperature, and overvoltage protection. 82% efficiency for energy savings. Low ripple and noise of 100mV peak-to-peak. Baseplate cooled for enhanced thermal management. Suitable for industrial and commercial distributed power systems.

Explore more DC/DC Converters and power supply solutions at EnvMart for reliable and efficient industrial power management.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model provides a regulated output voltage of 5V DC with a maximum output current of 15A.

It supports a wide input voltage range from 180V to 450V DC.

The efficiency rating of this unit is 82%, contributing to energy savings during operation.

This converter has a reinforced isolation voltage of 3kV, enhancing safety and reliability.

It operates effectively over a temperature range from -40°C to 105°C.

The dimensions are 57.9mm in length, 36.8mm in width, and 12.7mm in depth.

This model features a through-hole mounting type, allowing for easy installation.

It includes protection against overcurrent, overvoltage, and overtemperature conditions.

The ripple and noise level is low at 100mV peak-to-peak, making it suitable for sensitive electronics.

The QHL75 utilizes a baseplate cooled design for effective conduction cooling, optimizing thermal management.

The maximum output power of this unit is 3W.

Typical applications include industrial power supply designs, telecommunications, and commercial electronic systems requiring stable DC/DC conversion.
